Lifeplan Audio Recording Protocol

Update firmware for LIFEPLAN recording regime

The LIFEPLAN firmware is designed for AudioMoth 1.1.X . It enables the AudioMoth to set the time in UTC using the AudioMoth chime app on a smartphone. It also encrypts all recordings for privacy protection: the encryption key will not be made available.

LIFEPLAN_Firmware_Update.pdf

• Download and install AudioMoth’s Flash app on your computer: https://www.openacousticdevices.info/applications

• Download the unencrypted firmware: https://github.com/OpenAcousticDevices/AudioMoth-LIFEPLAN/releases/download/0.1.5/AudioMoth-LIFEPLAN-0.1.5.bin

• Open the Flash app on the computer, connect the AudioMoth to the computer with the USB cable

• Select “Use local file” in the flash app.

• Click on “Select file” and choose the Lifeplan firmware “ audiomoth_lifeplan_0.1.5.bin ” then click on "Flash AudioMoth"

• Once the AudioMoth is flashed, the textbox should say “ audiomoth lifeplan (0.1.5) ” is installed.

• Once the process is complete, disconnect the USB cable, then remove and reinsert batteries before use. A newly flashed AudioMoth must have its power cycled before use.

• Label your three or five AudioMoths with distinct names.

• Mark one of the AudioMoths with a coloured-dot sticker and/or write the number 5 in the white square: this AudioMoth will go in the middle of the plot.

Prepare the 64 GB microSD cards

You will need two microSD cards for each AudioMoth (6 or 10 cards, depending on the site design; see step 5).

The AudioMoths have two configurations: one for the middle AudioMoth and one for the corner AudioMoths.

The middle AudioMoth will be programmed to record continuously at 48 kHz with a record/sleep cycle of 12 hours minus 5 seconds of recording followed by 5 seconds sleep for at least the first 48 hours and then revert to recording for 1 minute out of every 10 minutes for the remainder of the deployment.

Mark two cards with a coloured dot sticker, they will be used for the middle AudioMoth.

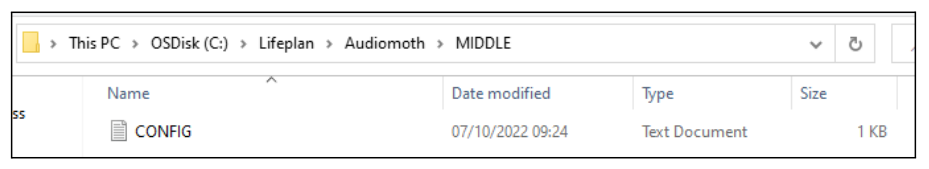

• Paste the following text in a text editor and save as CONFIG.txt in a folder named "MIDDLE"

MIDDLE This text is ignored.

{
    enableLED: 1,
    enableBatteryLevelDisplay: 1,
    enableProprietaryFileFormat: 1,
    initialSleepRecordCycles: 4,
    initialSleepRecordCycle: {
        sleepDuration: 5,
        recordDuration: 43195
    },
    sleepRecordCycle: {
        sleepDuration: 540,
        recordDuration: 60
    },
    standardSettings: {
        gain: 2,
        sampleRate: 48000
    },
    recordingPeriods: [
        {startMinutes: 0, stopMinutes: 1440}
    ]
}

Text here is also ignored.

<img src="https://static.yanyin.tech/literature_test/protocol_io_true/protocols.io.kqdg3xbp1g25/middle.png" alt="Save this CONFIG file into a folder named "MIDDLE"" loading="lazy" title="Save this CONFIG file into a folder named "MIDDLE""/>

• Copy the CONFIG.txt file to the two middle microSD cards.

The corner AudioMoths will be programmed to record for 1 minute every 10 minutes at 48 kHz to record birds. They make opportunistic recordings at 384 kHz between these recordings using an amplitude threshold and high-pass filter to record bats with a daily total file size limit of 1024MB and a maximum individual file duration of 3 minutes.

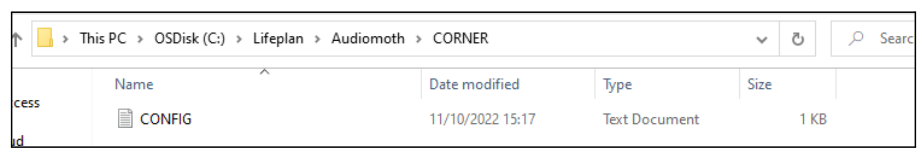

• Paste the following text in a text editor and save as CONFIG.txt in a folder named "CORNER"

CORNER Any text here is ignored.

{
    enableLED: 1,
    enableBatteryLevelDisplay: 1,
    enableProprietaryFileFormat: 1,
    sleepRecordCycle: {
        sleepDuration: 540,
        recordDuration: 60
    },
    standardSettings: {
        gain: 2,
        sampleRate: 48000
    },
    opportunisticSettings: {
        gain: 2,
        sampleRate: 384000,
        filter: {
            lowerFrequency: 48000,
            higherFrequency: 192000
        },
        amplitudeThreshold: 512,
        maximumDuration: 180,
        maximumTotalFileSize: 1024
    },
    recordingPeriods: [
        {startMinutes: 0, stopMinutes: 1440}
    ]
}

Text here is also ignored.

<img src="https://static.yanyin.tech/literature_test/protocol_io_true/protocols.io.kqdg3xbp1g25/corner.png" alt="Save this CONFIG file into a folder named "CORNER"" loading="lazy" title="Save this CONFIG file into a folder named "CORNER""/>

• Copy this CONFIG.txt file to the 4 or 8 corner microSD cards.

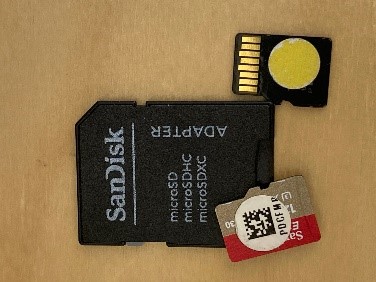

Label each microSD card with a unique code written on the card and rename the card with the same code.

• Take the microSD cards out of their adapters

• Label the microSD cards and their respective adapters with the same code

• Keep the adapters for transporting microSD cards to and from field; the microSD cards are small and easily lost, so it is advisable to transport them in a small box

Install the free AudioMoth app by Open Acoustic Devices on a smartphone; it is available on App Store and Play Store. The app is used to set the correct UTC time on the AudioMoths in the field by playing a chime.

Site design

The Lifeplan equipment is deployed within a 1 hectare plot. We aim for an accuracy of 10 meters.

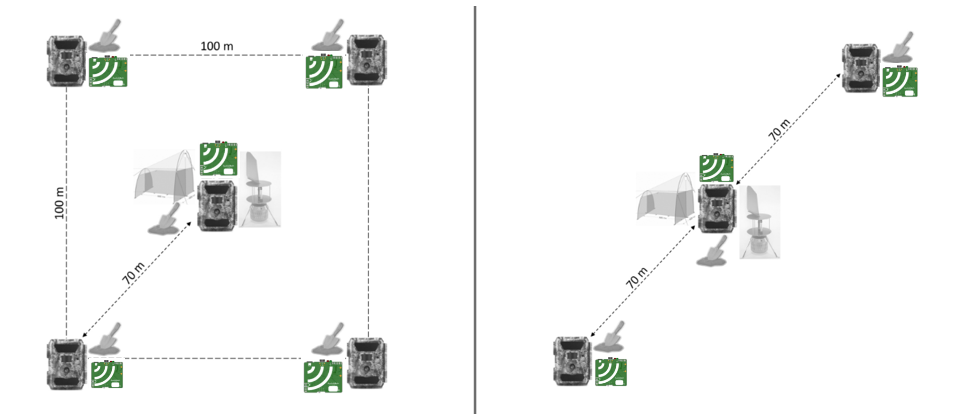

There are two design options to choose from depending on budget and site access. In Lifeplan, we started with Option 1 in 2021, and reduced to Option 2 in 2023 by removing two of the AudioMoths.

Option 1: Four AudioMoths are set at the four corners of the 1 hectare square, with a fifth AudioMoth in the centre.

Option 2: Three AudioMoths are set up diagonally within the plot, with about 70 metres between each trap and 140 metres in a straight line between the farthest traps.

Lifeplan Camera Trapping Protocol

Install waterproof cases

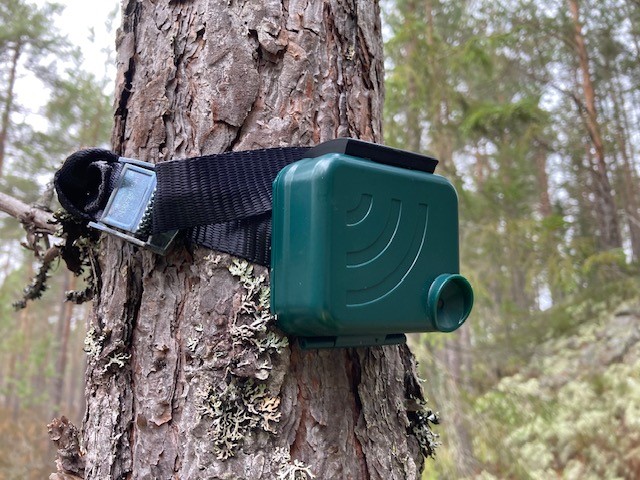

Attach the three or five waterproof cases to trees at a height between 1 and 2 meters. The case latch should face upwards if it is around a vertical tree trunk or the whole case should face downwards if it is attached to a horizontal branch to avoid rainwater penetration through the microphone membrane.

We aim for an accuracy of about 10 metres. If there are no trees, put up sturdy posts where the cases can be mounted at about 1 or 2 m height.

Record a GPS point for each AudioMoth and associate the point with the AudioMoth ID. The GPS point will have to be linked to each collected recording.

Place appropriate signage by the recorders according to local legislation.

Materials to bring to the sampling points:

• Smartphone with the AudioMoth chime app

• 3 or 5 AudioMoths, depending on site design

• Enough batteries for all the AudioMoths

• Enough microSD cards (with corner or middle CONFIG.txt files)

• GPS

• Signage according to local legislation (if not already placed)

Sample placement

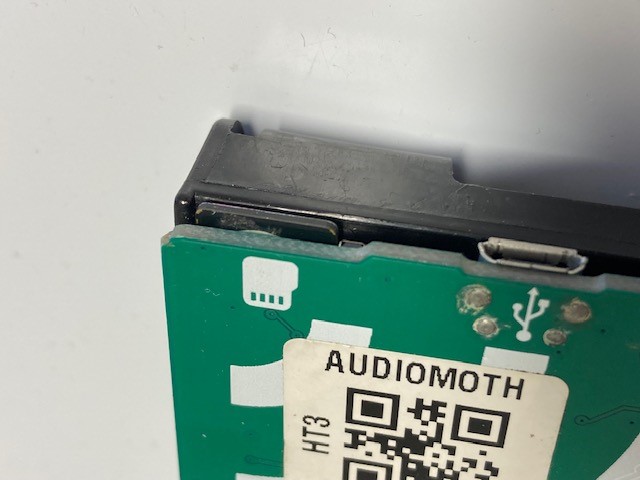

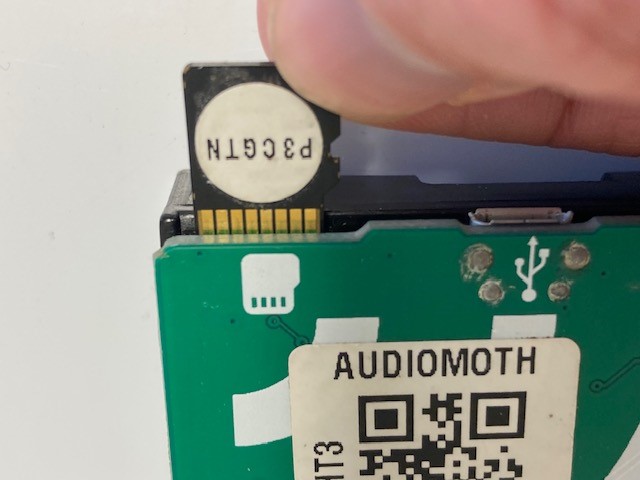

Insert microSD cards into the AudioMoths (slot marked with picture of card)

Push in until you feel a click

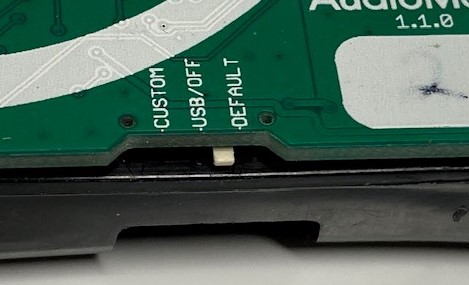

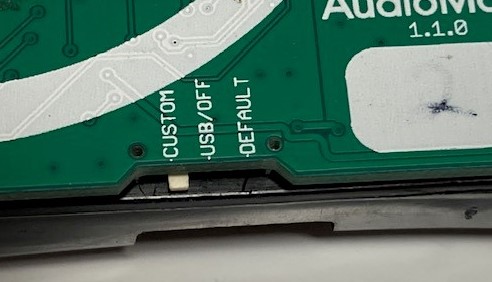

Check that the switch is on USB/OFF

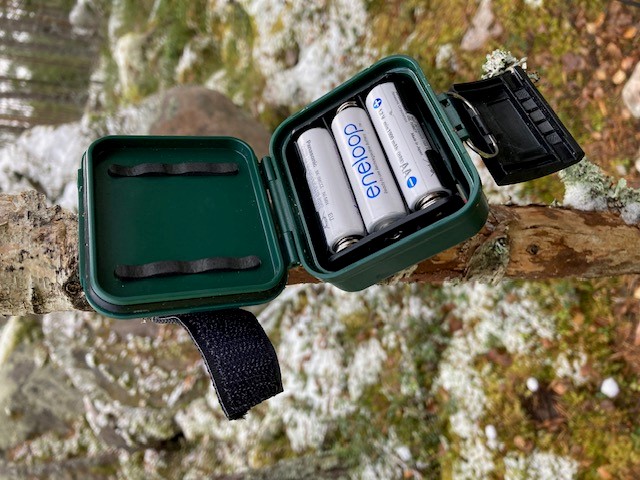

Insert three charged batteries into the AudioMoth

Take note of the date and time, AudioMoth code and microSD code associated to the AudioMoth

Set time on the AudioMoth

Set the switch to DEFAULT. The green light will flash.

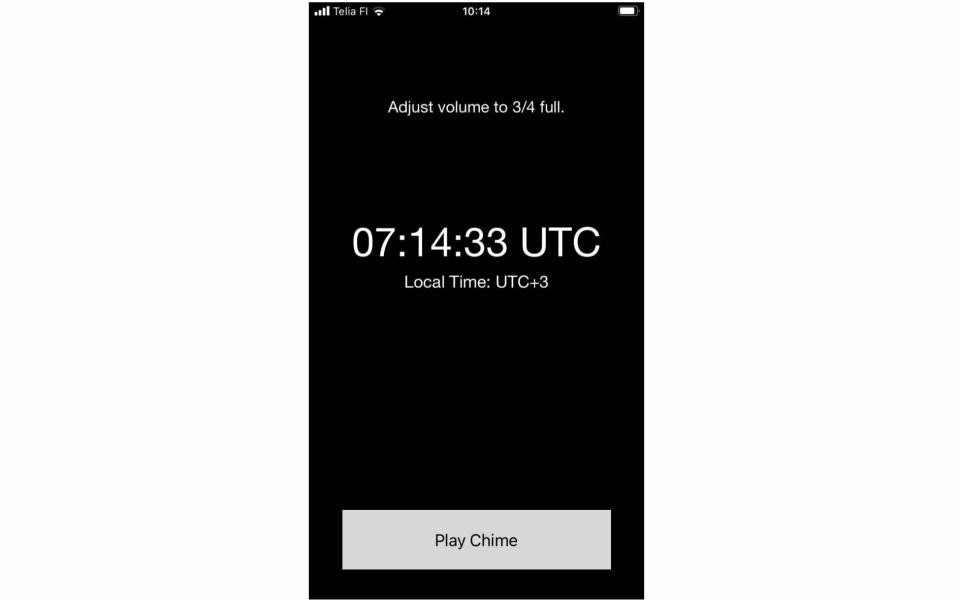

Open the AudioMoth app on your phone and play the chime. The green light should now stay on.

If the light is still flashing, increase the volume and bring the phone speaker closer to the microphone (microphone symbol on the AudioMoth).

<img src="https://static.yanyin.tech/literature_test/protocol_io_true/protocols.io.kqdg3xbp1g25/app.jpg" alt="How the AudioMoth app looks on a smart phone - press the "Play Chime" button to chime the device." loading="lazy" title="How the AudioMoth app looks on a smart phone - press the "Play Chime" button to chime the device."/>

Start recording

Switch to CUSTOM to start recording. Either the green or red light should begin to

flash, but not both (this would indicate an error; see “Troubleshooting”).

Green light flashing = the AudioMoth is on and waiting between recordings

Red light flashing = recording

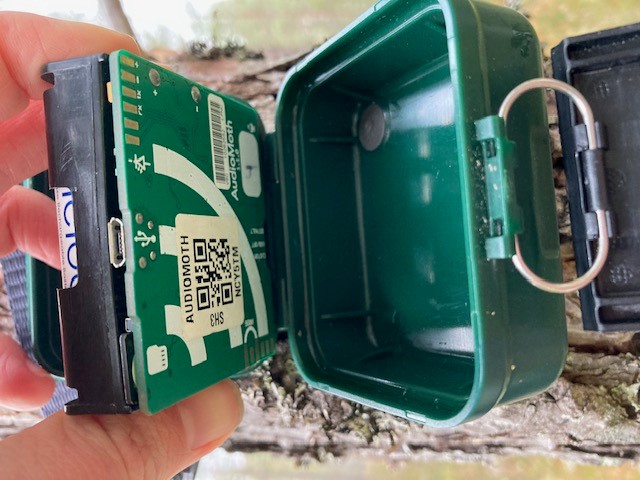

Place the AudioMoth in its waterproof case, with the microphone symbol aligned with the grey acoustic vent. Close the case.

One week later

Collect the samples on the same day each week.

Check that the AudioMoth is still working by looking at the lights: if one of the lights is flashing then the device is functioning; if both or none are flashing, an error occurred (see “Troubleshooting”).

Turn the recorder off by setting the switch to USB/OFF.

Wait for the red light to stop blinking. If a green light is on or blinking, it is not switched to USB/OFF; check the switch position and make sure it is correct.

Remove the microSD card (push on it until you hear a click, then let go and it will pop out); put the collected microSD card in its adapter (or transport box) for safekeeping.

Take note of the date and time you collected the microSD card, AudioMoth code and microSD code associated to the AudioMoth.

Repeat steps 10-12 to place the empty microSD card for the next week of sampling.

Preparation for the next sampling

When you are back from the field, transfer the data on the microSD cards to your computer and/or external hard drive. Quickly check the folders to make sure there is a large number of audio files, indicating that no error occurred. The amount of bytes per recording should be 4146.720488 MB for a 12 hour recording and 5.760488 MB for a 1 minute recording.

Format the microSD cards before deploying them again. Remember to copy the correct CONFIG file back onto each card after formatting.

Charge batteries for the next week. Charge them as close to changing them in the field as possible to retain maximum amount of charge.

There are three possible scenarios when the AudioMoth is turned on (switch is set to CUSTOM):

1. Green light flashes once every two seconds (not recording/standby)
2. Red light flashes intermittently (recording)
3. Green and red lights flash simultaneously once every second (error)

AudioMoth flashing green and red light (error), possible causes and fixes:

Whether you are in the field or the lab/office, there are different fixes you can attempt. Try them in the following order before deciding that the AudioMoth is broken.

The AudioMoth did not hear the chime app while in default mode.

Try removing and replacing the batteries then switching the AudioMoth to "default" mode and playing the chime again. Once the light stays solid green, switch the AudioMoth to "custom".

The CONFIG file on the SD card was not renamed to "CONFIG" so the device cannot read it.

If you are in the field, try using a different microSD card of the same variety (corner vs. middle). Make sure the card is fully inserted into the slot (you hear a click).

Make sure the CONFIG files are named "CONFIG" and that you have copied the correct one onto the microSD card after formatting.

The SD cards have failed/glitched.

Try doing a quick format of the card, then reinstall the CONFIG file and follow the steps above.

The new firmware did not get installed properly.

On your computer, open the AudioMoth flash app and, remove all batteries and SD cards before connecting the audiomoth to the computer, check in the flash app that the firmware is called "audiomoth_lifeplan_0.1.5". Try reinstalling the firmware, then test the device by following the chime app steps.

If the AudioMoth does not function properly after this, contact the provider.

Make sure to turn the AudioMoth off before removing the batteries.

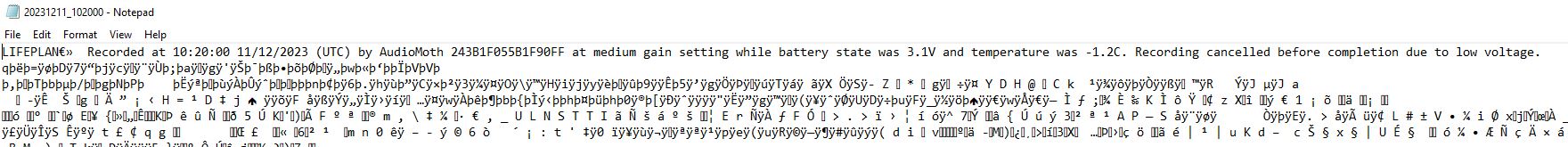

If the device is recording when the batteries are removed, the recording will be cut short, and you will see the error signal. There is a risk of corrupting the microSD card if this happens.

Always check the status of the AudioMoth before turning off the device to make sure it is running properly; then, after turning the switch to USB/OFF and waiting for the red light to stop flashing, remove the batteries.

One LED light goes out:

If one of the LED lights stop working, it is still possible to use the AudioMoth. Here we describe how the AudioMoth will function in either scenario.

Green LED dies:

The green light is relevant for chiming the AudioMoth and determining what mode it is in when set to CUSTOM.

To chime the AudioMoth without a green light, press “Play Chime” three times to better ensure that it worked.

When the AudioMoth is turned on (set to CUSTOM), if there is no light, it is on standby. If the red light is flashing intermittently, it is recording. If the red light is flashing once every second, there is an error .

Red LED dies:

The red light is relevant when the AudioMoth is off (set to USB/OFF) and determining what mode it is in when set to CUSTOM.

If the red light is not working when the AudioMoth is switched off, it does not make a difference in the functioning of the device.

When the AudioMoth is turned on (set to CUSTOM), if there is no light, it is recording. If the green light is flashing once every two seconds, it is on standby. If the green light is flashing once every second, there is an error .

Depleted batteries

This often happens in extreme cold temperatures, especially if the AudioMoths are left with the same batteries for two weeks, or more. In this case, the recordings will be incomplete; it will create the file but it won't actually be capable of recording and saving the sound.

You can place a thin insulation sheet in the waterproof case with the AudioMoth (on the side connected to the tree/pole, so as to not block the microphone).

AudioMoth does not turn on

If the outside temperature is around freezing, try to warm up the device (this can be as simple as putting it in a pocket close to your body for a few minutes). If it still does not turn on, remove the AudioMoth from the field. Try to turn it on again later in the office/lab; sometimes the AudioMoth will start working again after a break, especially if the outside temperatures are below freezing.

AudioMoth not recognizing clock setting chime

This can be either a software glitch or an issue with the microphone. To rule out a software glitch, try reinstalling the new LIFEPLAN firmware , then try the chime again. If that doesn’t work, contact the provider to get a replacement AudioMoth.

Audiomoth recorded no data

Reinstall the firmware on the AudioMoth .

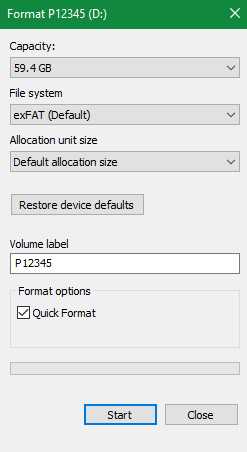

Format the microSD card (File system exFAT)

Put the correct CONFIG file on the memory card (download and see instructions in the Getting Started Guide at the top of this page)
