Design and build of small-scale magnetic soft-bodied robots with multimodal locomotion

Ziyu Ren, Metin Sitti

Published: 2023-12-14 DOI: 10.1038/s41596-023-00916-6

soft-bodied robots

multimodal locomotion

millirobots

medical applications

locomotion control

AI 解读

The GFP thermal shift assay for screening ligand and lipid interactions to solute carrier transporters

Co-fractionation–mass spectrometry to characterize native mitochondrial protein assemblies in mammalian neurons and brain

Simultaneously measuring the methylation of parent and daughter strands of replicated DNA at the single-molecule level by Hammer-seq

The Nodewalk assay to quantitate chromatin fiber interactomes in very small cell populations

Nondestructive production of exosomes loaded with ultrathin palladium nanosheets for targeted bio-orthogonal catalysis

An optimized culture system for efficient derivation of porcine expanded potential stem cells from preimplantation embryos and by reprogramming somatic cells

Engineering SARS-CoV-2 using a reverse genetic system

cfSNV: a software tool for the sensitive detection of somatic mutations from cell-free DNA

Growing and making nano- and microcrystals

Composable microfluidic spinning platforms for facile production of biomimetic perfusable hydrogel microtubes

查看全部

Sections

Figures

References

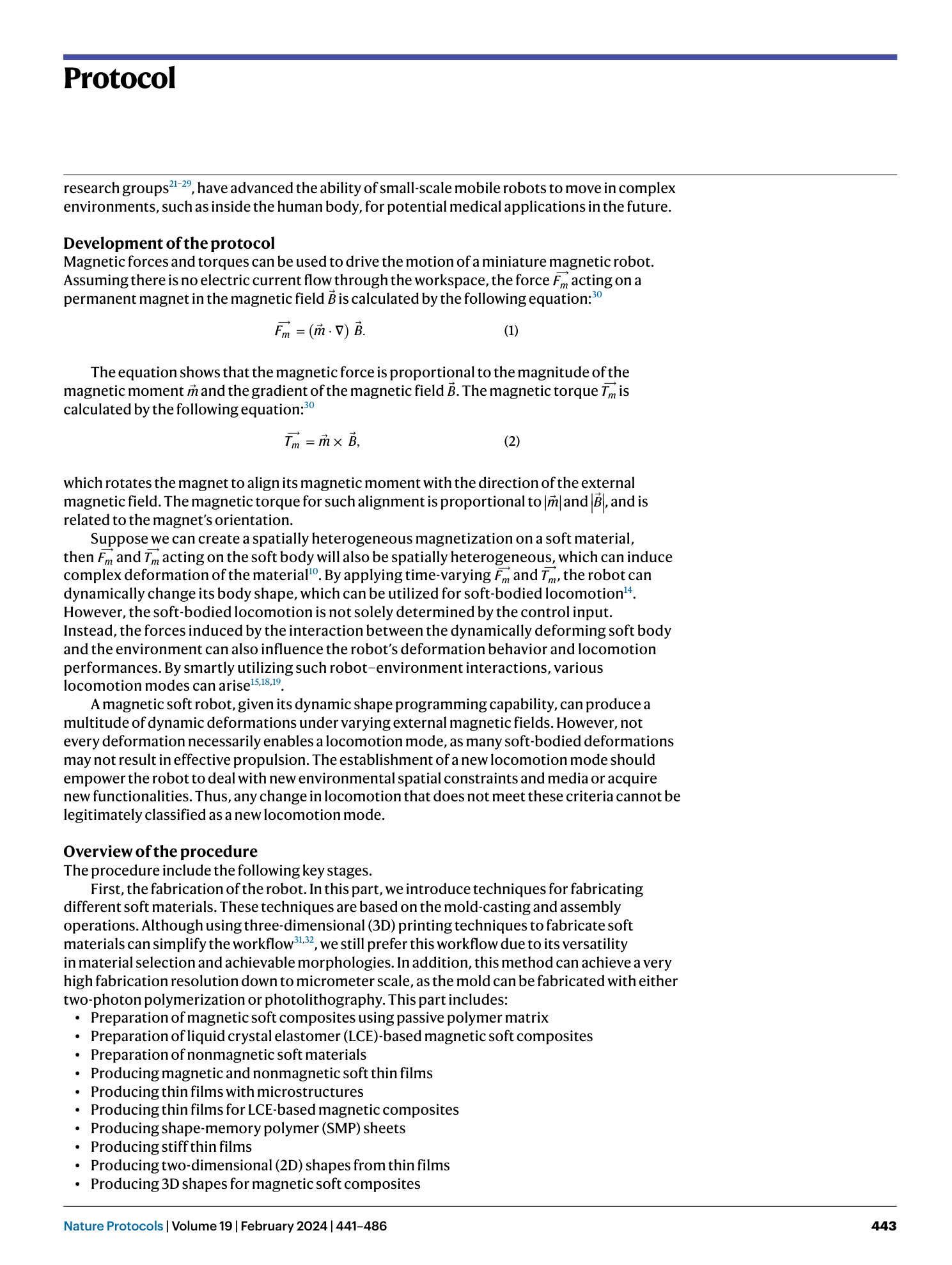

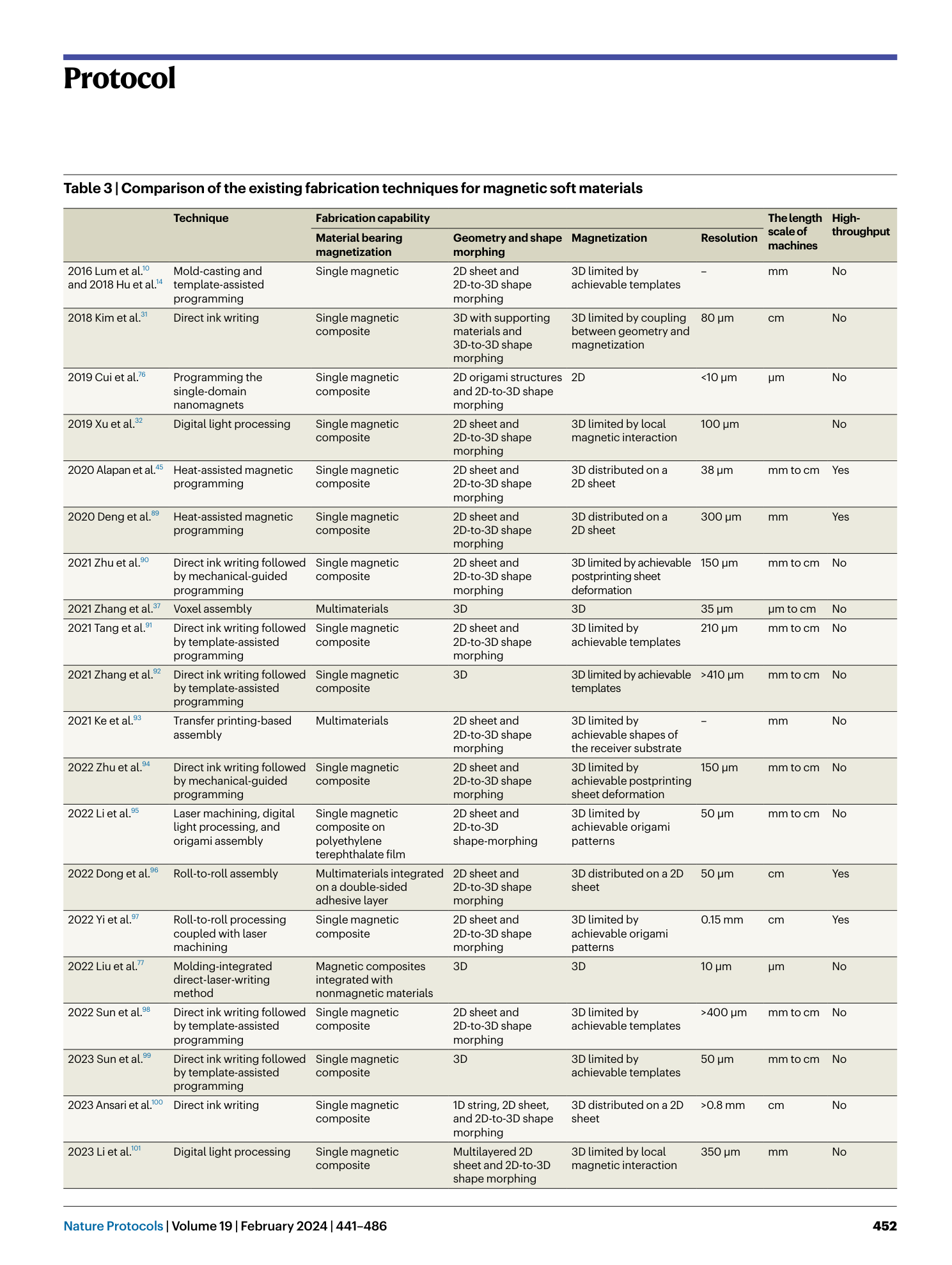

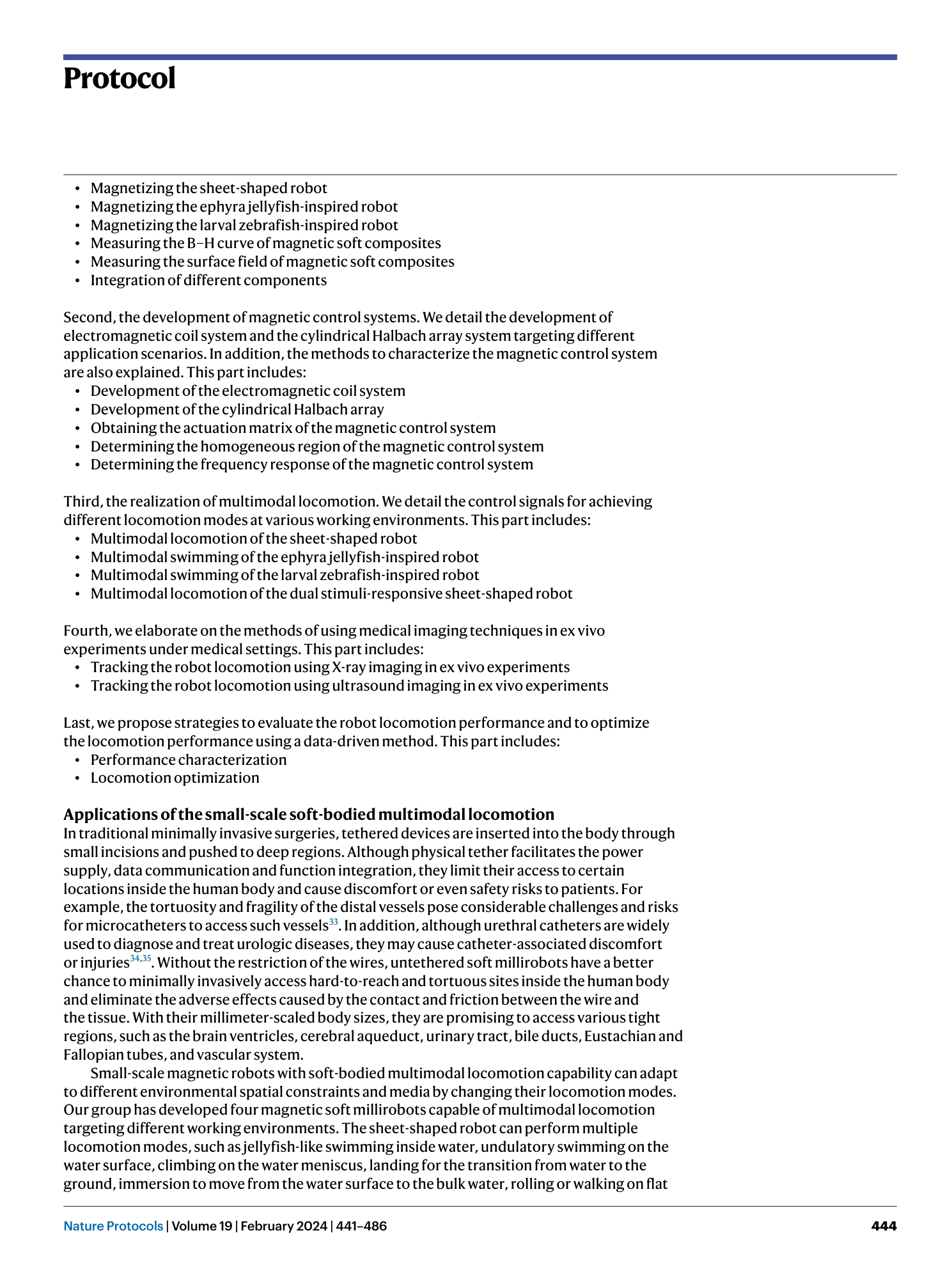

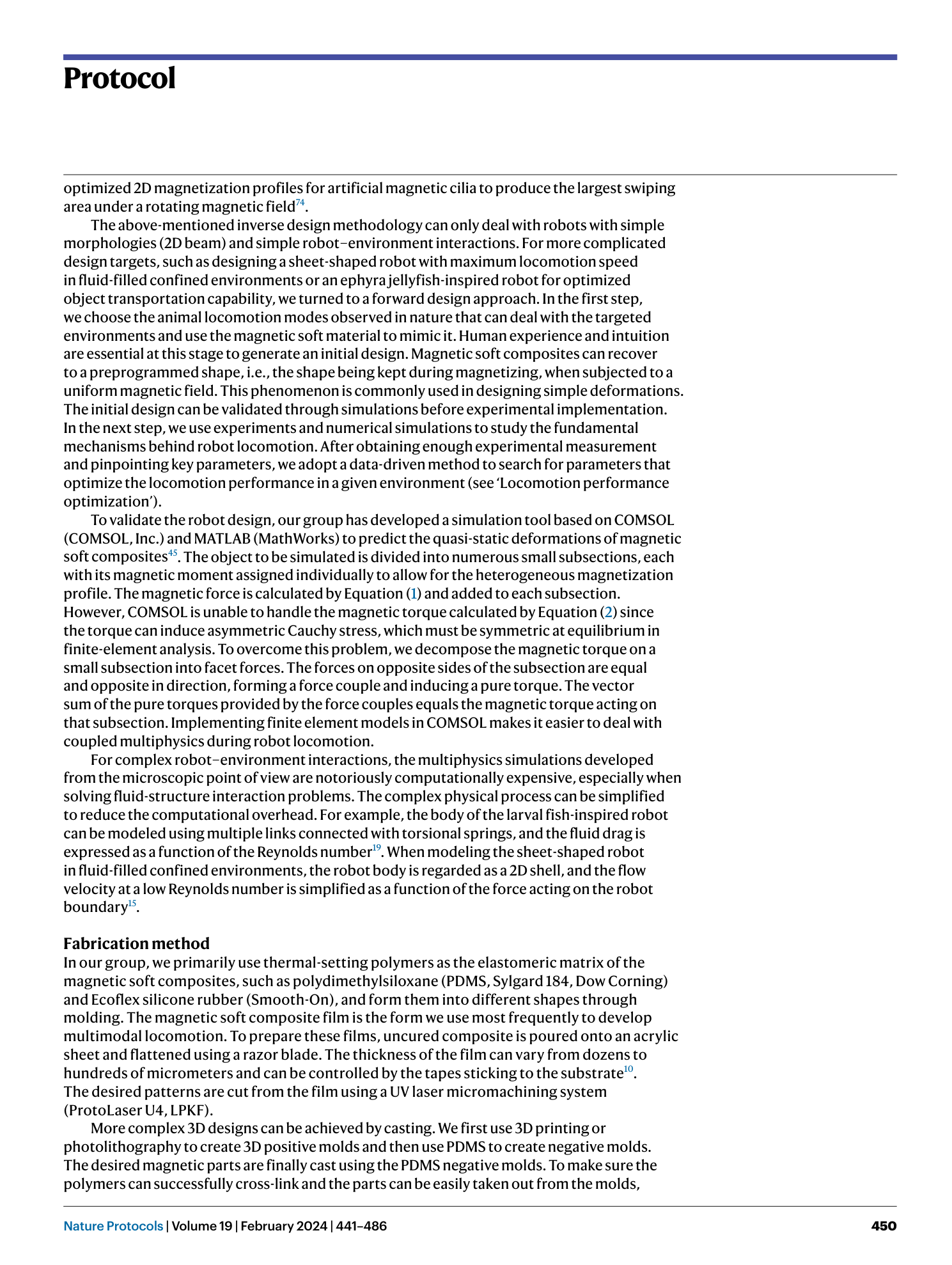

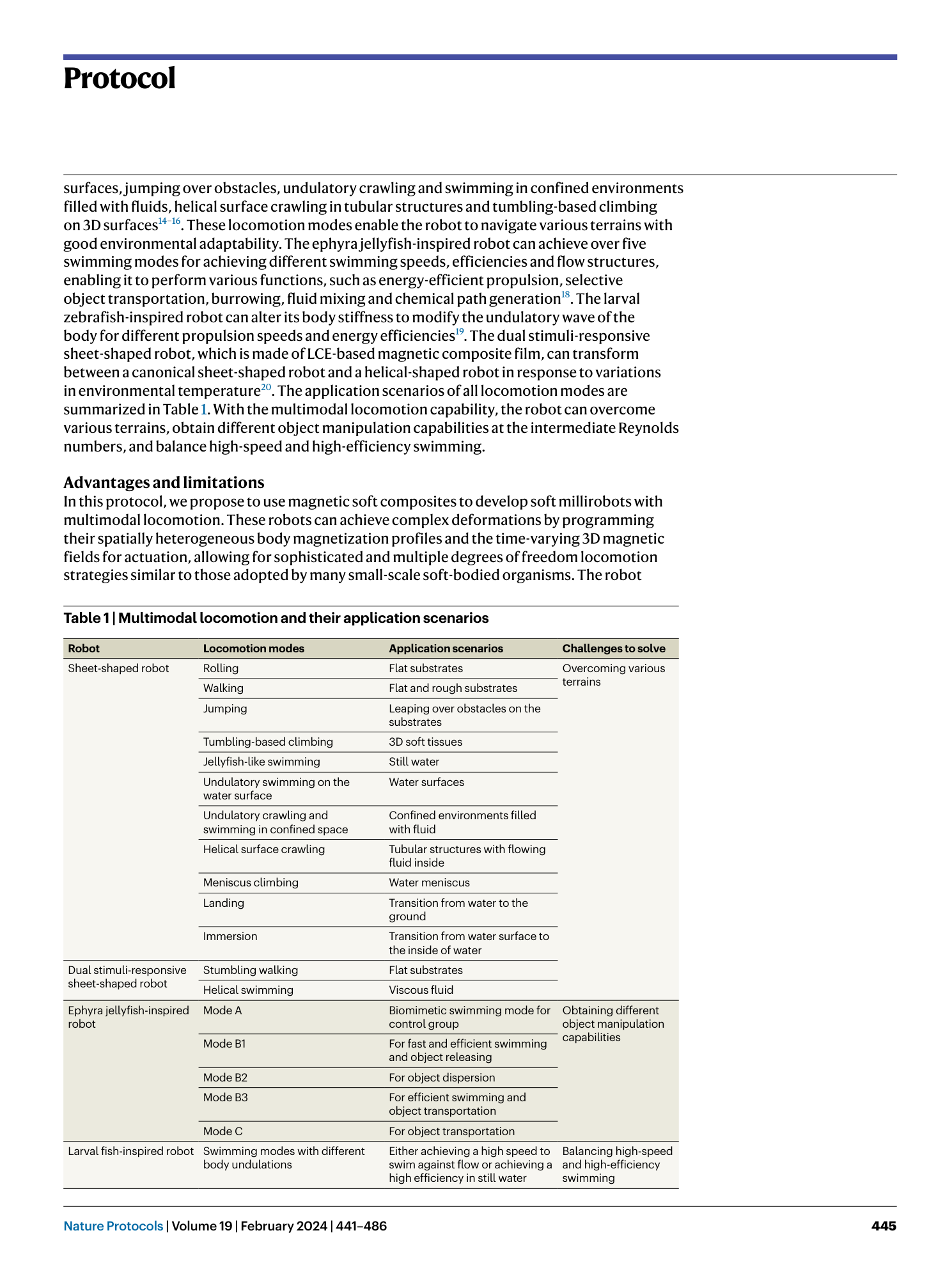

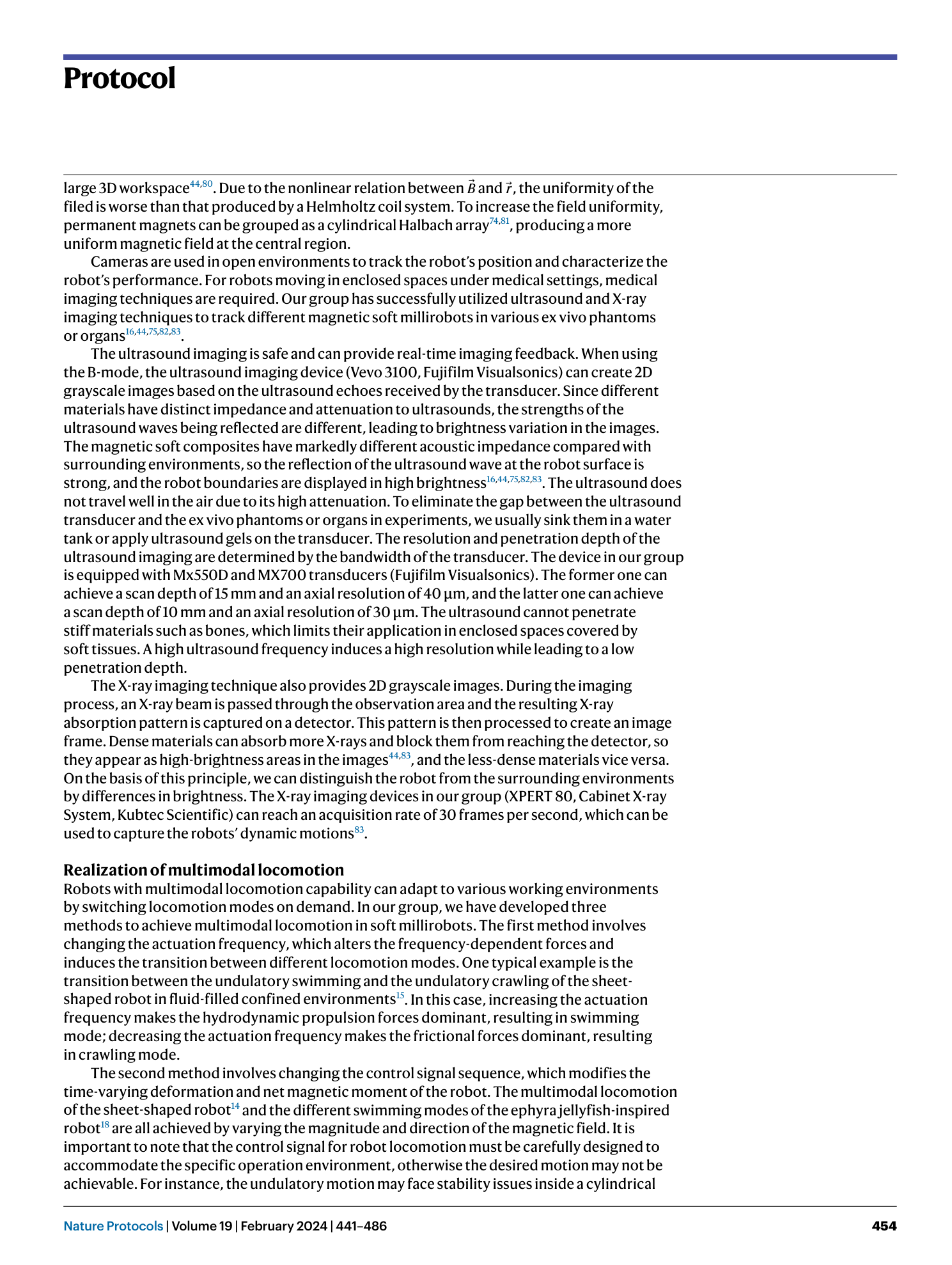

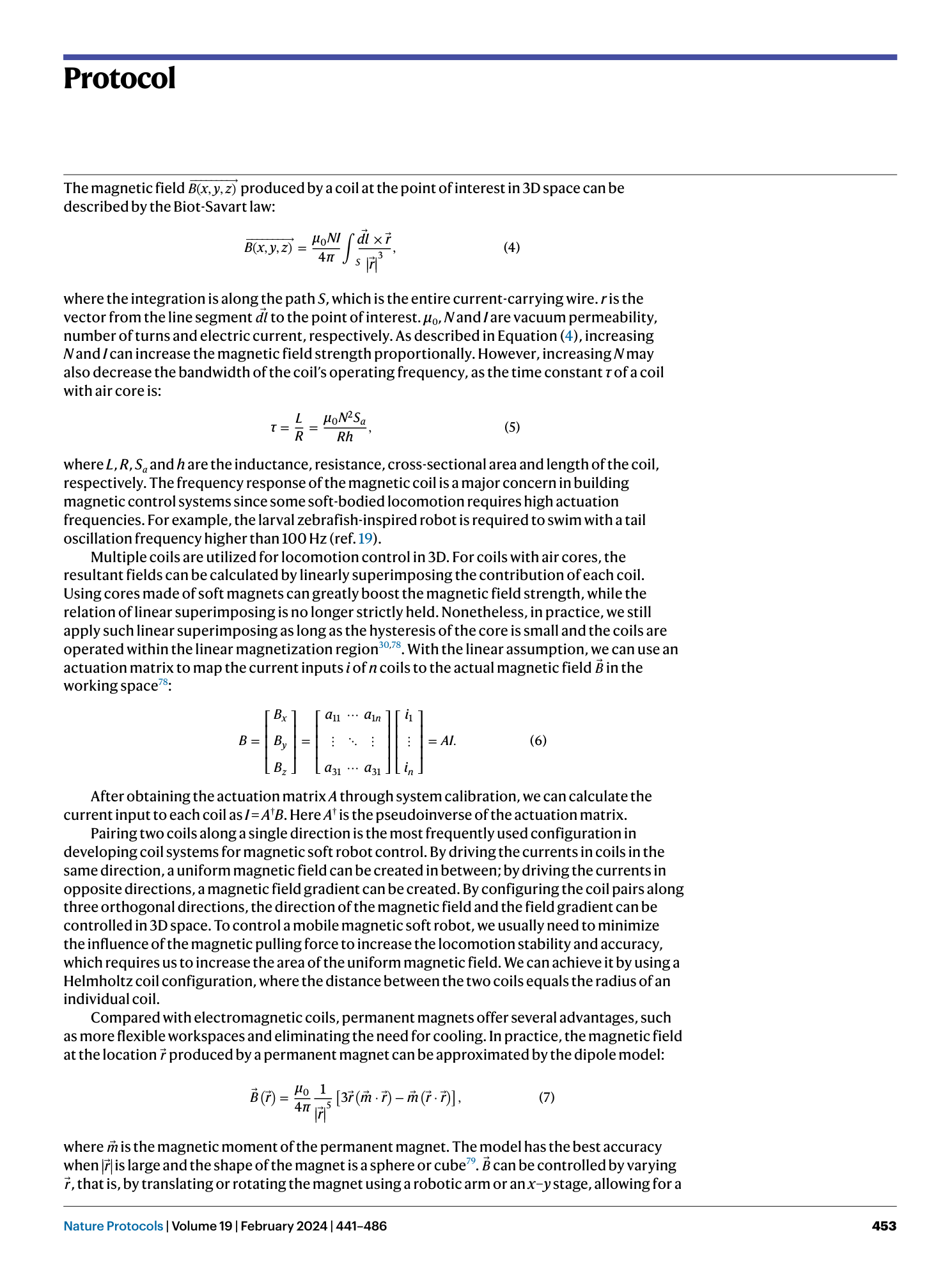

Introduction

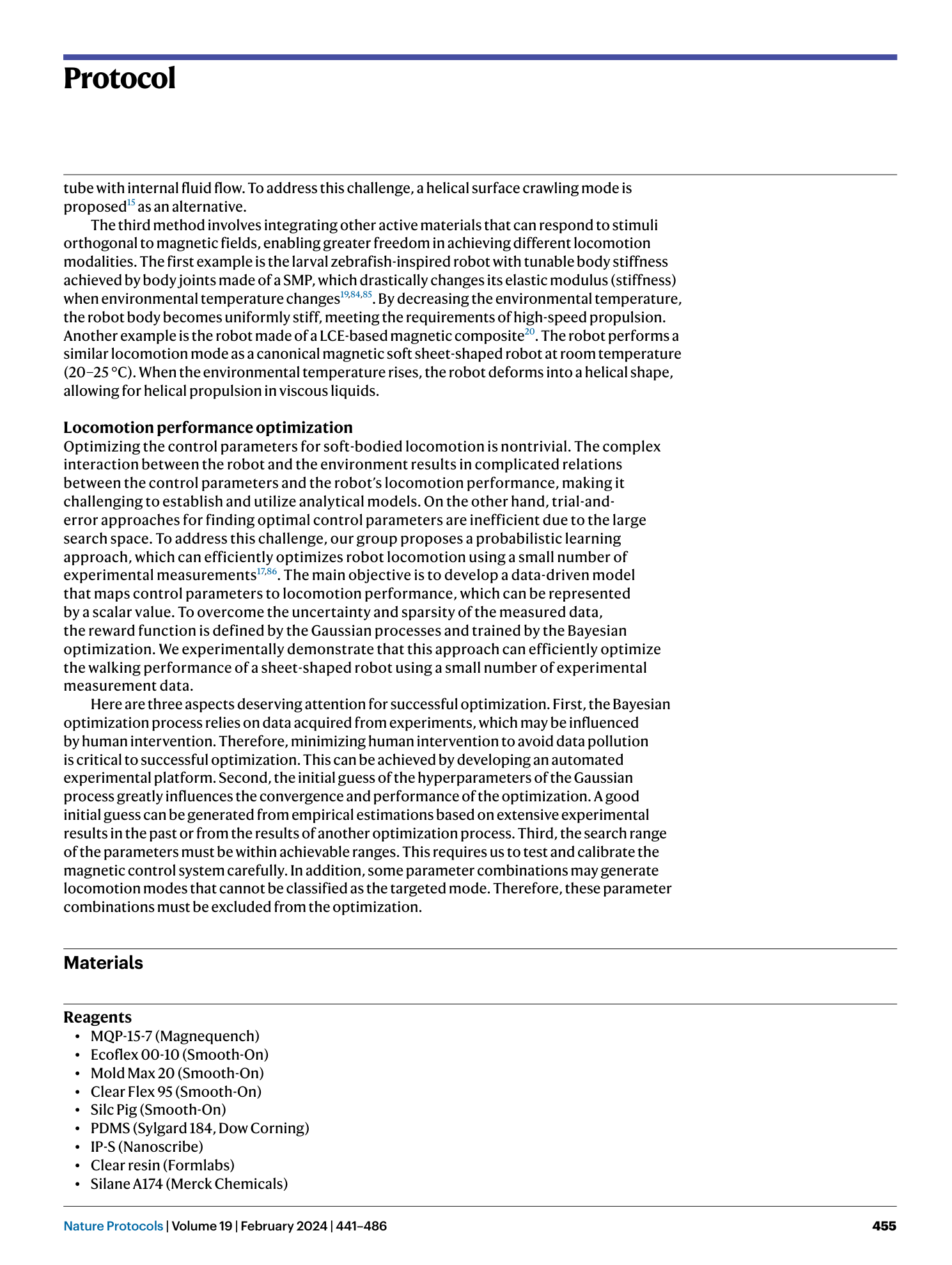

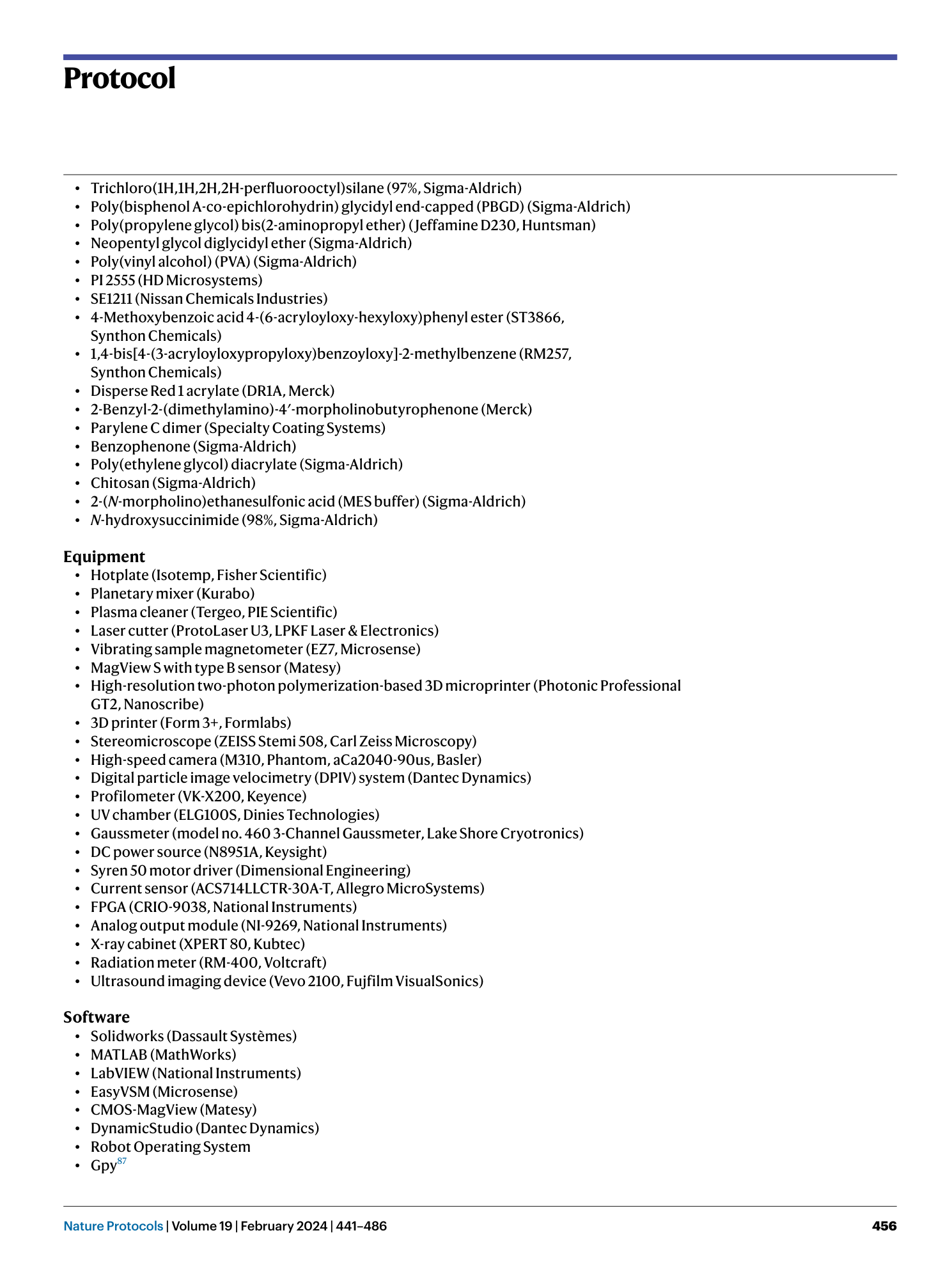

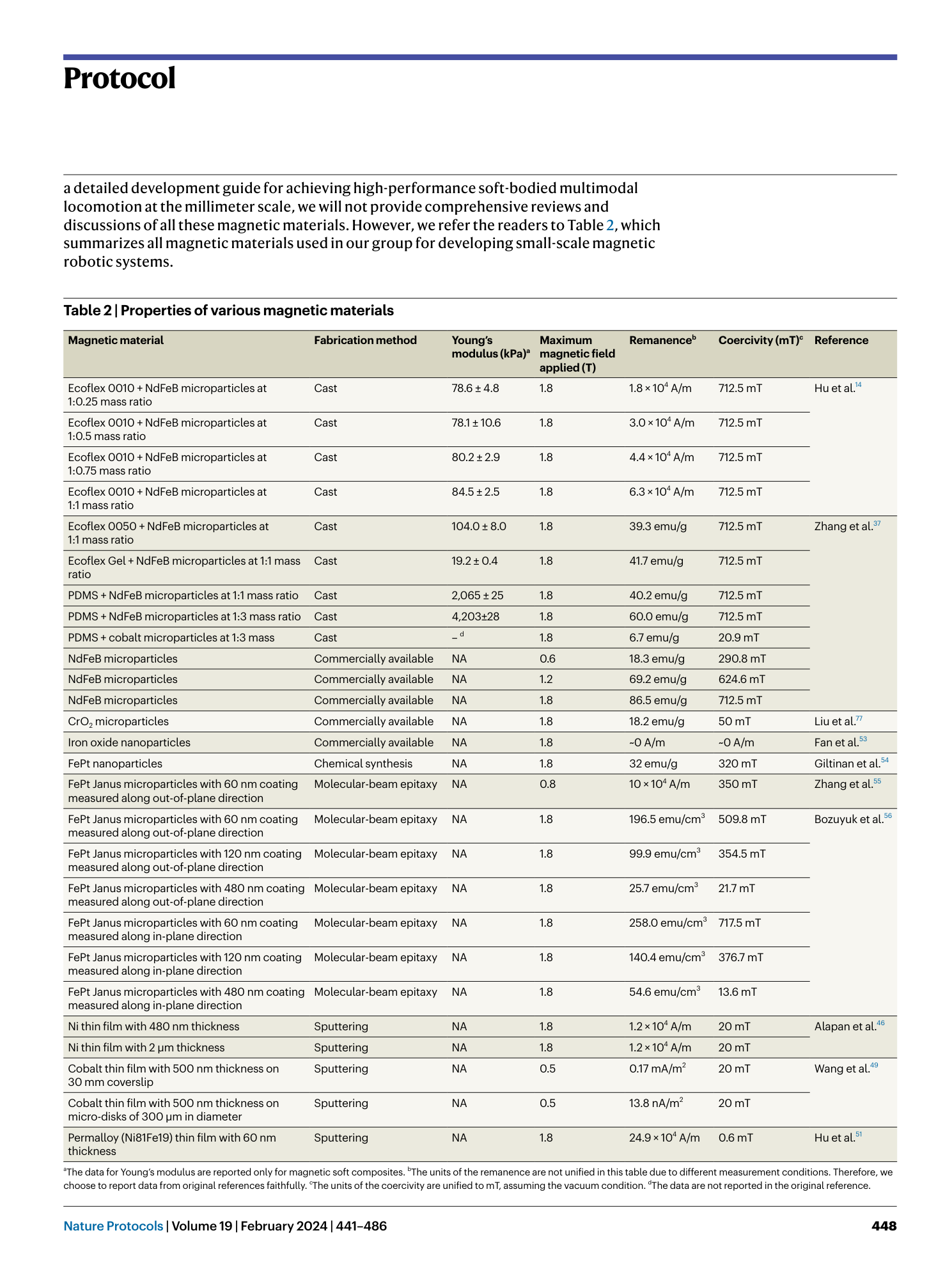

Materials
Procedure

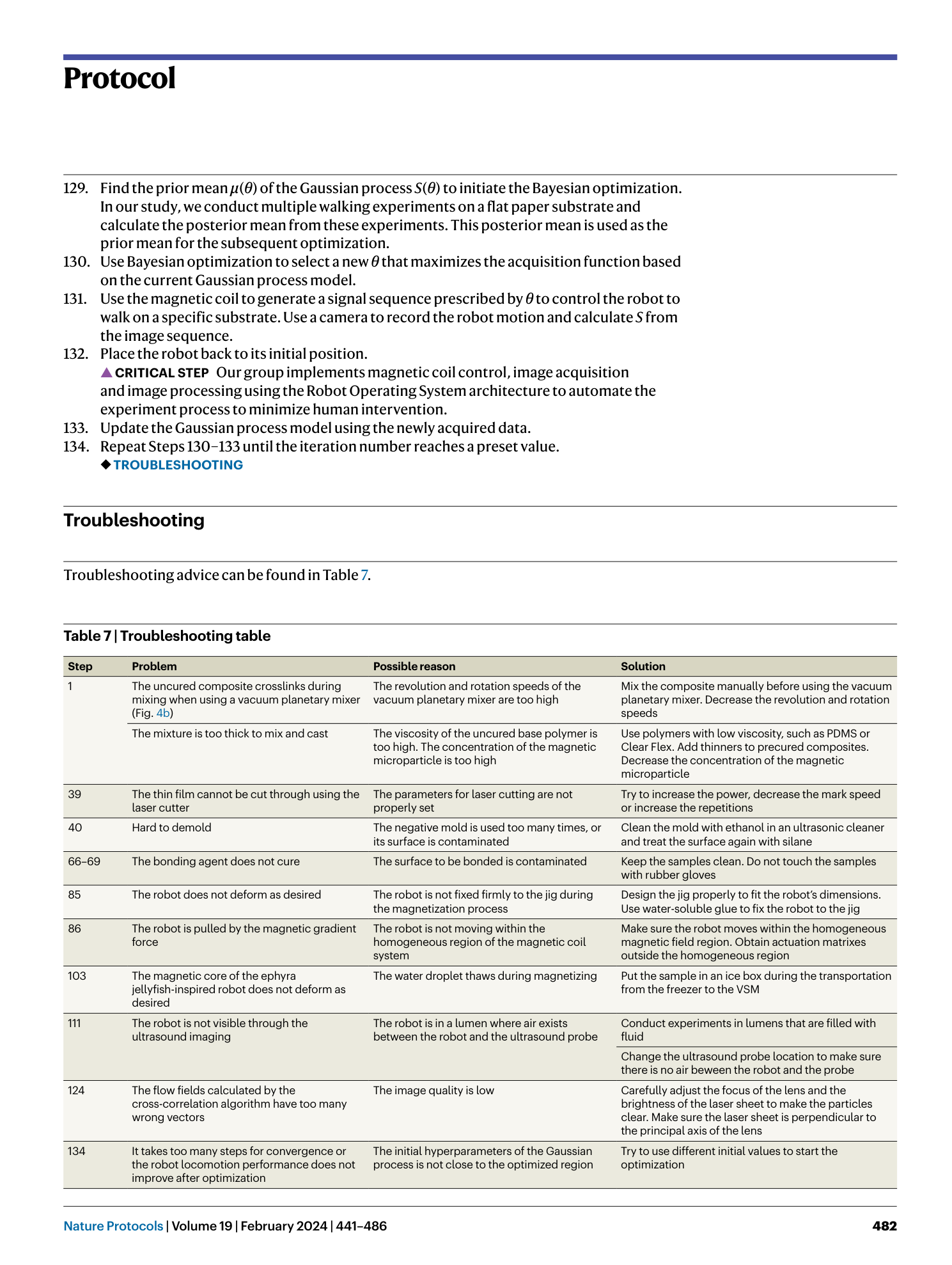

Troubleshooting

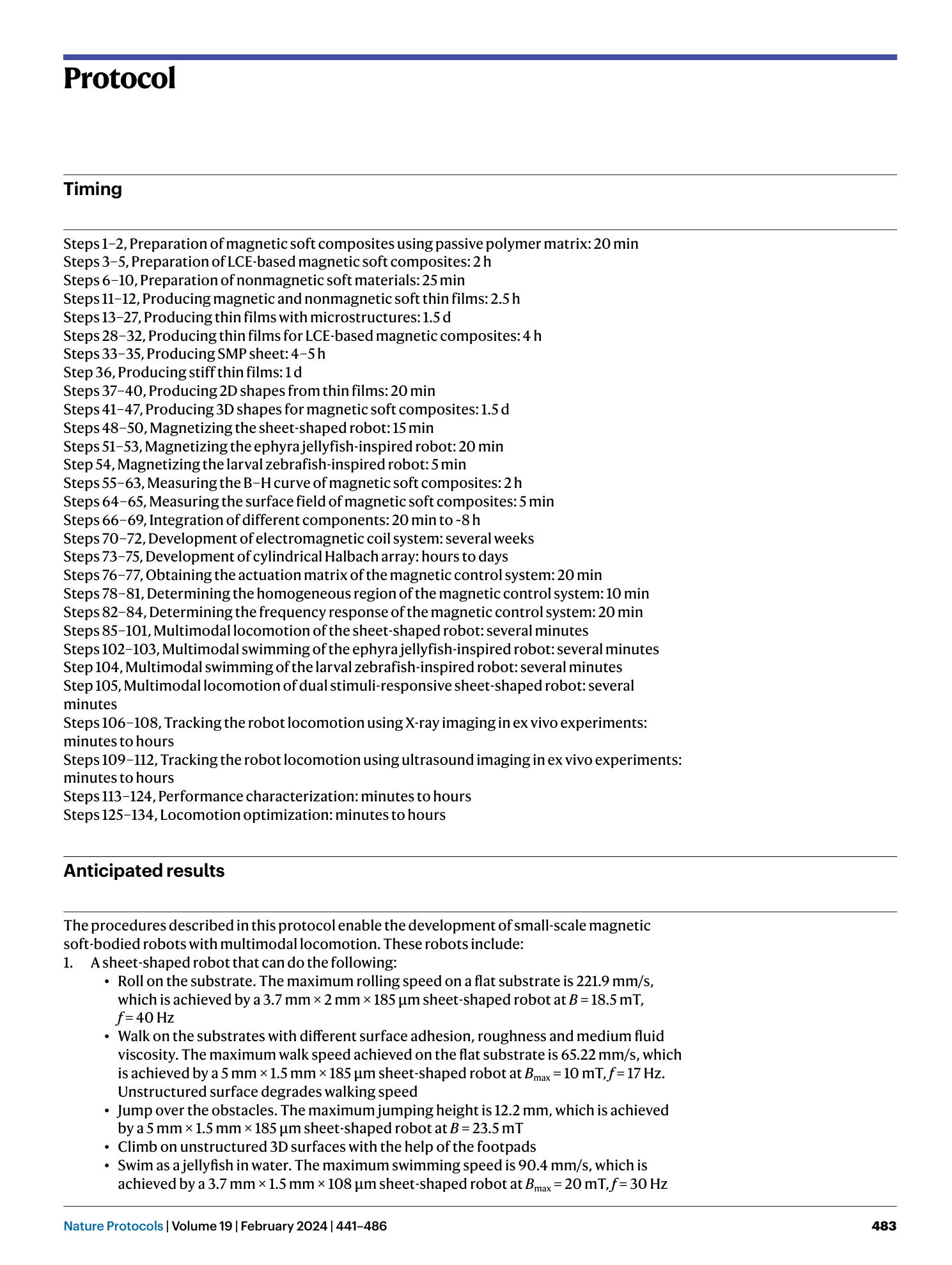

Timing

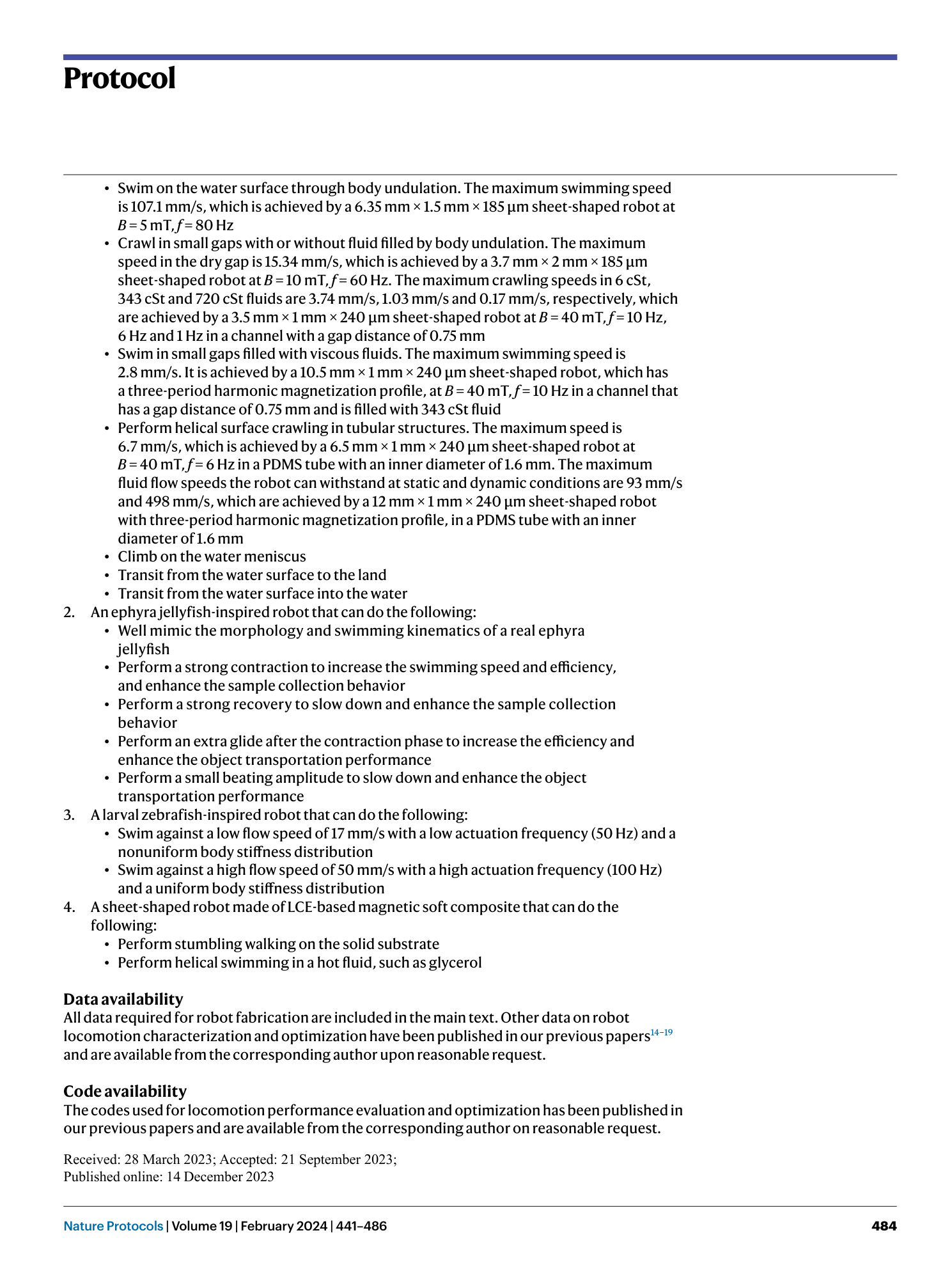

Anticipated results
Acknowledgements

Figure 1

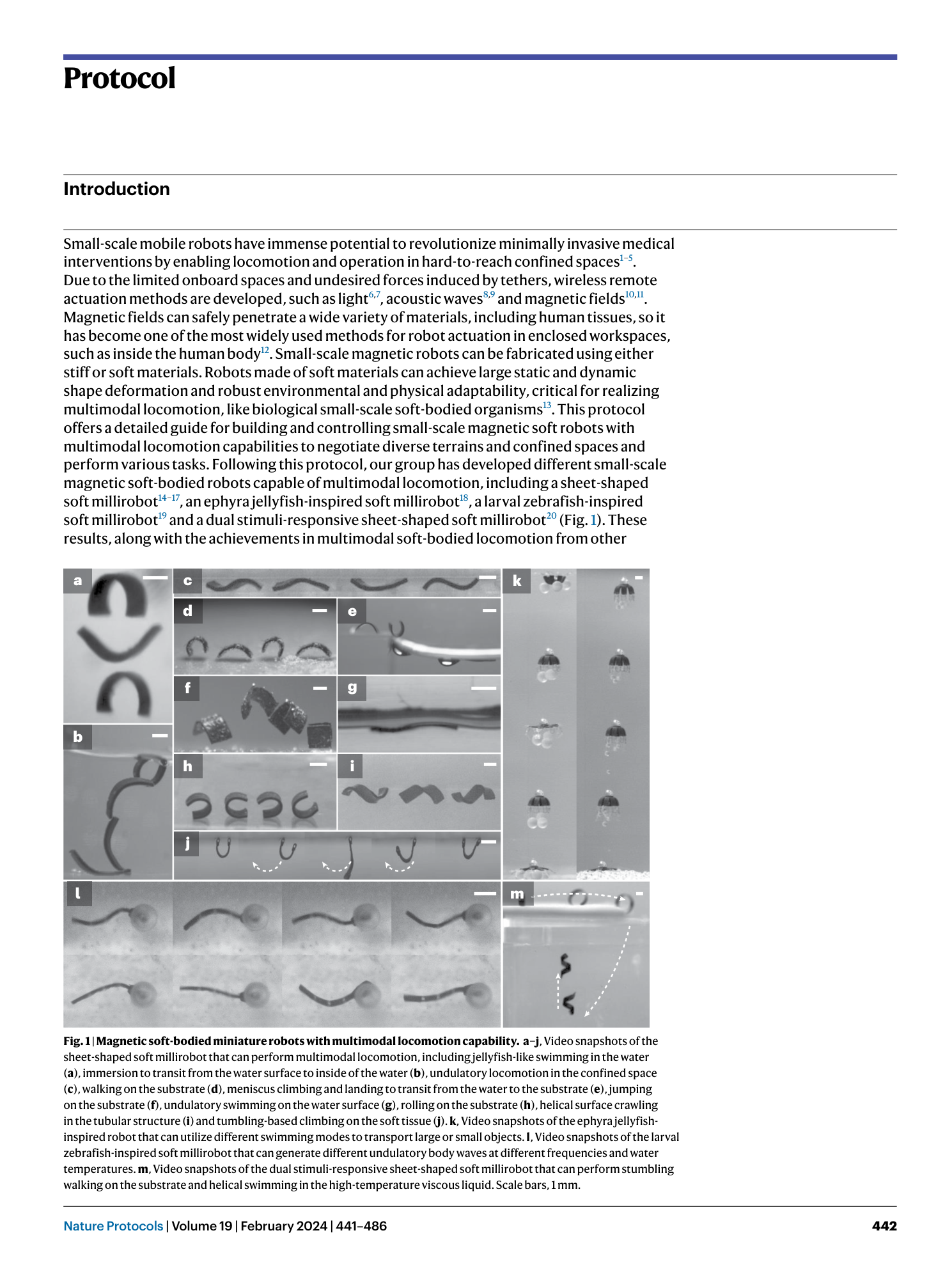

Fig. 1: Magnetic soft-bodied miniature robots with multimodal locomotion capability.
Figure 2

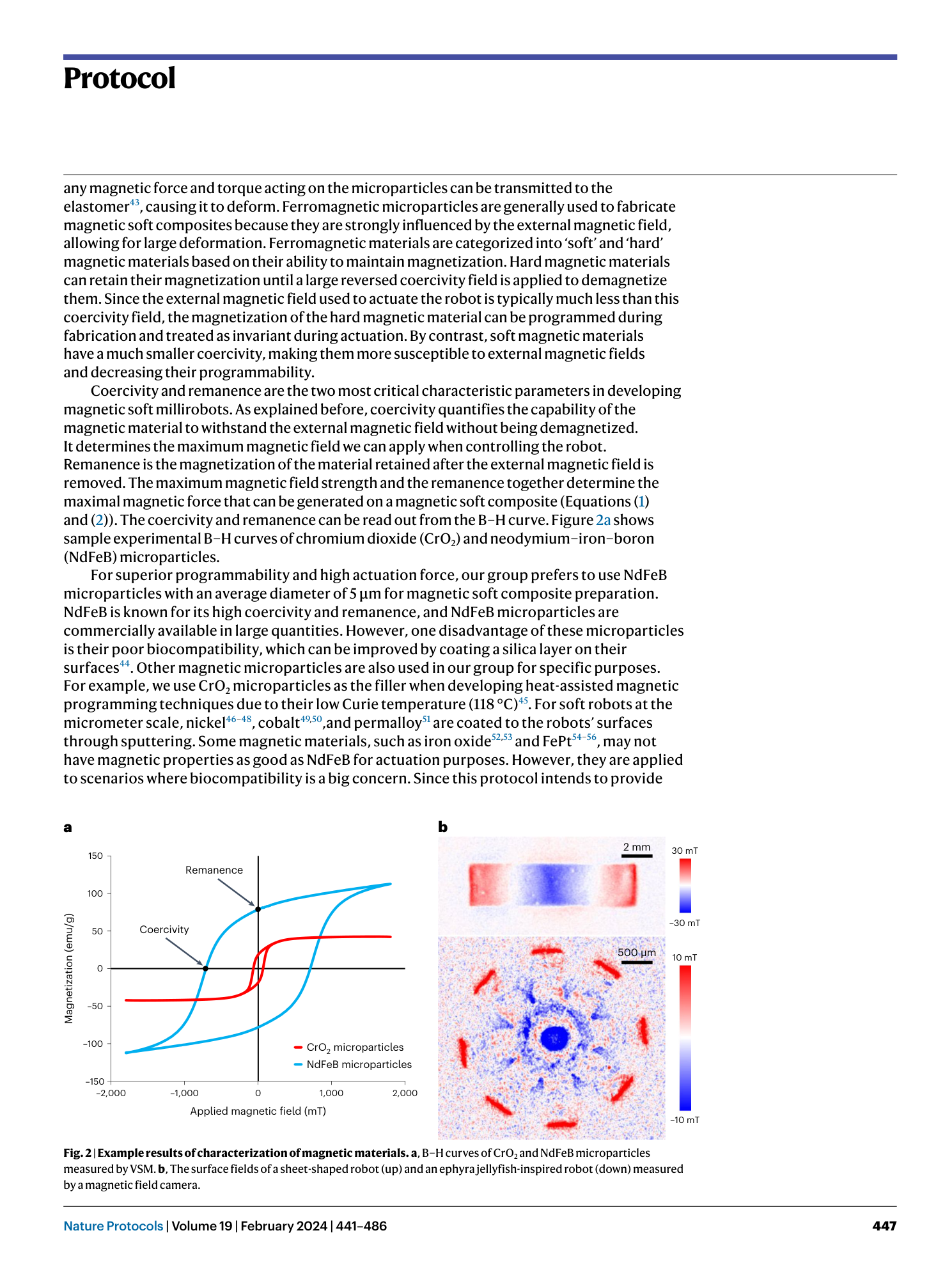

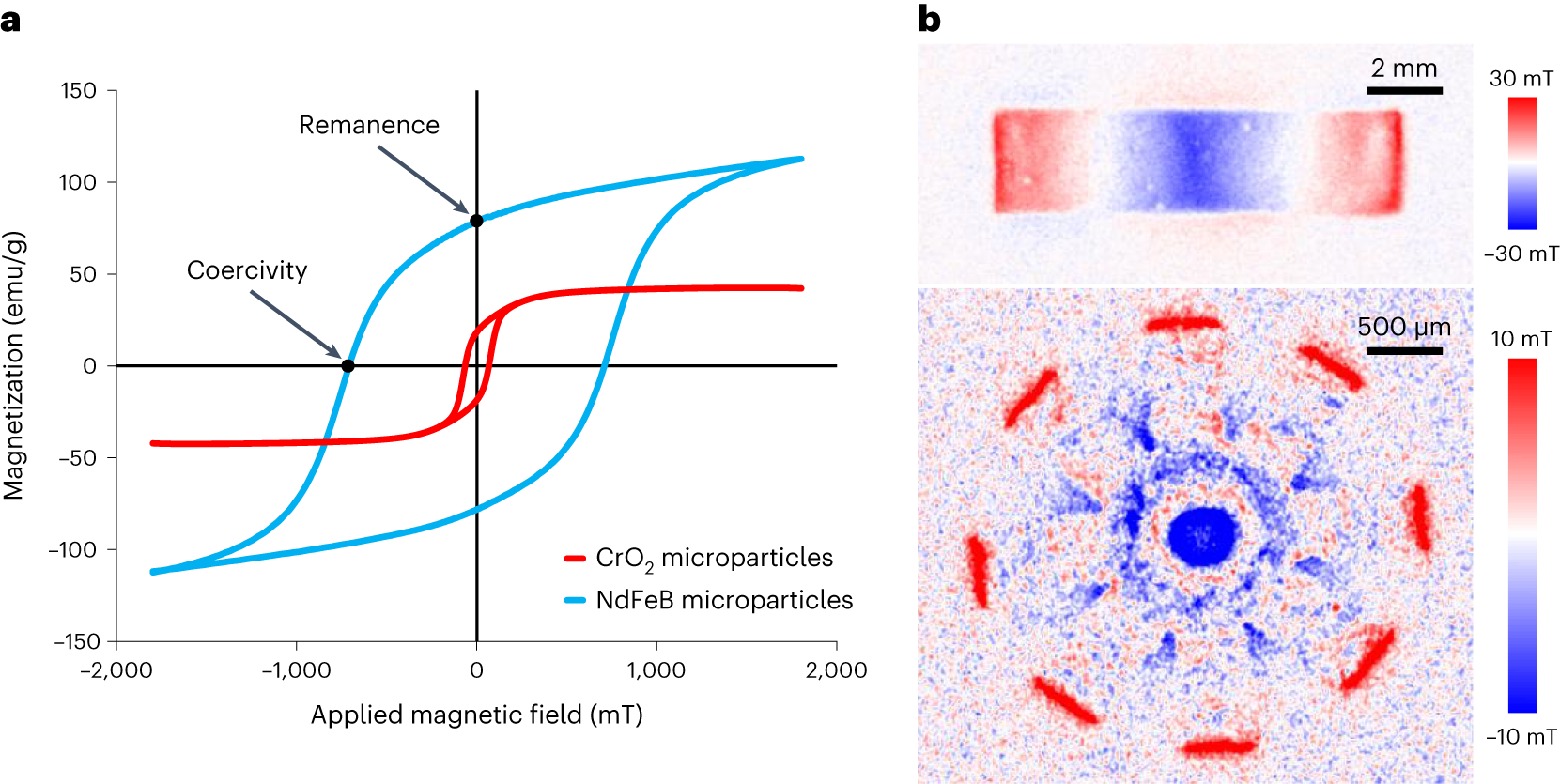

Fig. 2: Example results of characterization of magnetic materials.
Figure 3

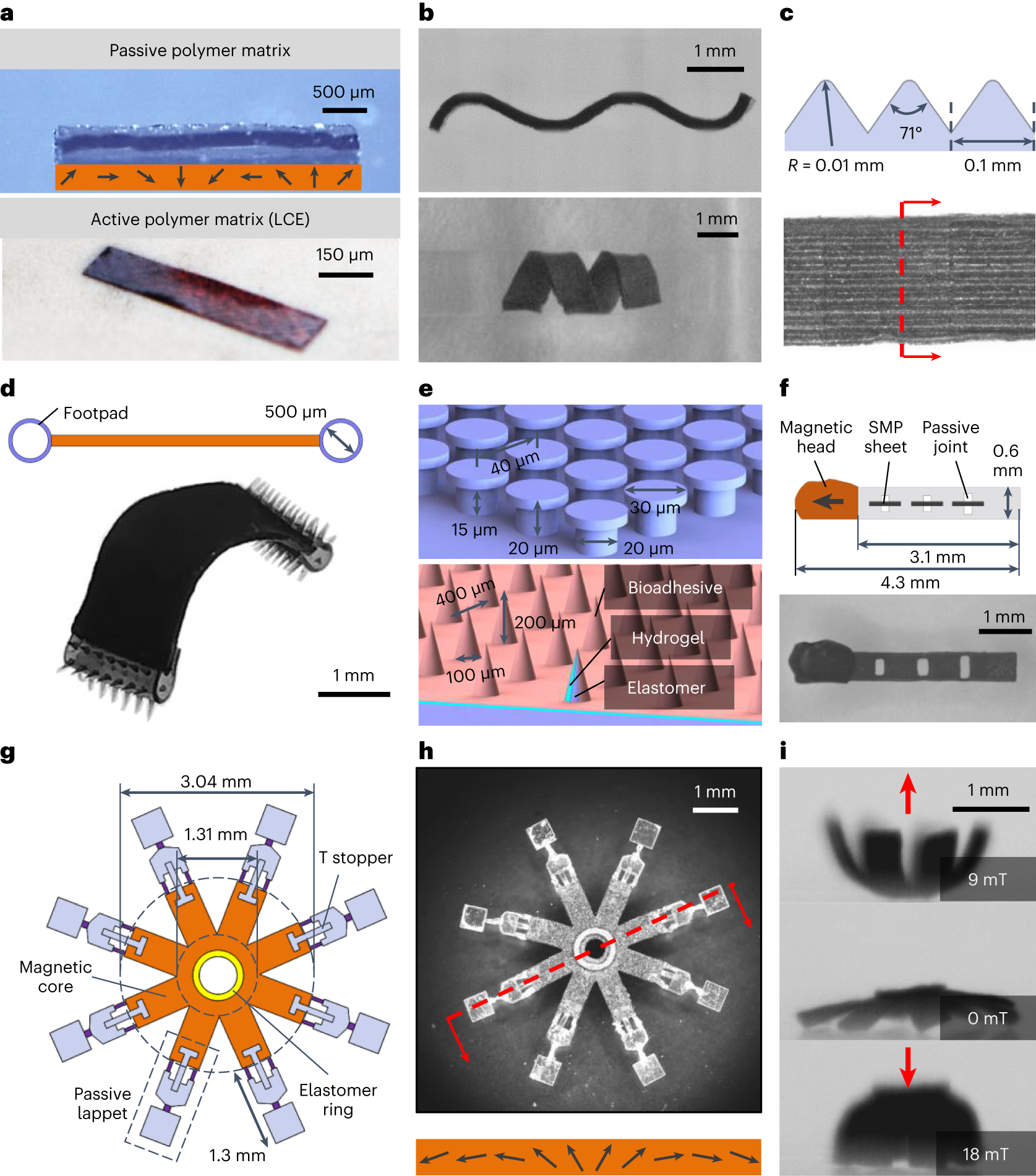

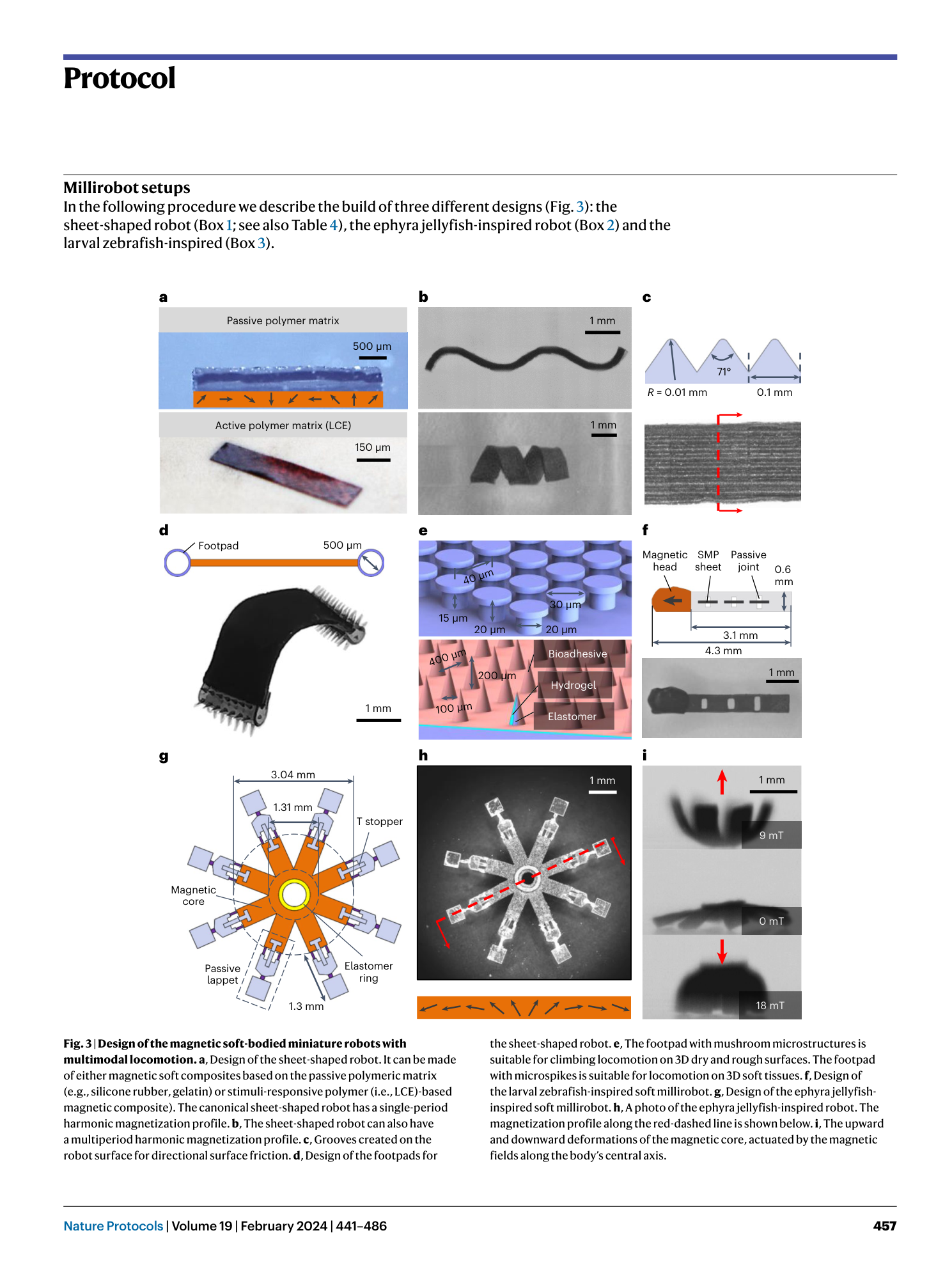

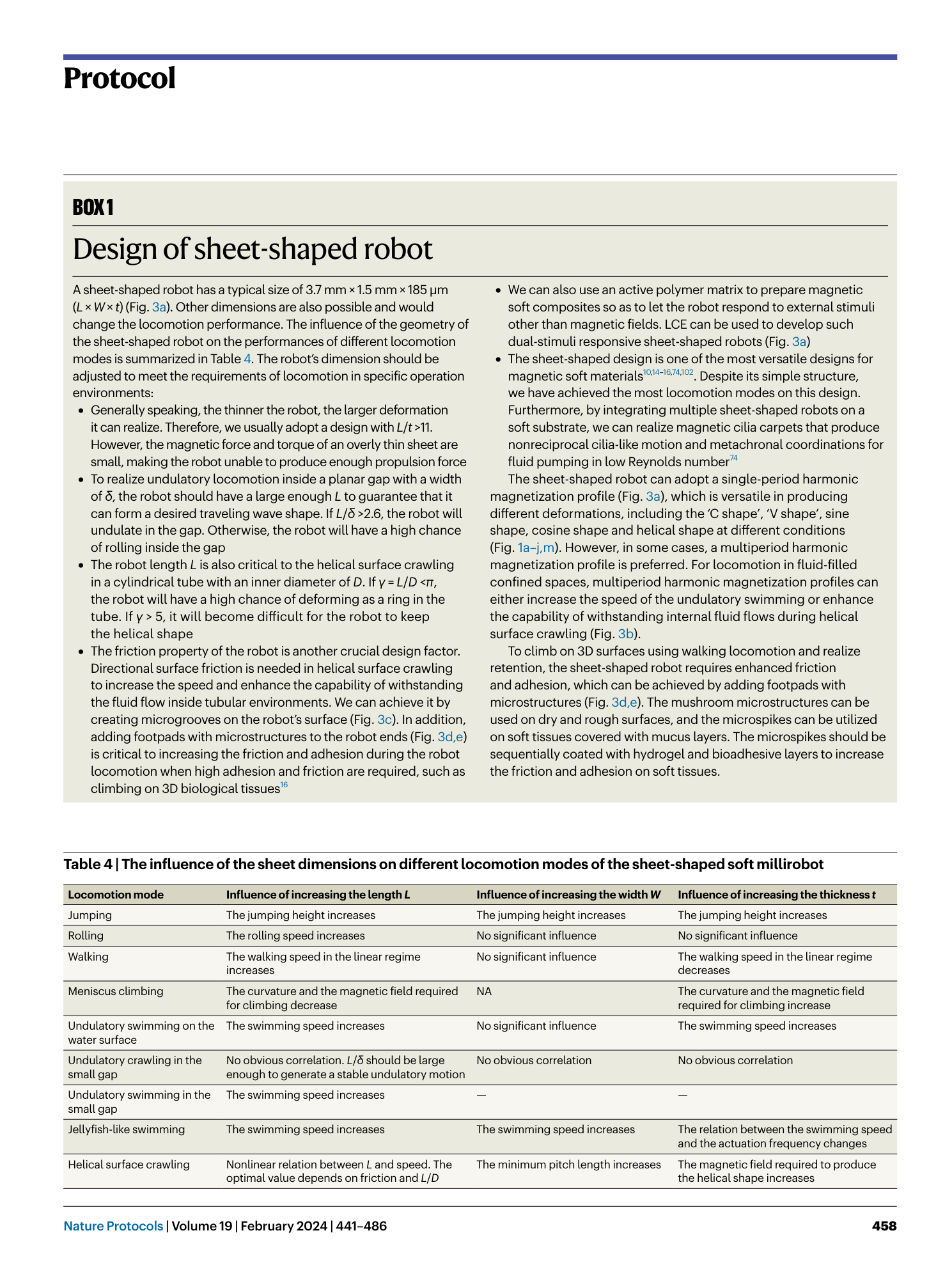

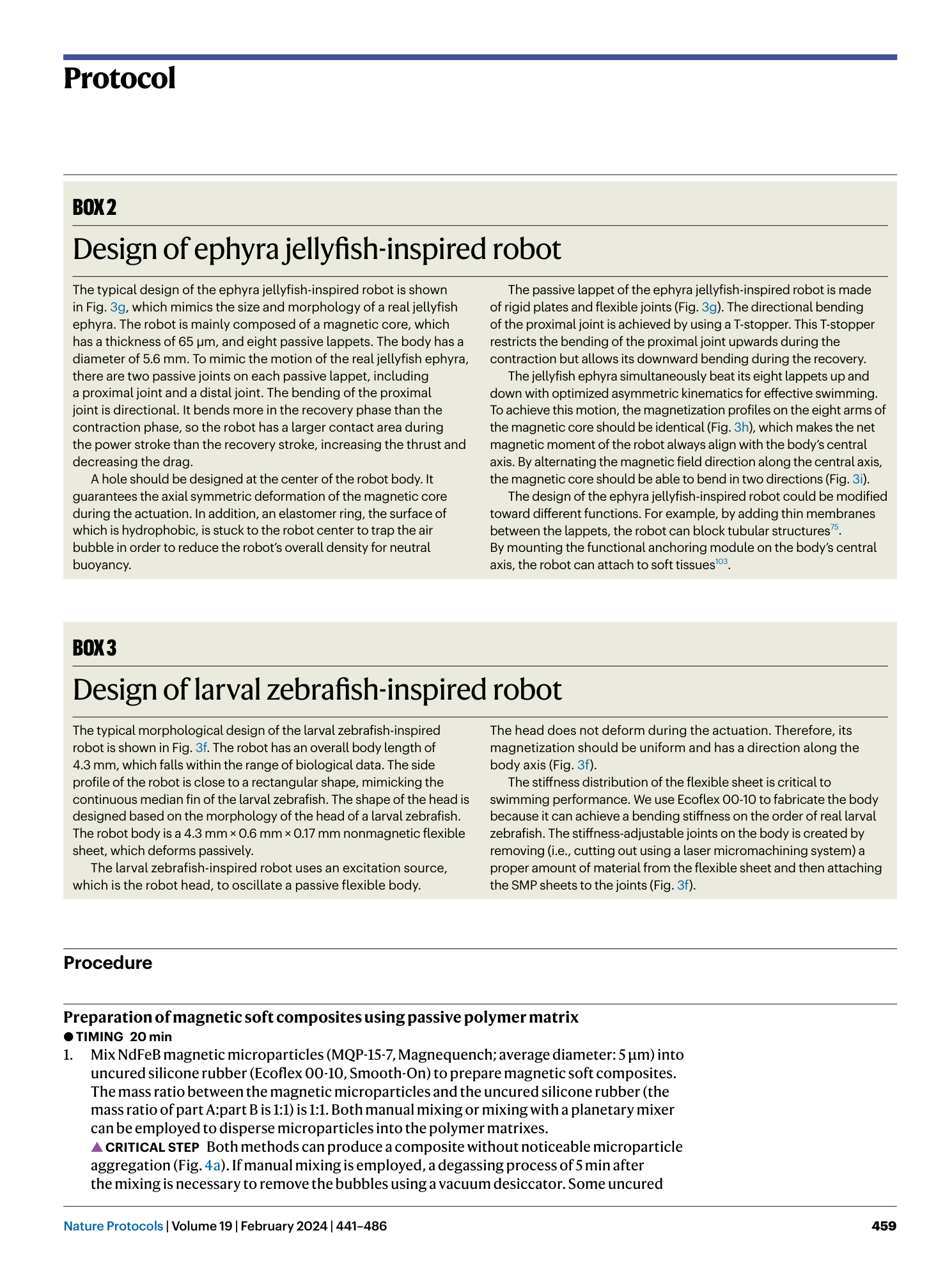

Fig. 3: Design of the magnetic soft-bodied miniature robots with multimodal locomotion.
Figure 4

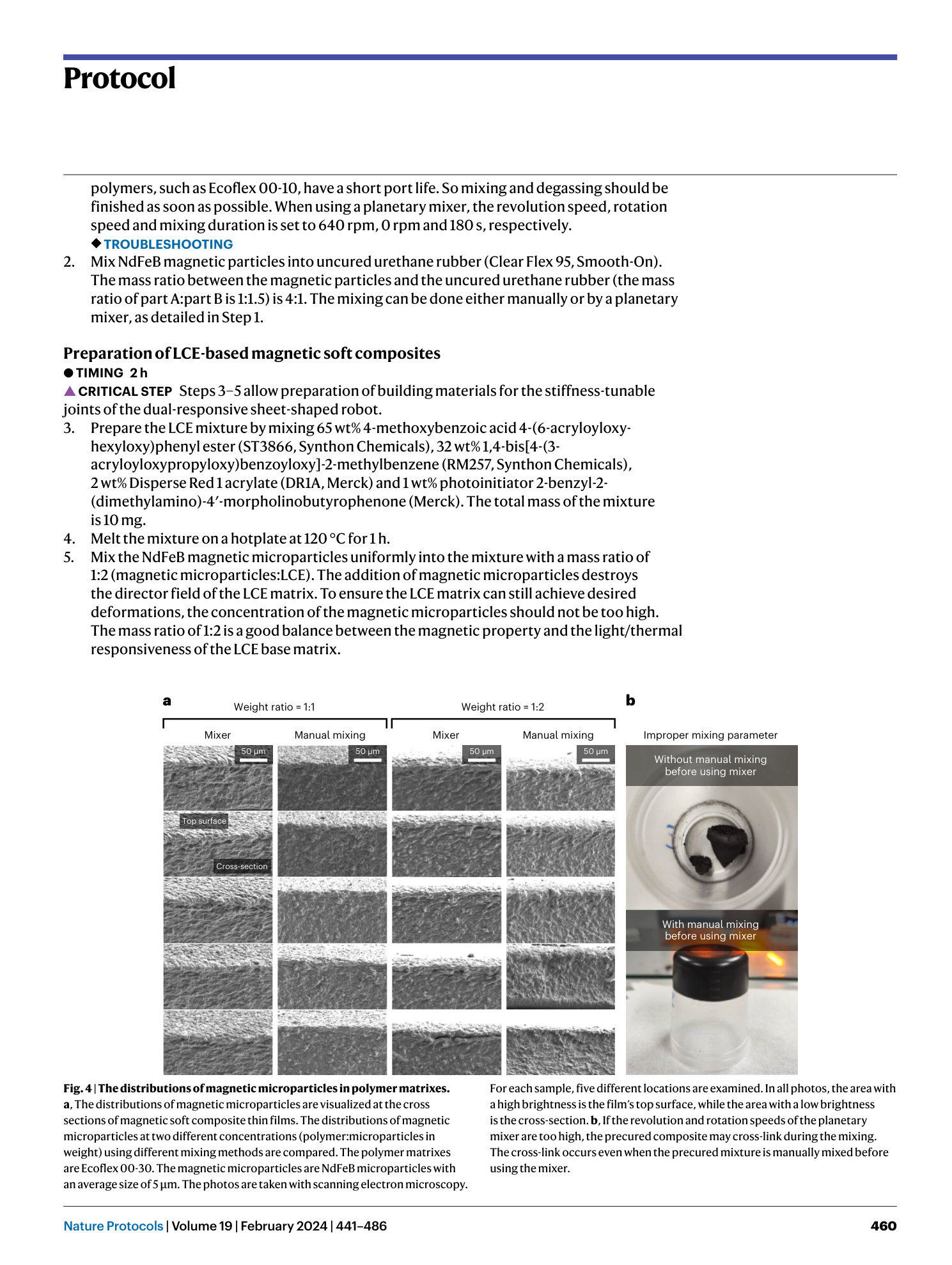

Fig. 4: The distributions of magnetic microparticles in polymer matrixes.
Figure 5

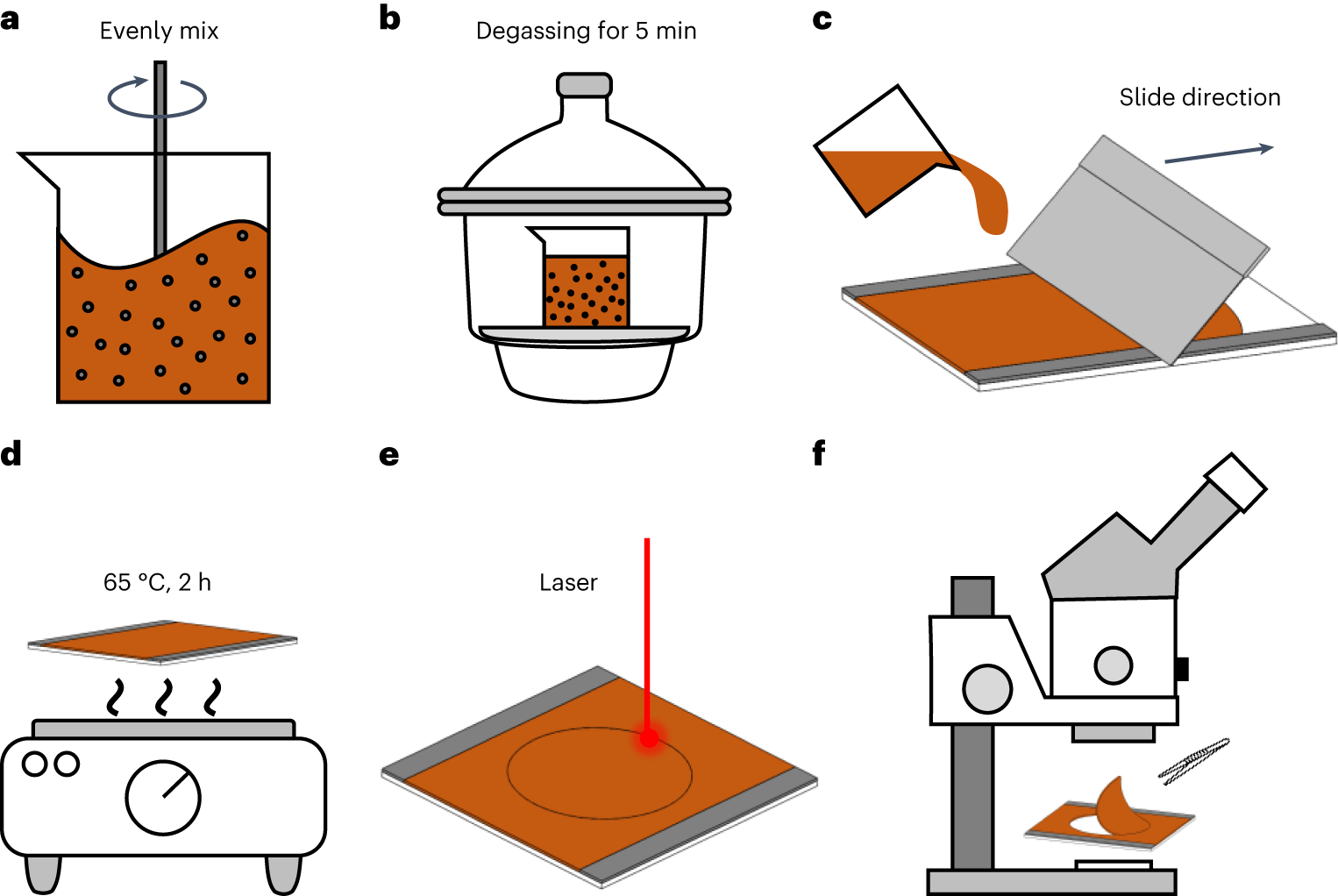

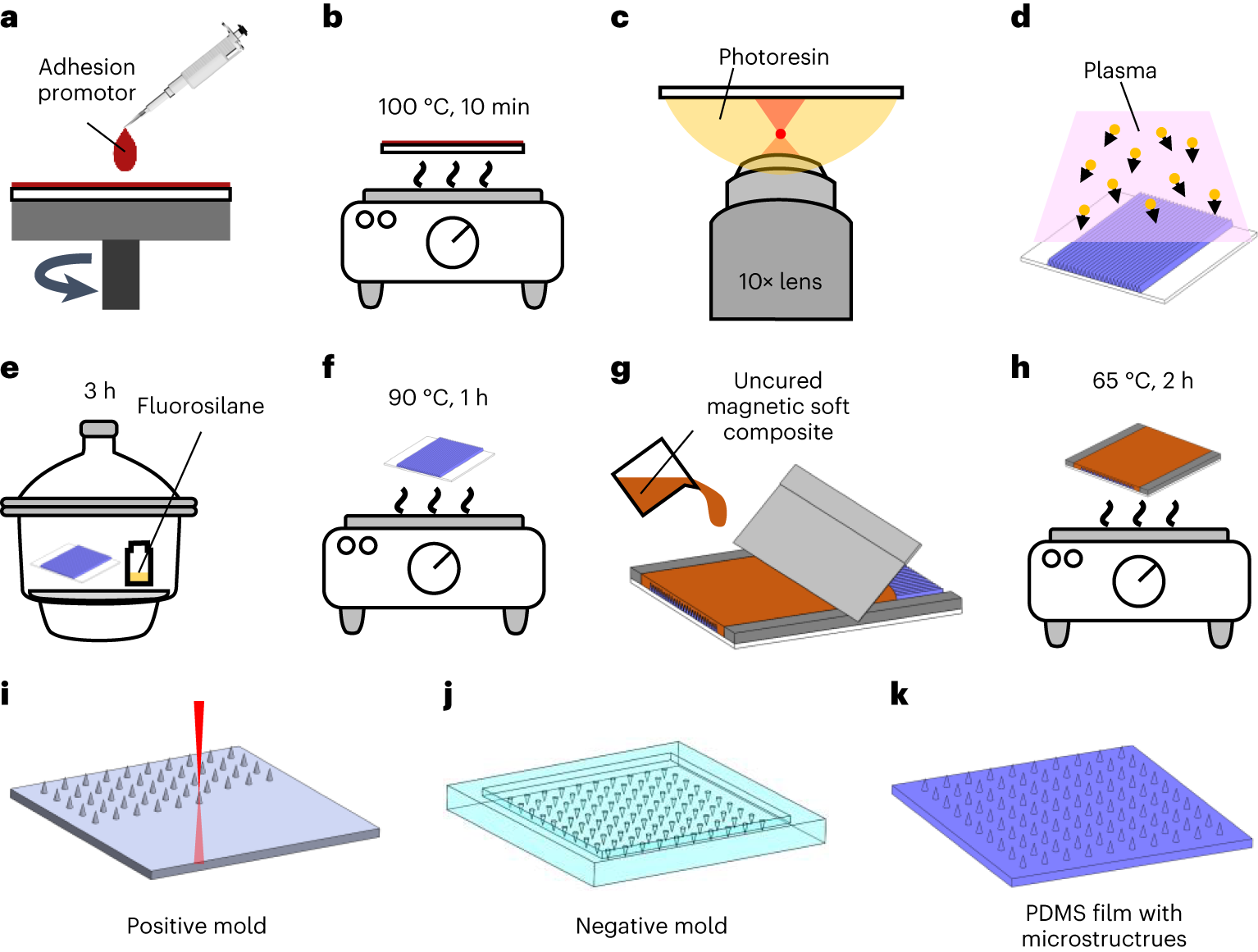

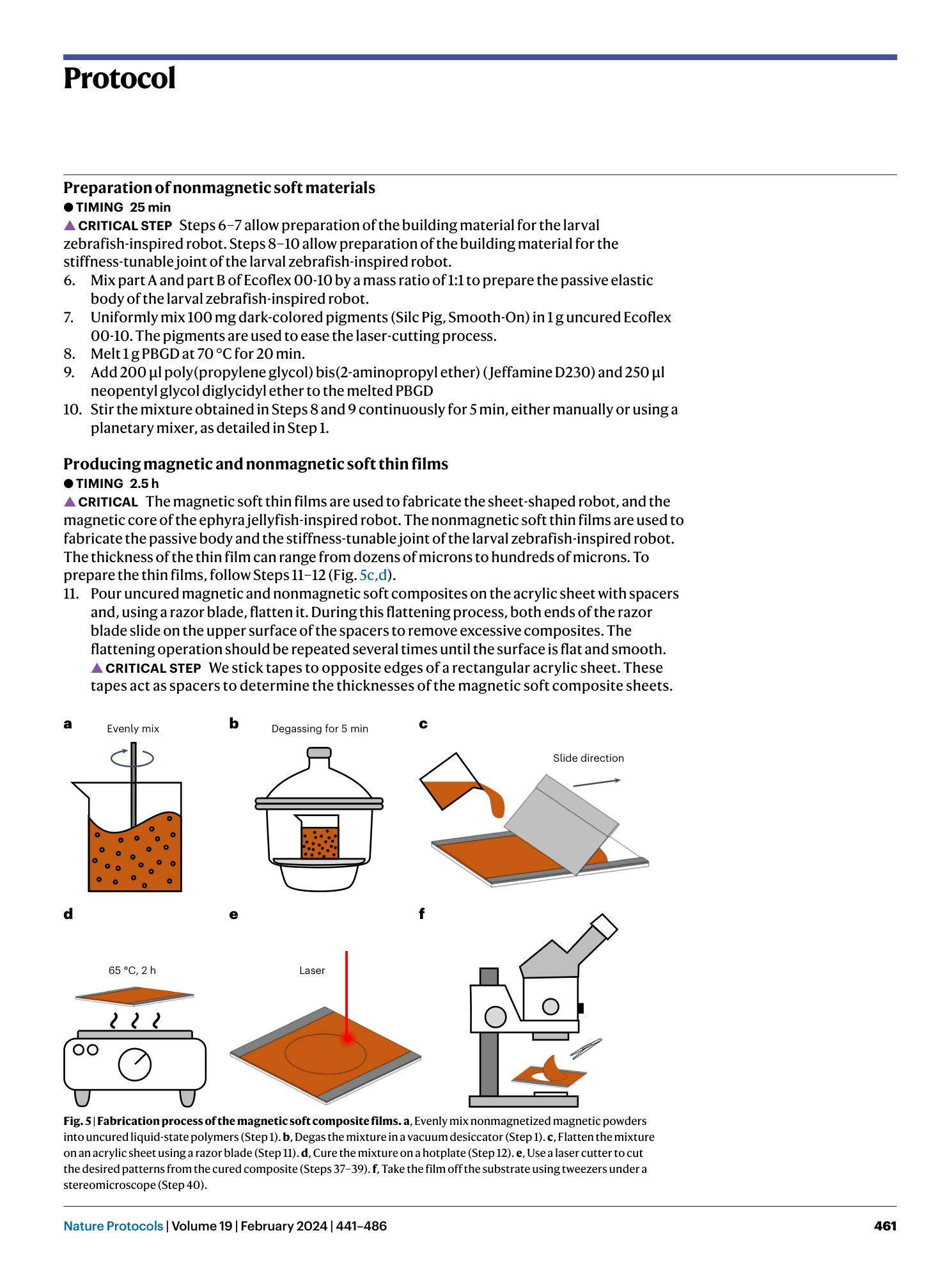

Fig. 5: Fabrication process of the magnetic soft composite films.
Figure 6

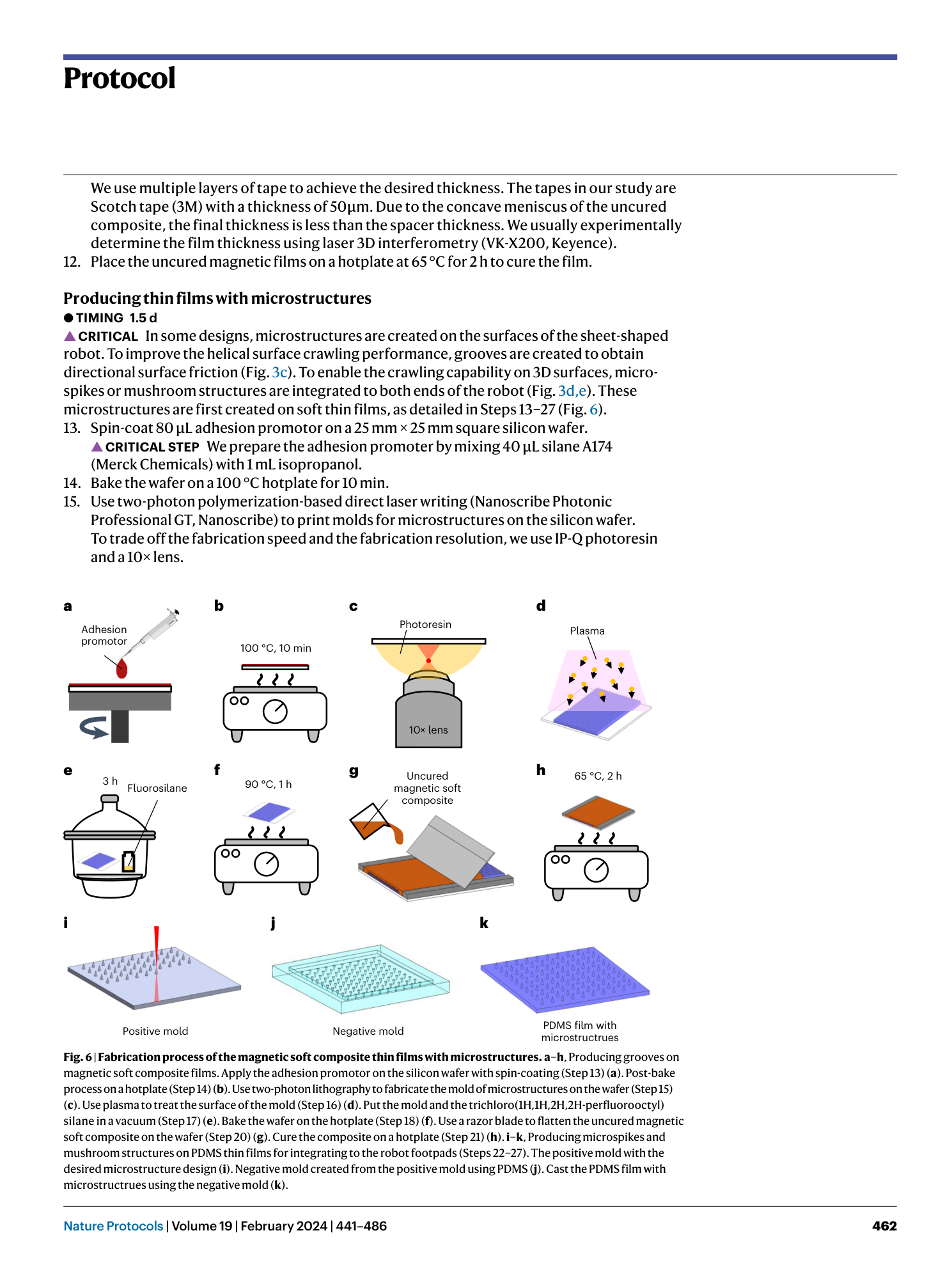

Fig. 6: Fabrication process of the magnetic soft composite thin films with microstructures.
Figure 7

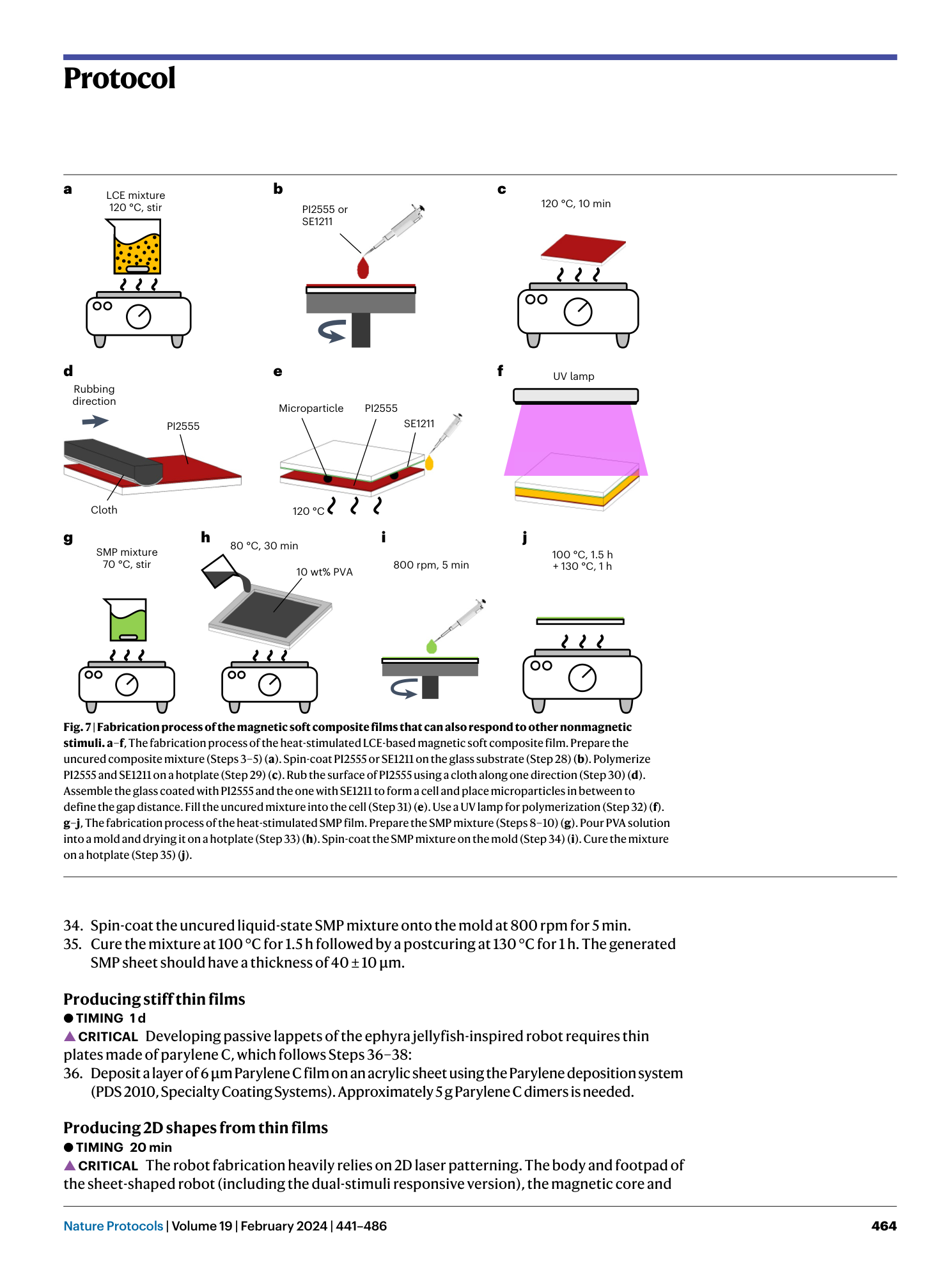

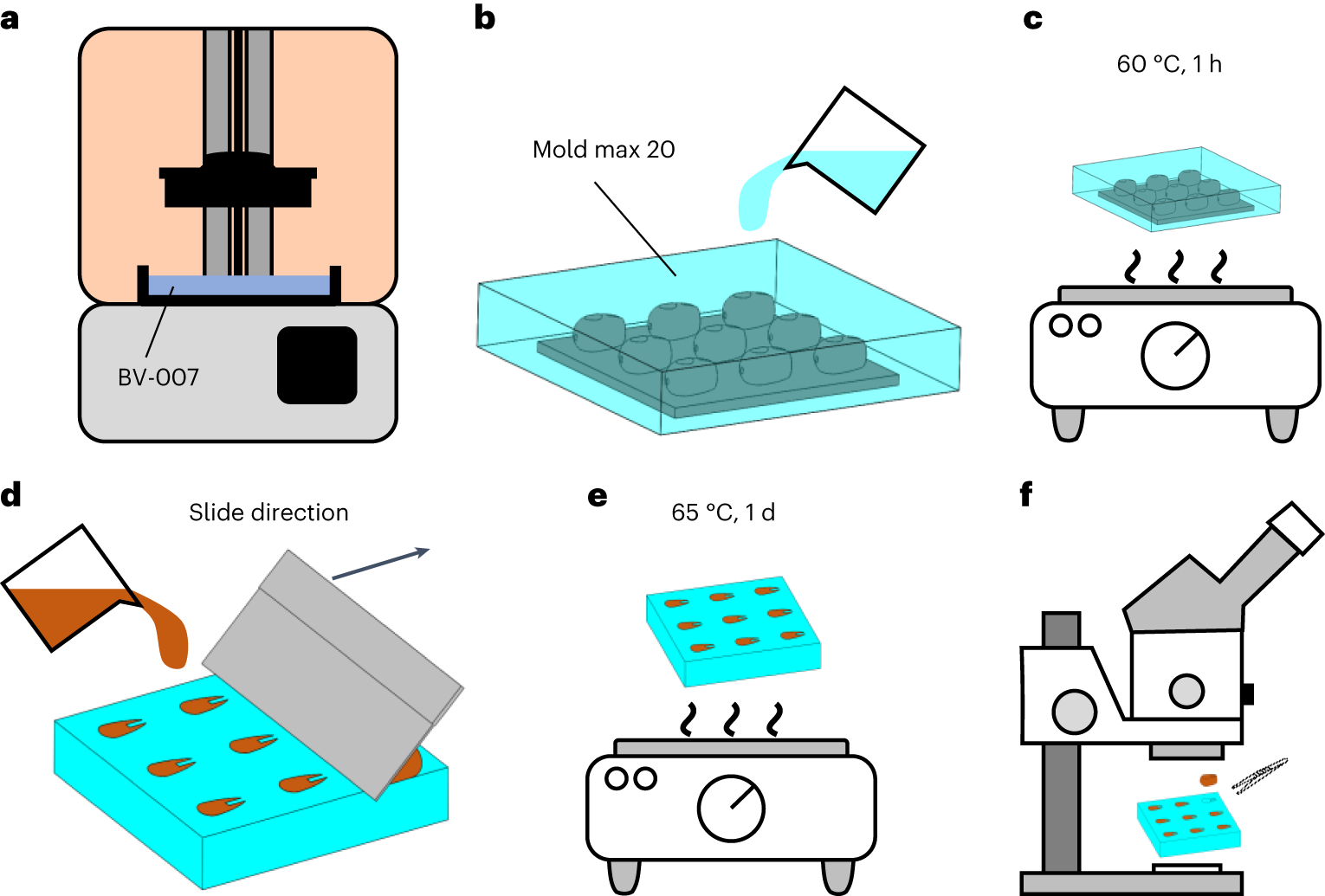

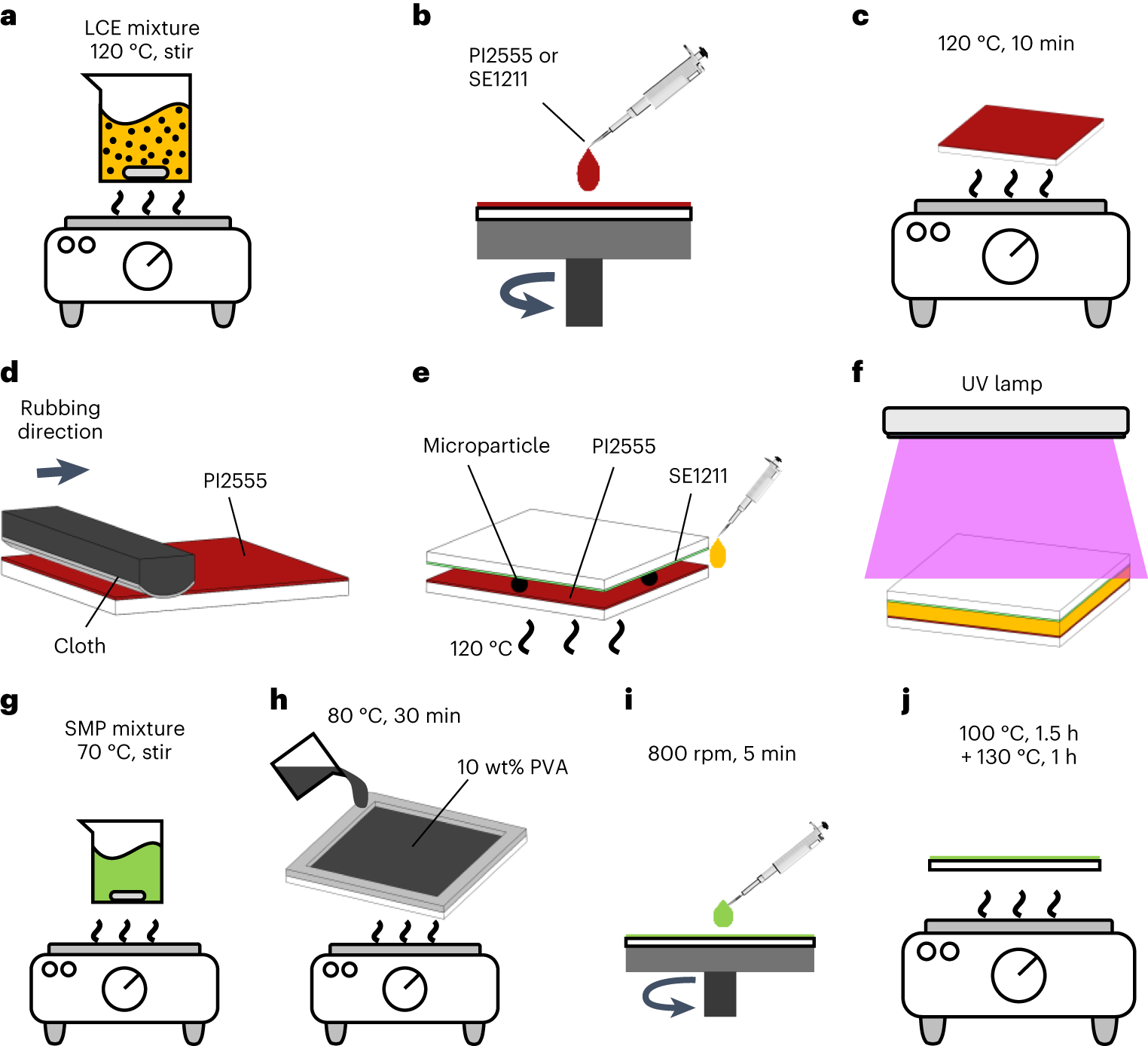

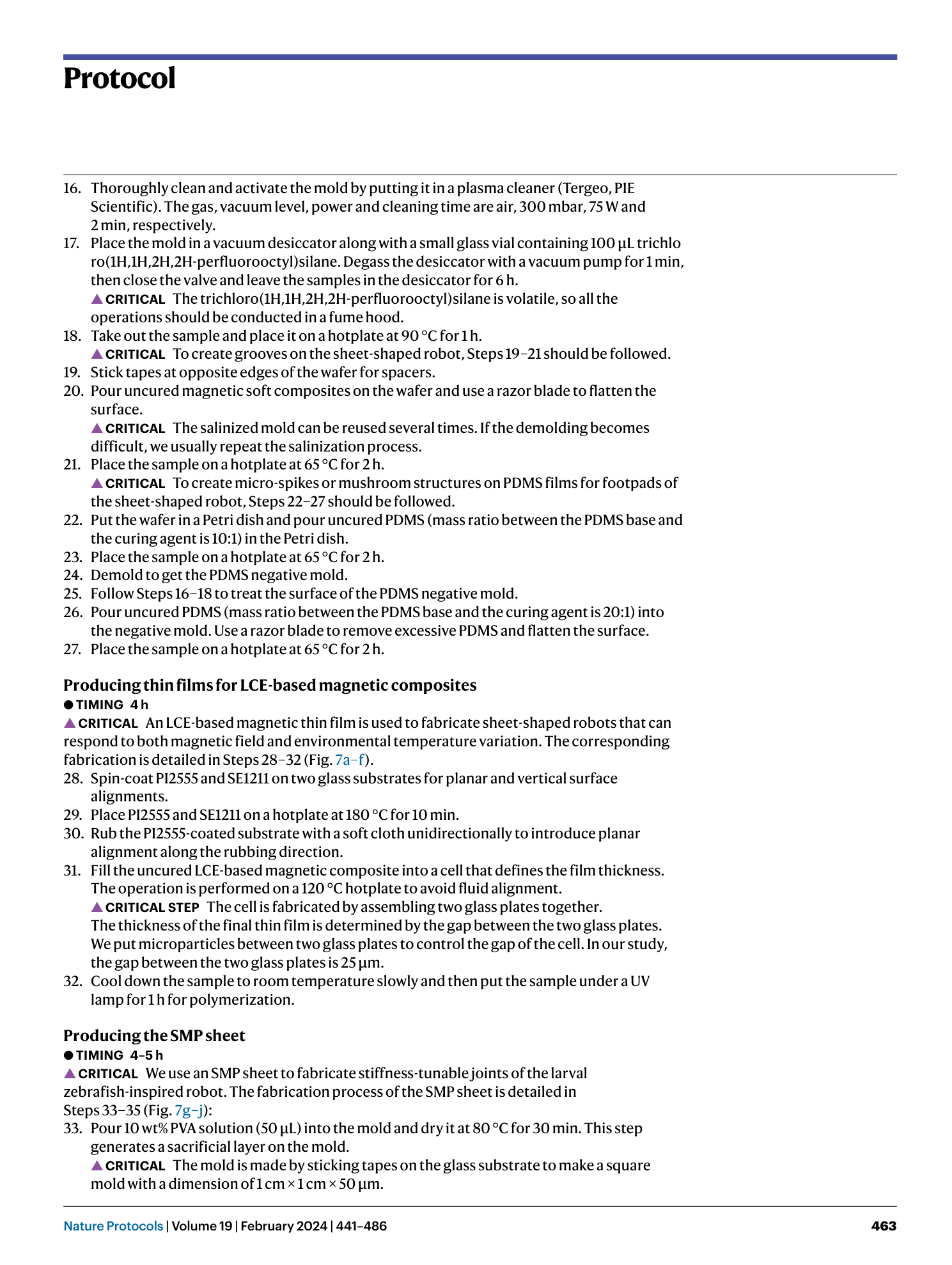

Fig. 7: Fabrication process of the magnetic soft composite films that can also respond to other nonmagnetic stimuli.
Figure 8
Fig. 7: Fabrication process of the magnetic soft composite films that can also respond to other nonmagnetic stimuli.
Figure 9

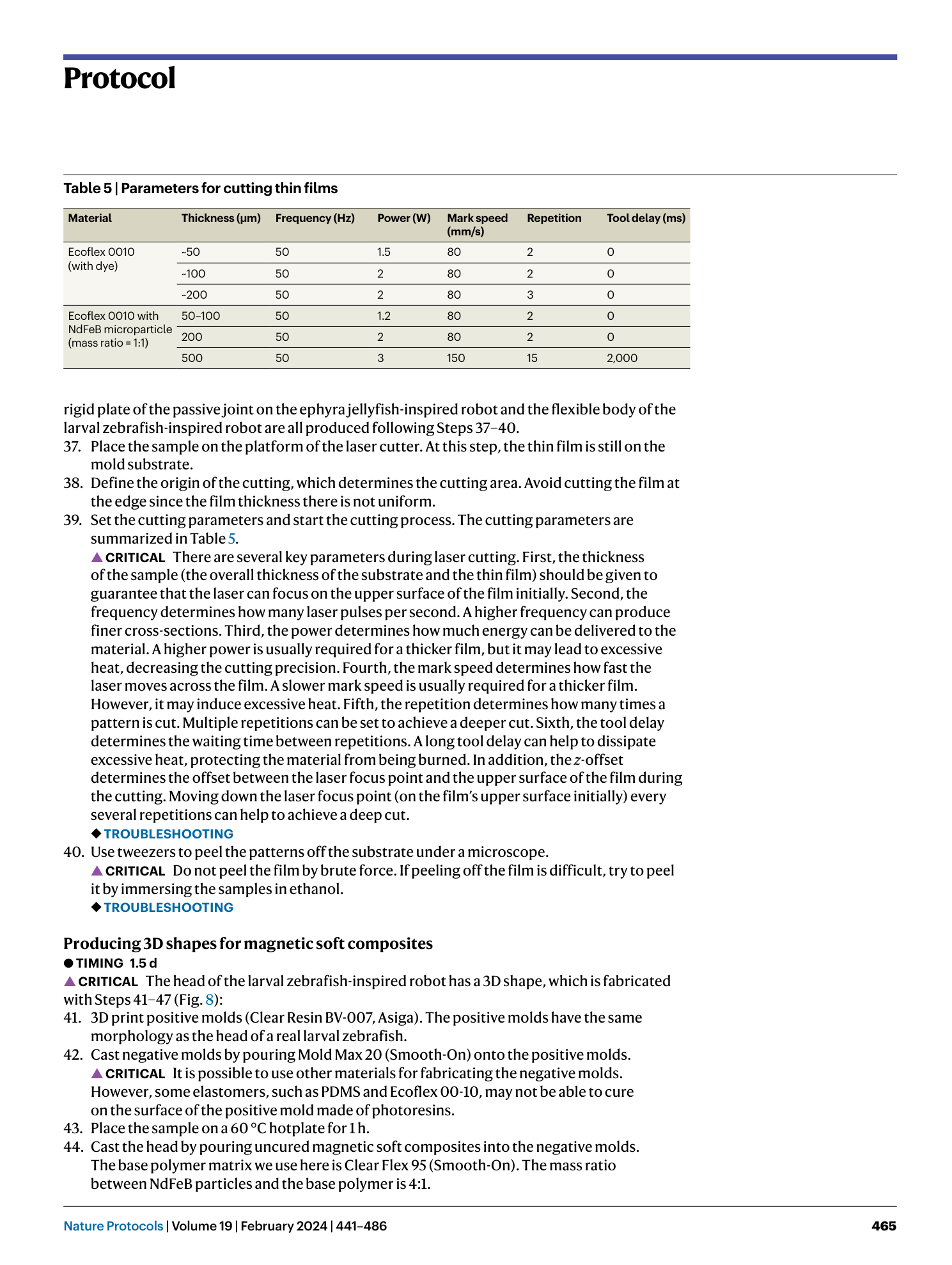

Fig. 8: Producing 3D shapes for the magnetic soft composite materials.
Figure 10
Fig. 8: Producing 3D shapes for the magnetic soft composite materials.
Figure 11

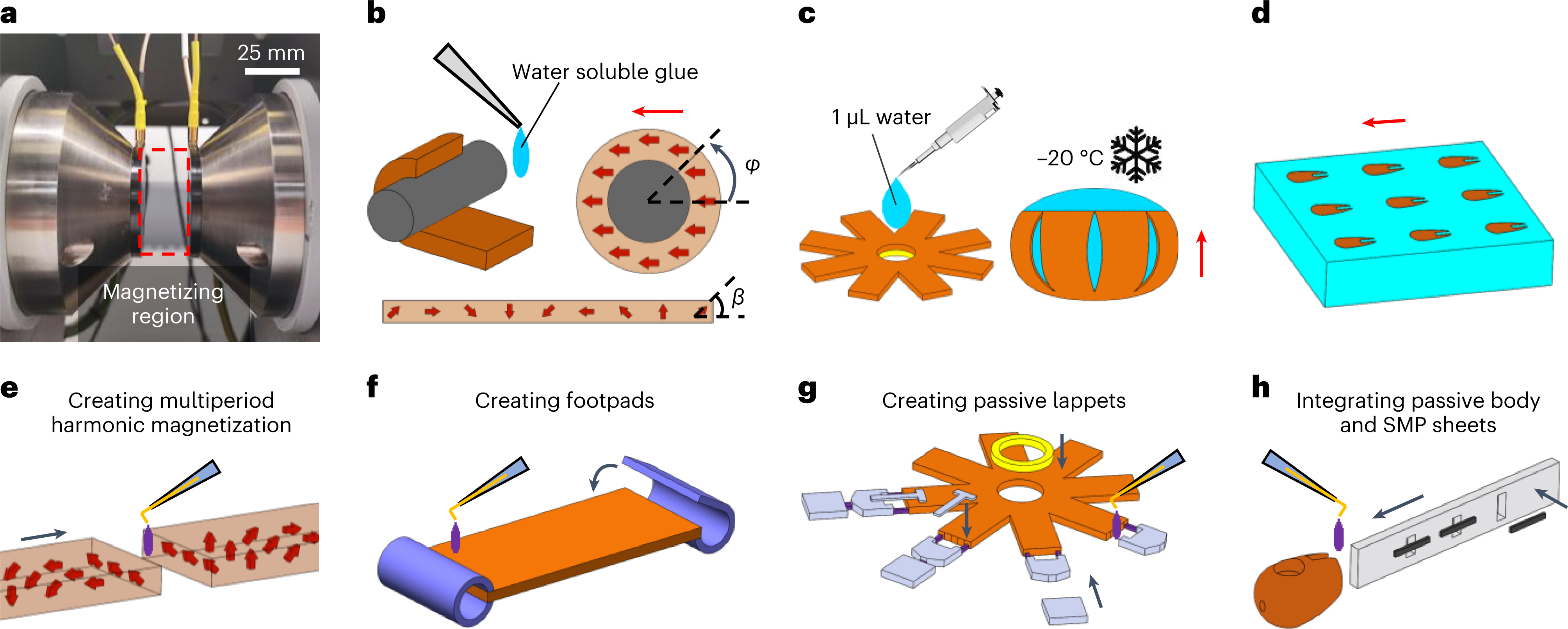

Fig. 9: Magnetizing and assembly of the soft robot components.
Figure 12
Fig. 9: Magnetizing and assembly of the soft robot components.
Figure 13

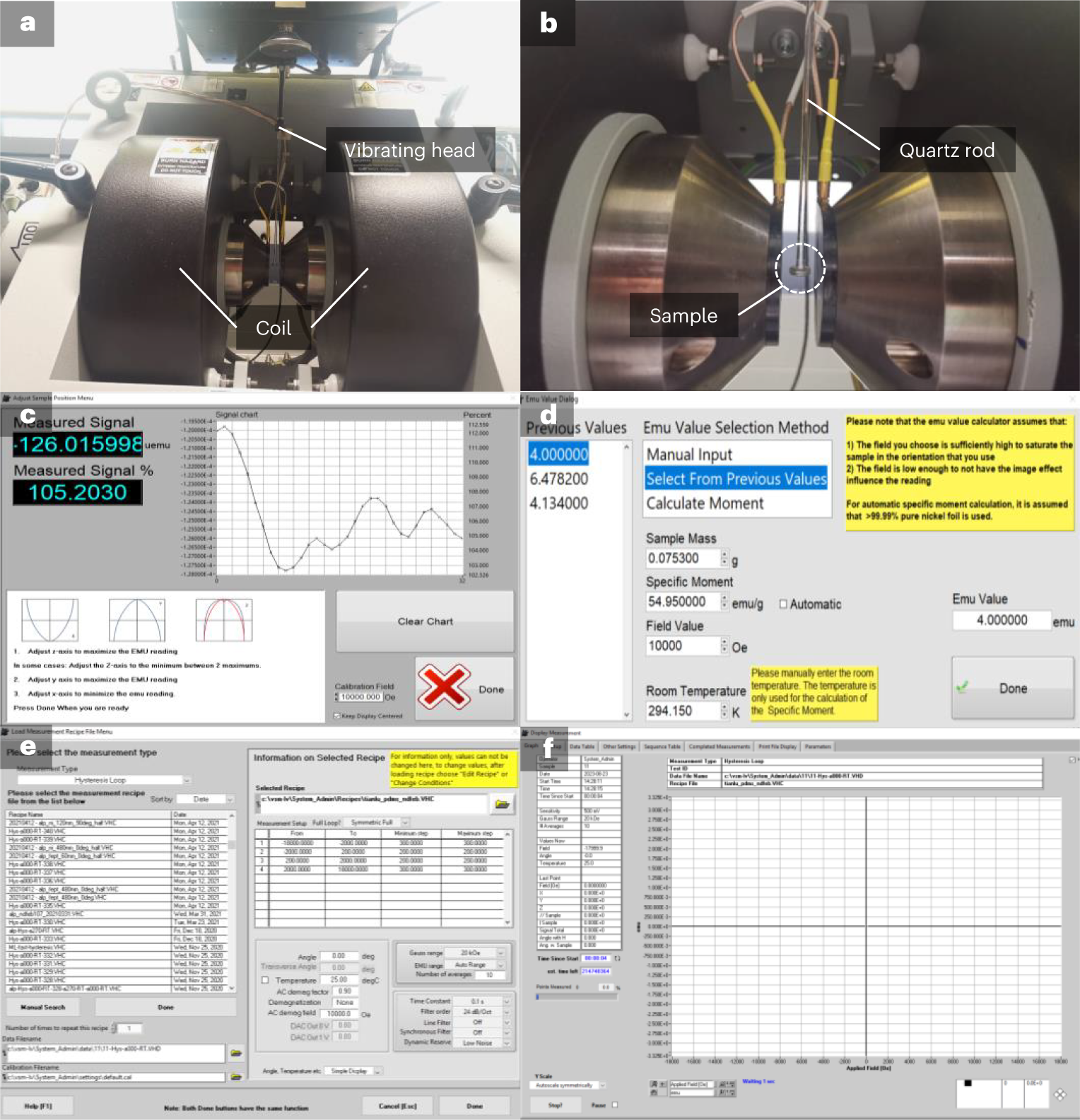

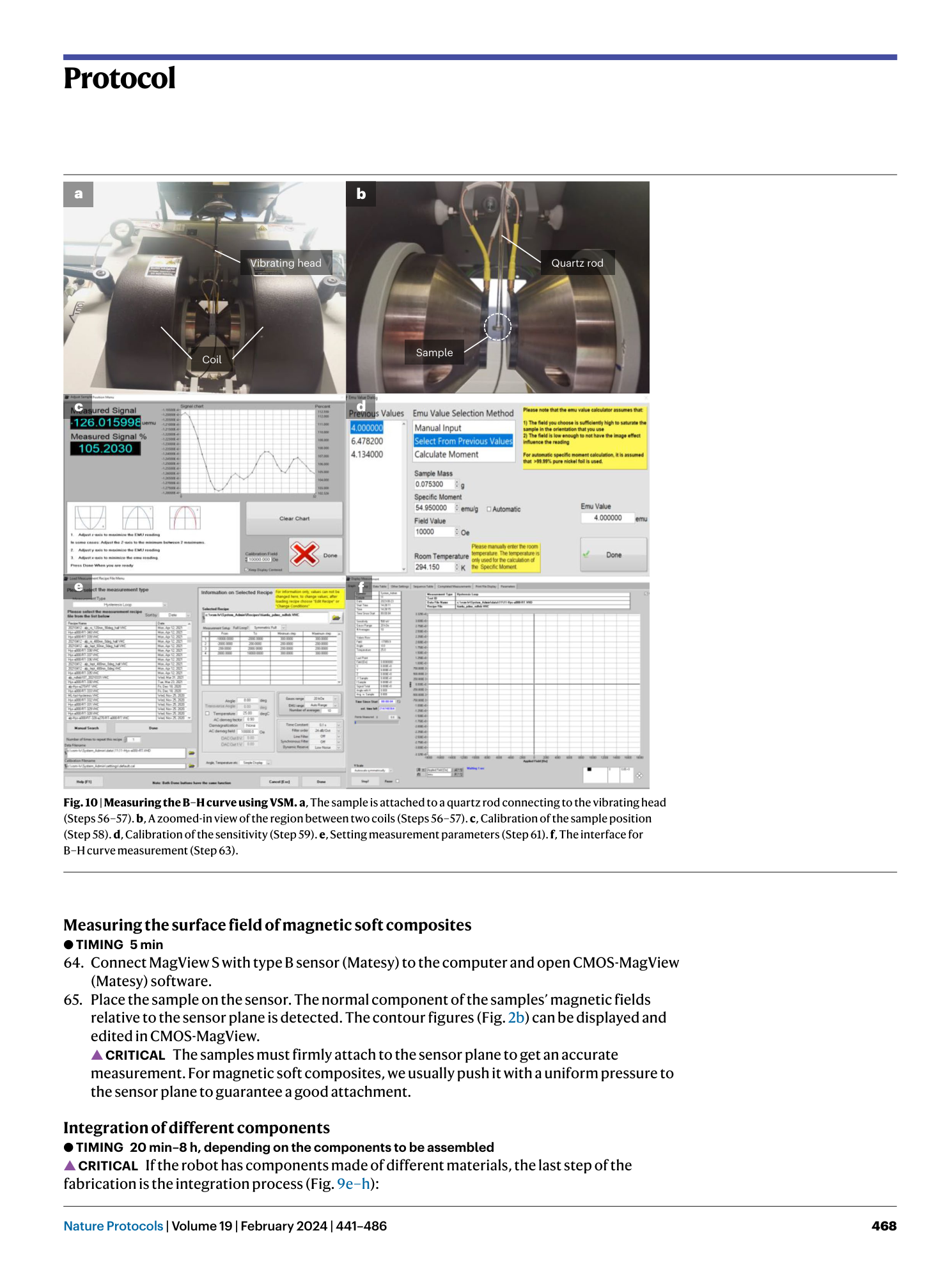

Fig. 10: Measuring the B–H curve using VSM.
Figure 14
Fig. 10: Measuring the B–H curve using VSM.
Figure 15

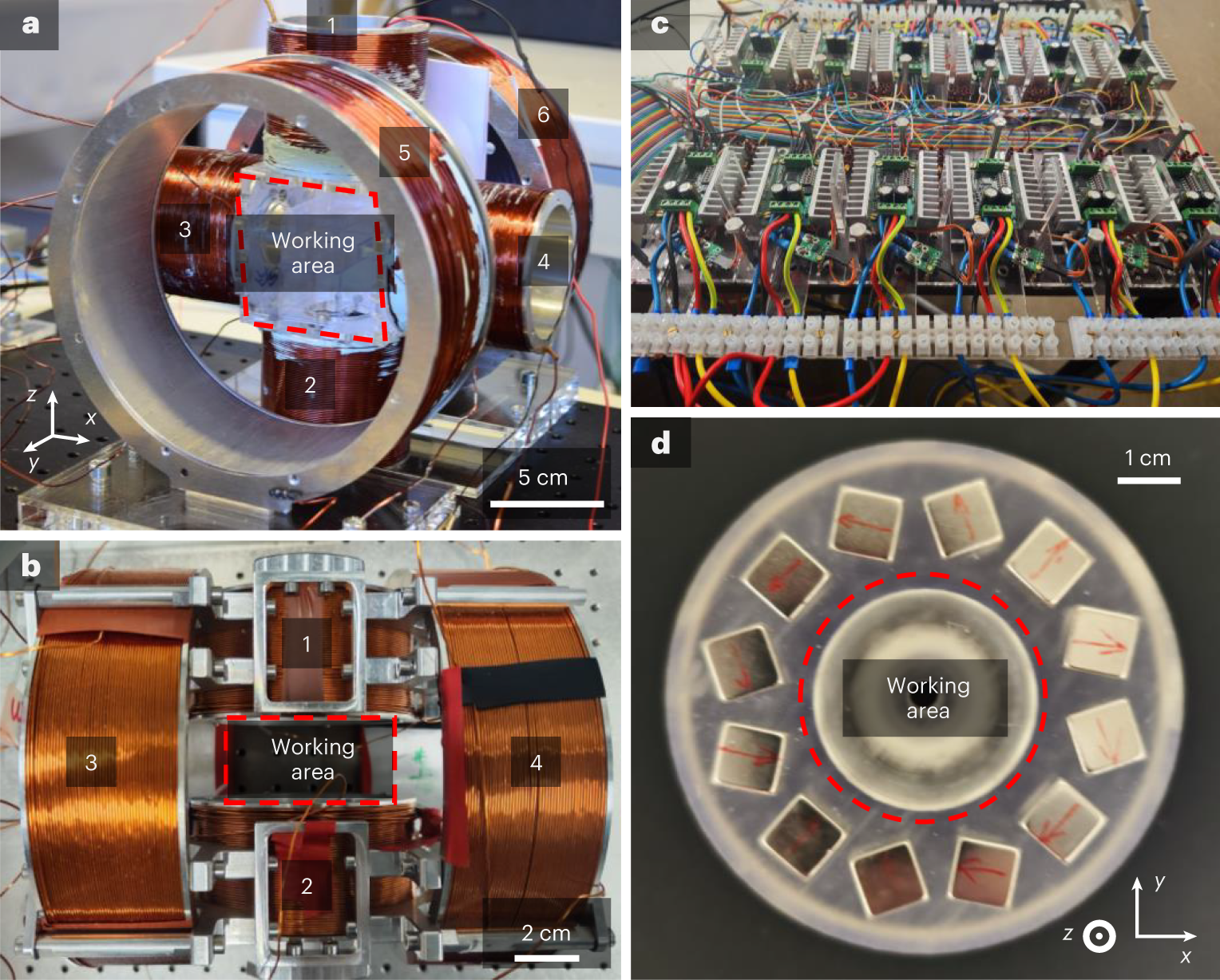

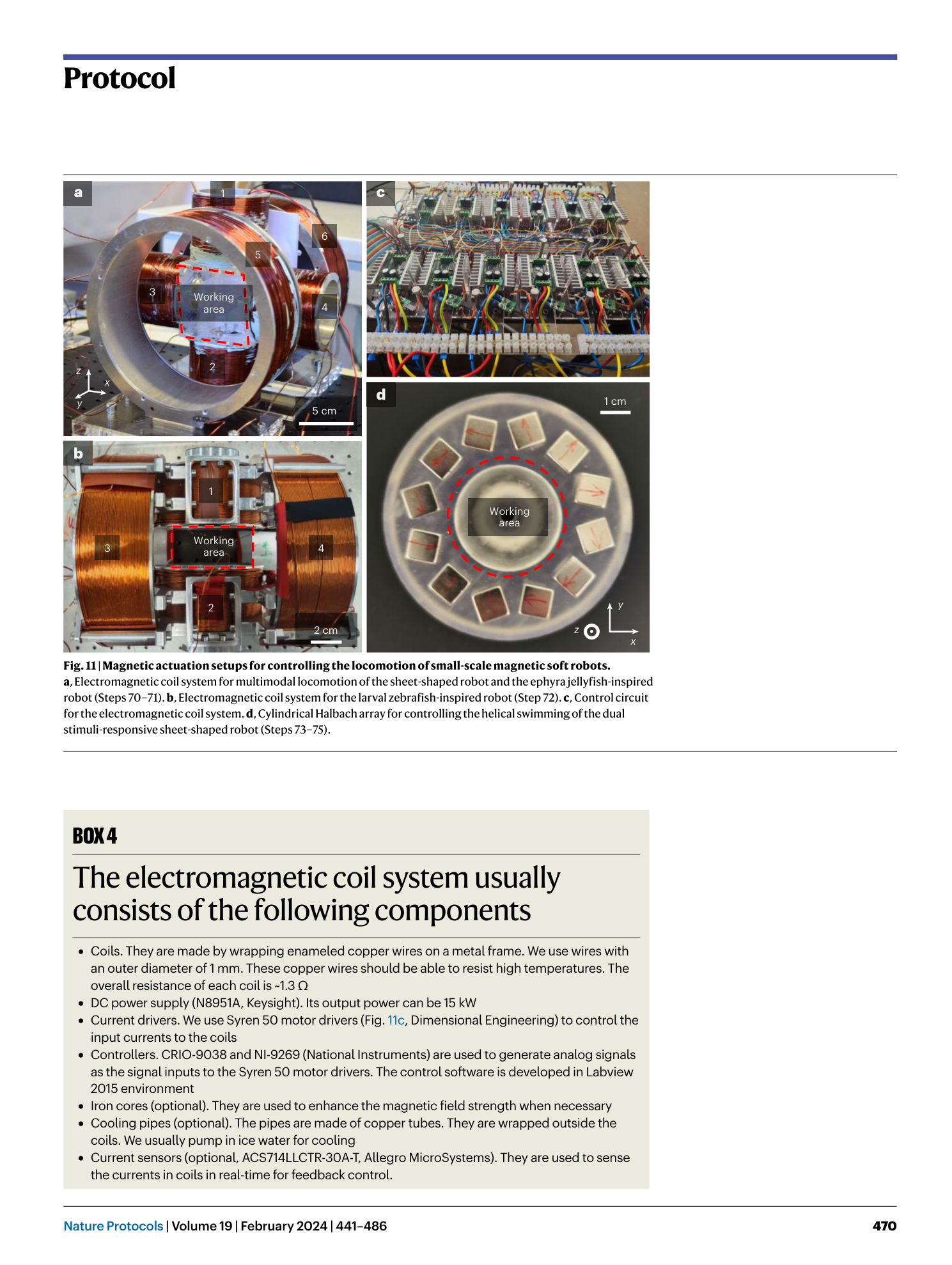

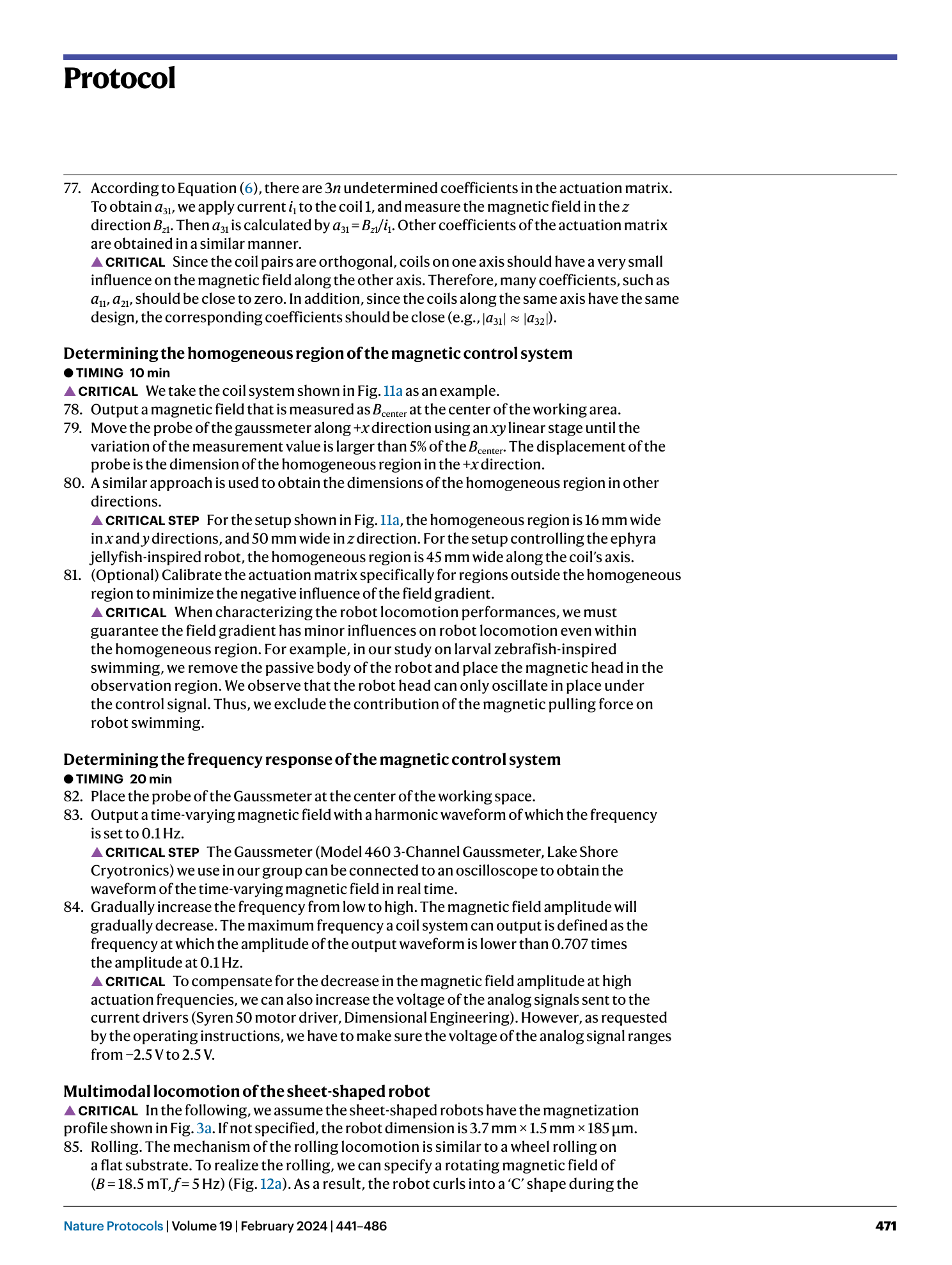

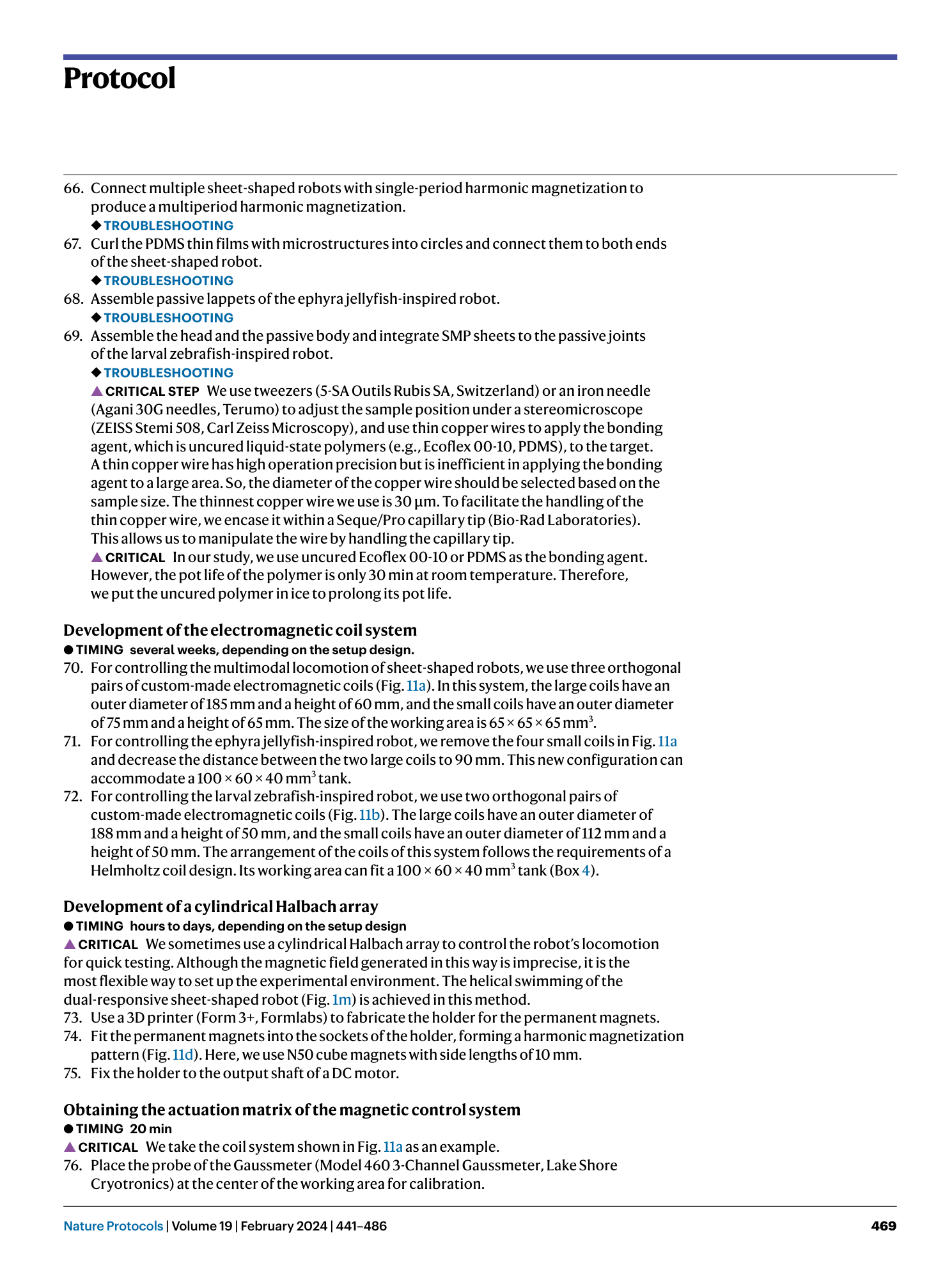

Fig. 11: Magnetic actuation setups for controlling the locomotion of small-scale magnetic soft robots.
Figure 16
Fig. 11: Magnetic actuation setups for controlling the locomotion of small-scale magnetic soft robots.
Figure 17

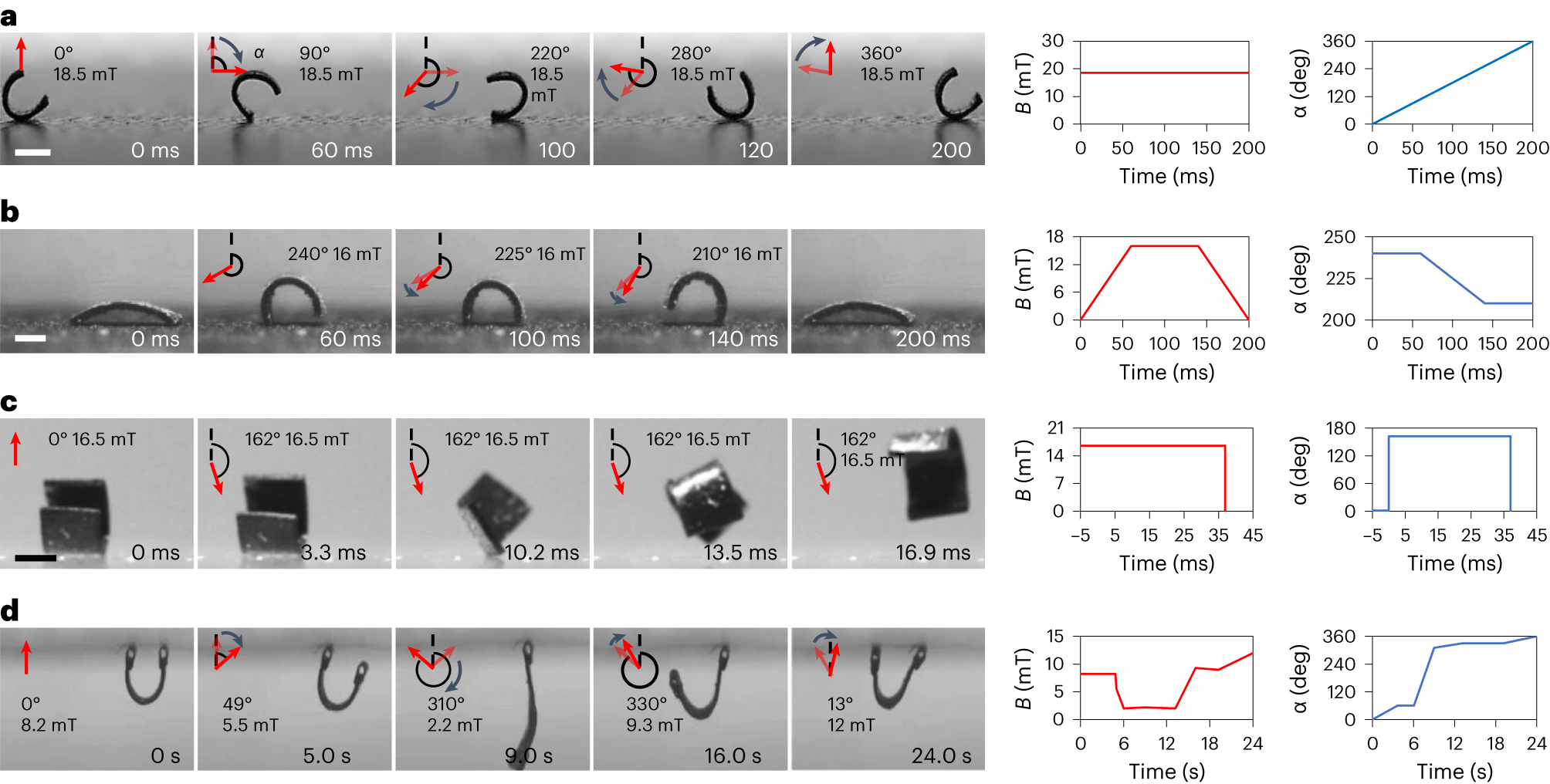

Fig. 12: Realization of different locomotion modes of the sheet-shaped robot on solid surfaces.
Figure 18
Fig. 12: Realization of different locomotion modes of the sheet-shaped robot on solid surfaces.
Figure 19

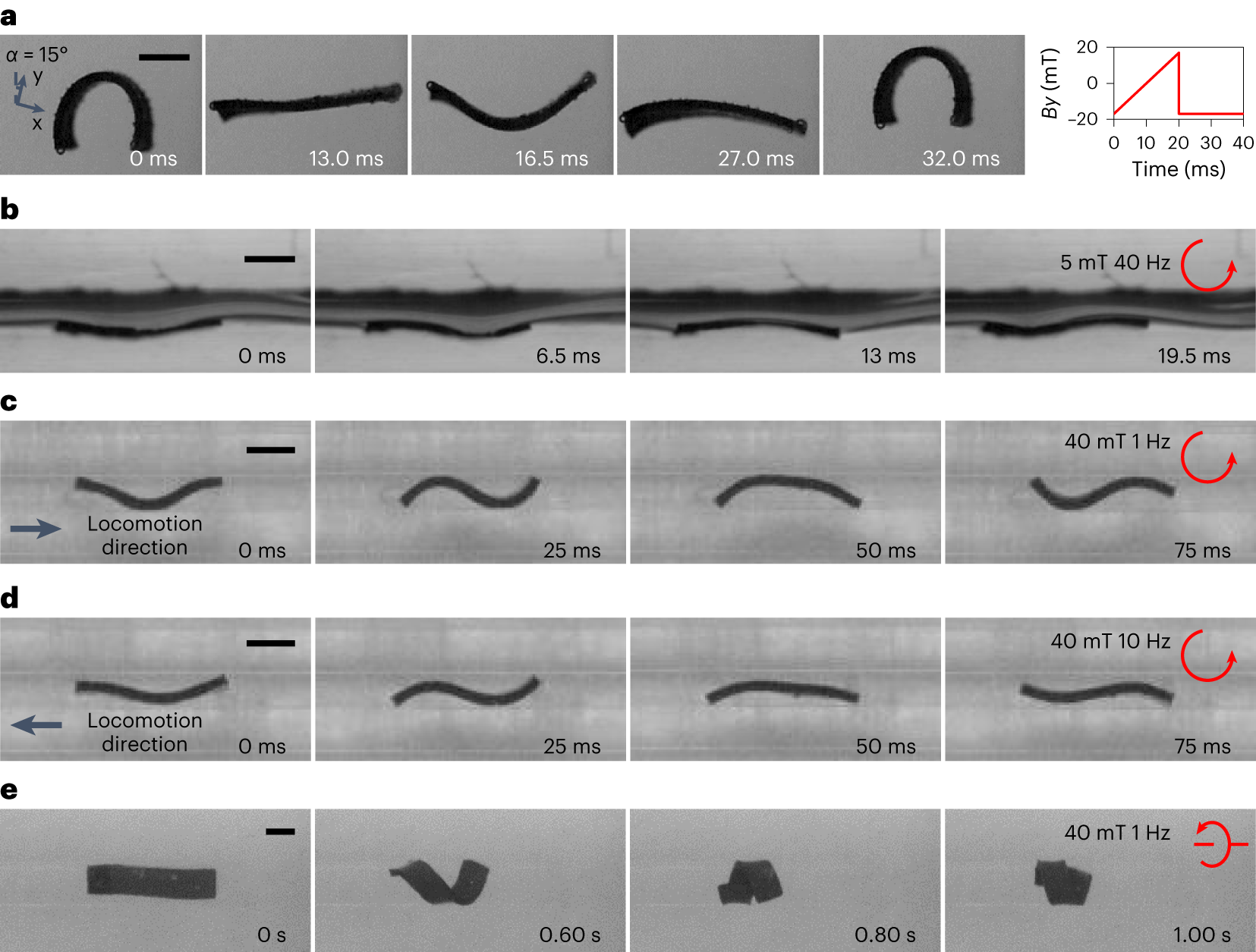

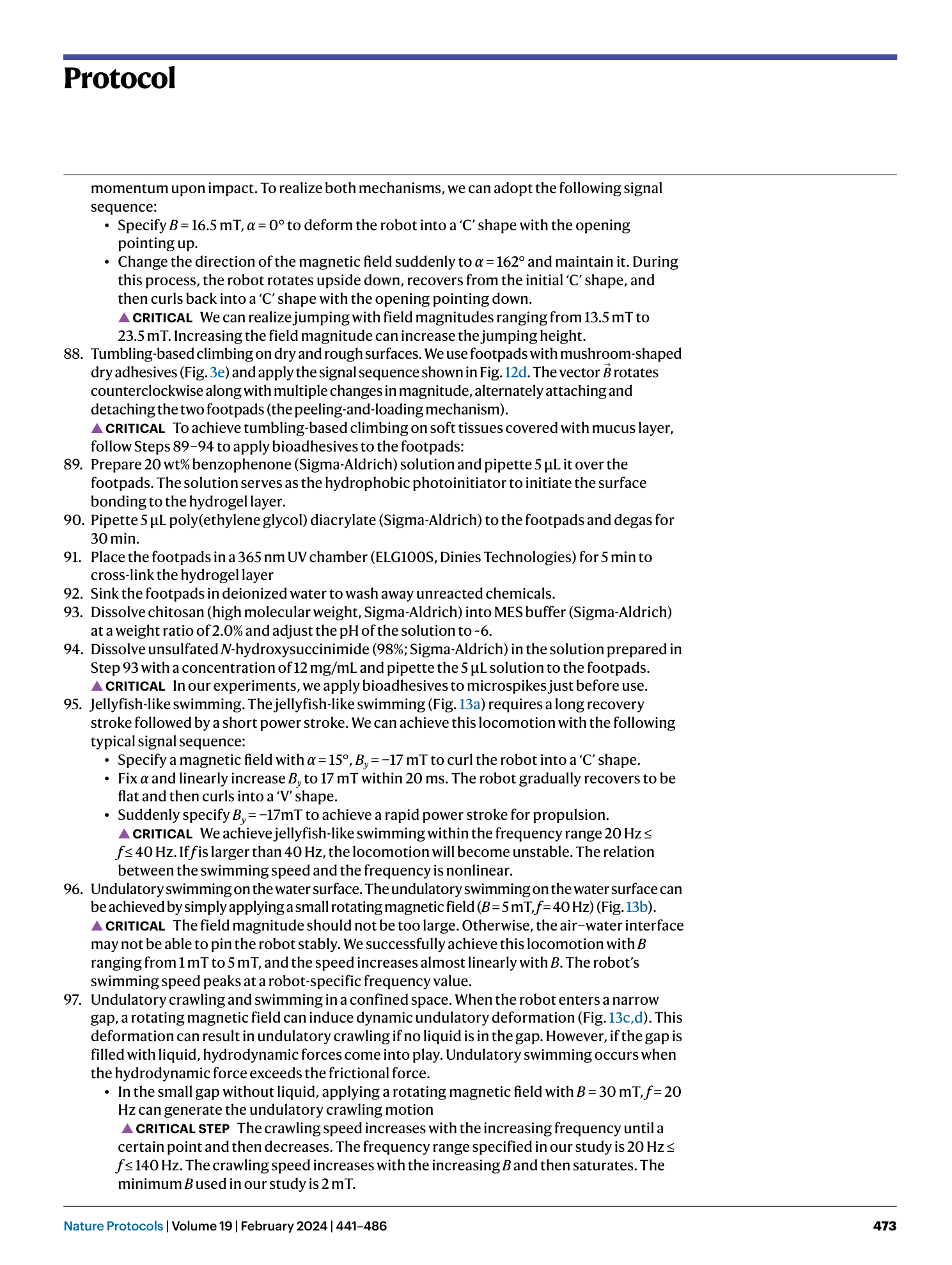

Fig. 13: Realization of locomotion modes of the sheet-shaped robot on water–air interfaces, within water, and in tubular structures with internal liquid flows.
Figure 20
Fig. 13: Realization of locomotion modes of the sheet-shaped robot on water–air interfaces, within water, and in tubular structures with internal liquid flows.
Figure 21

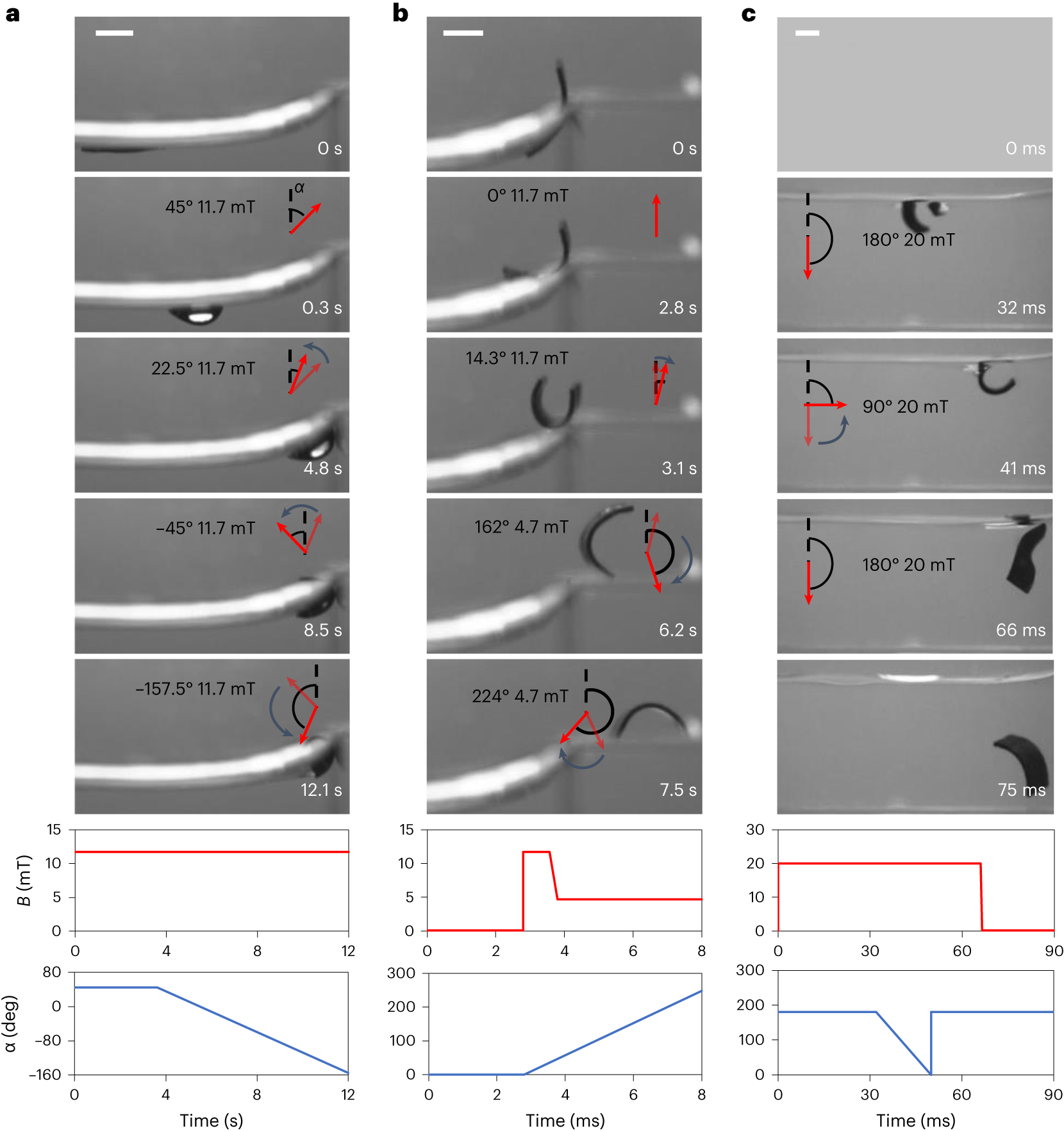

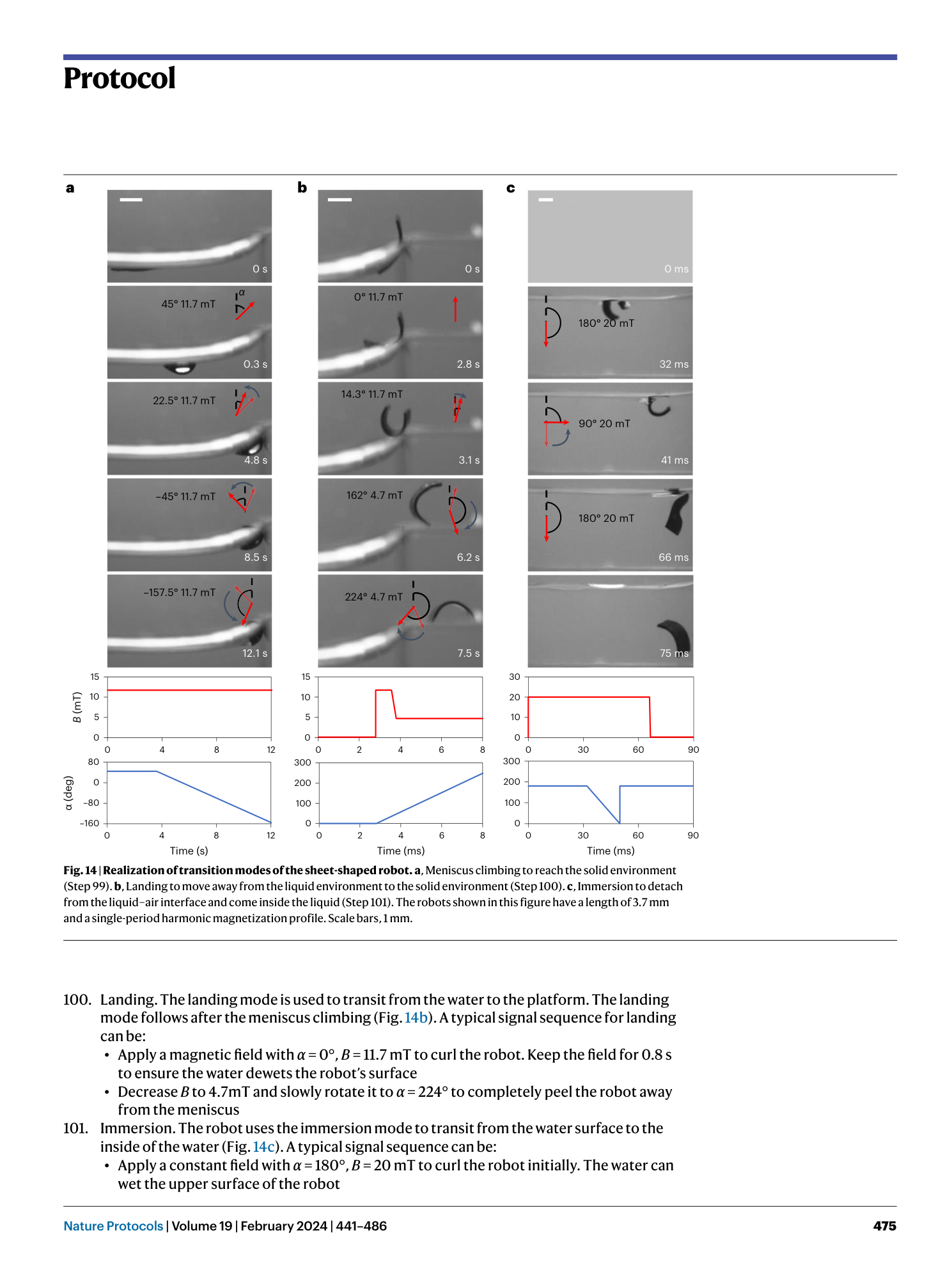

Fig. 14: Realization of transition modes of the sheet-shaped robot.
Figure 22
Fig. 14: Realization of transition modes of the sheet-shaped robot.
Figure 23

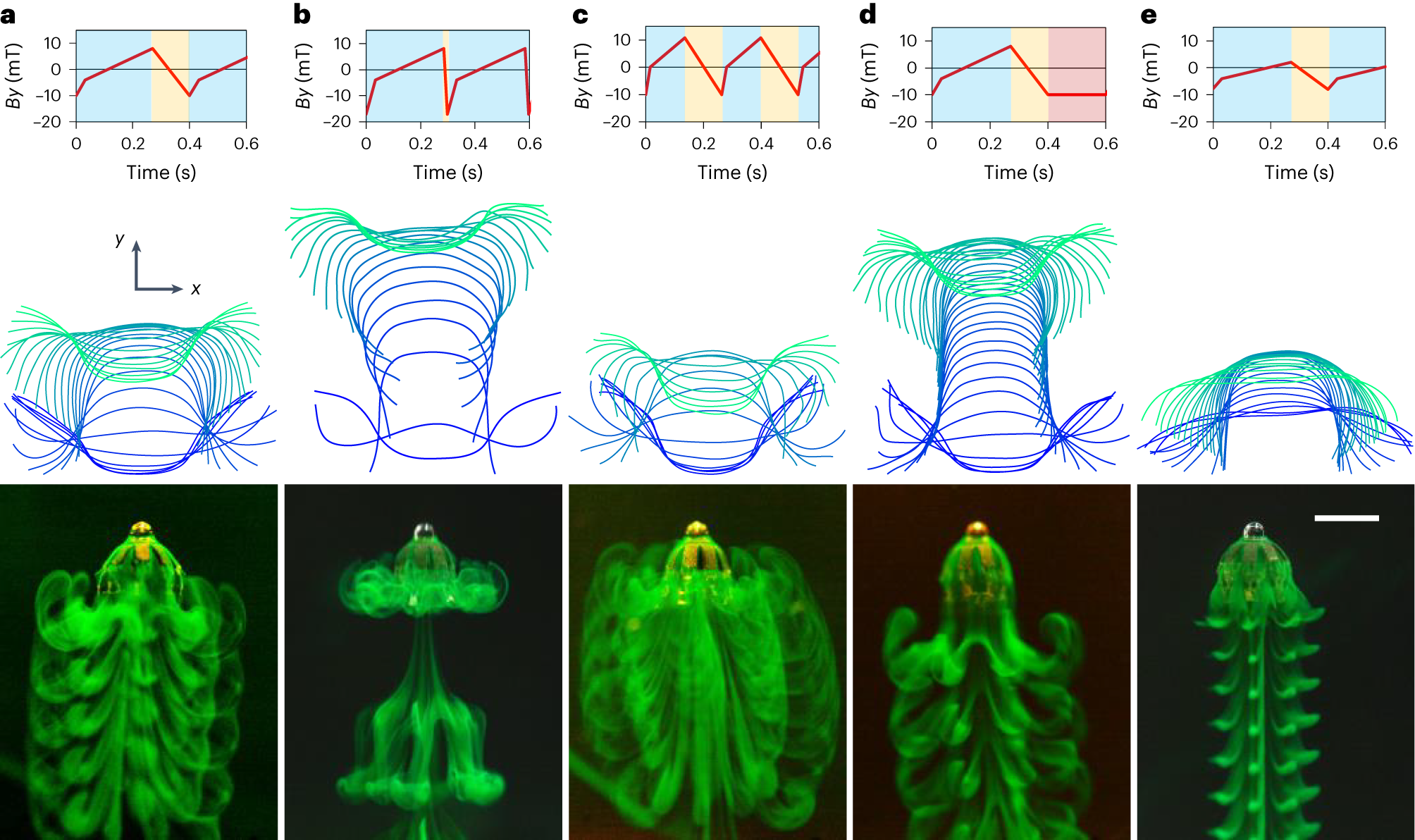

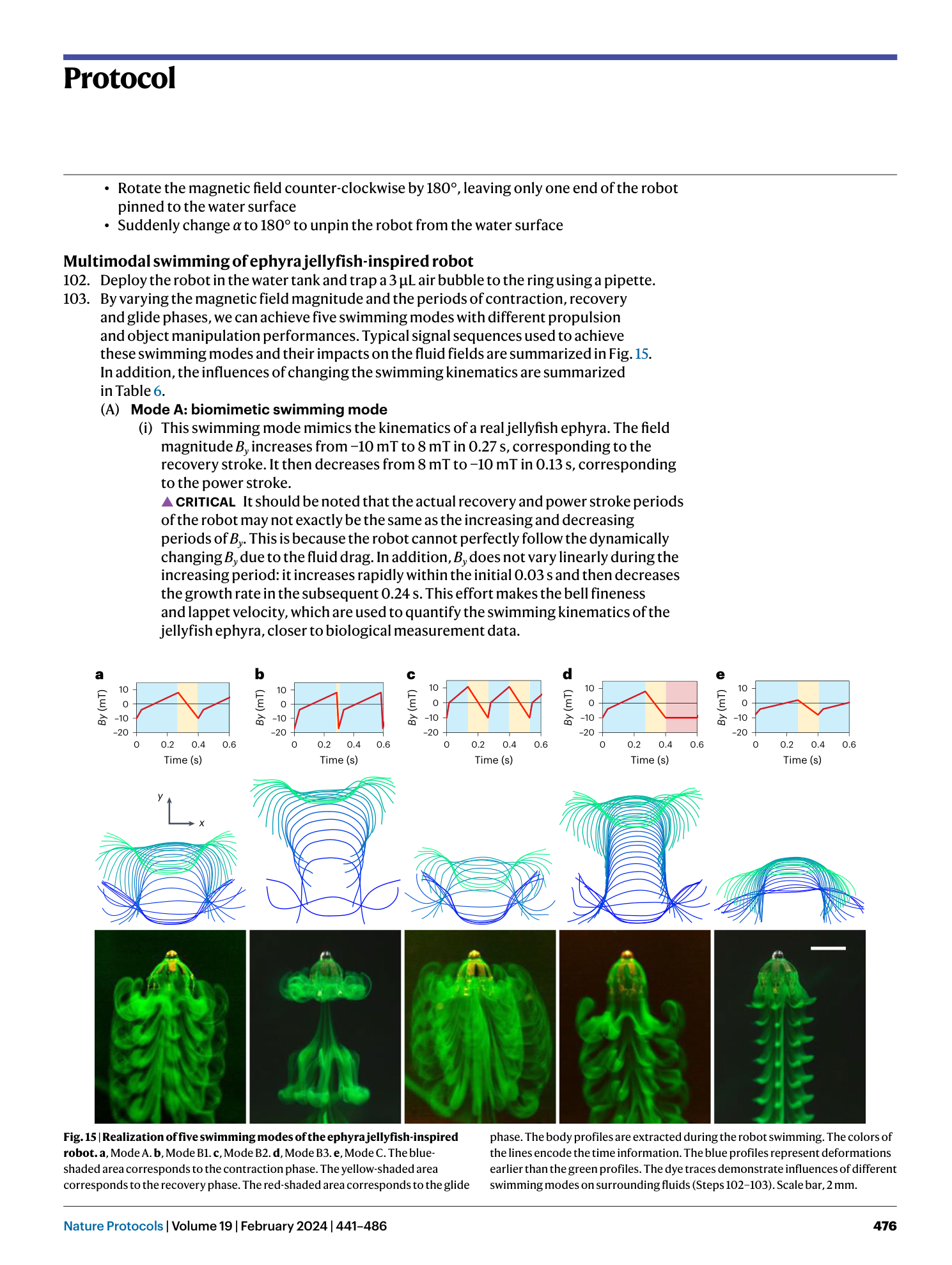

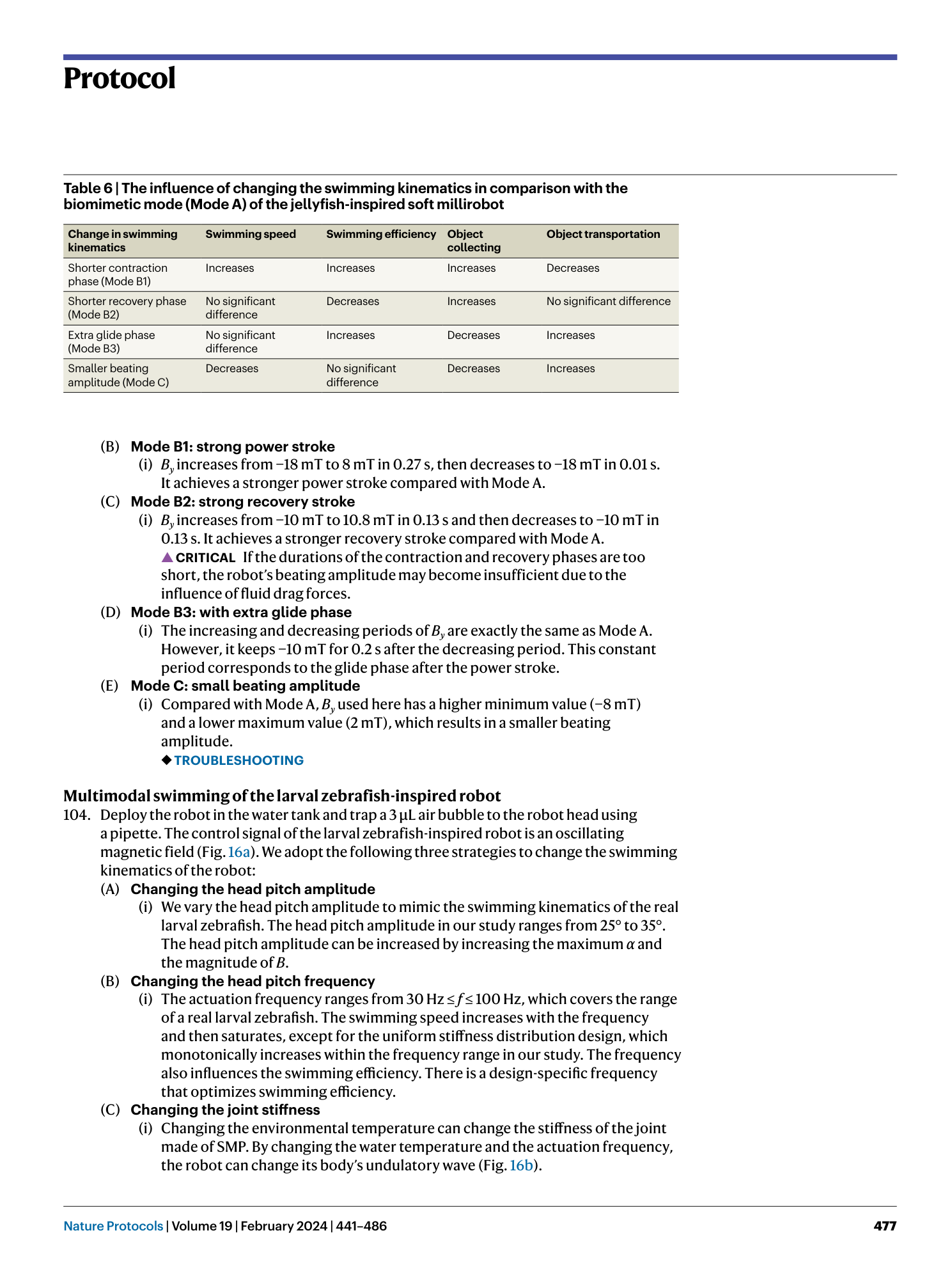

Fig. 15: Realization of five swimming modes of the ephyra jellyfish-inspired robot.
Figure 24
Fig. 15: Realization of five swimming modes of the ephyra jellyfish-inspired robot.
Figure 25

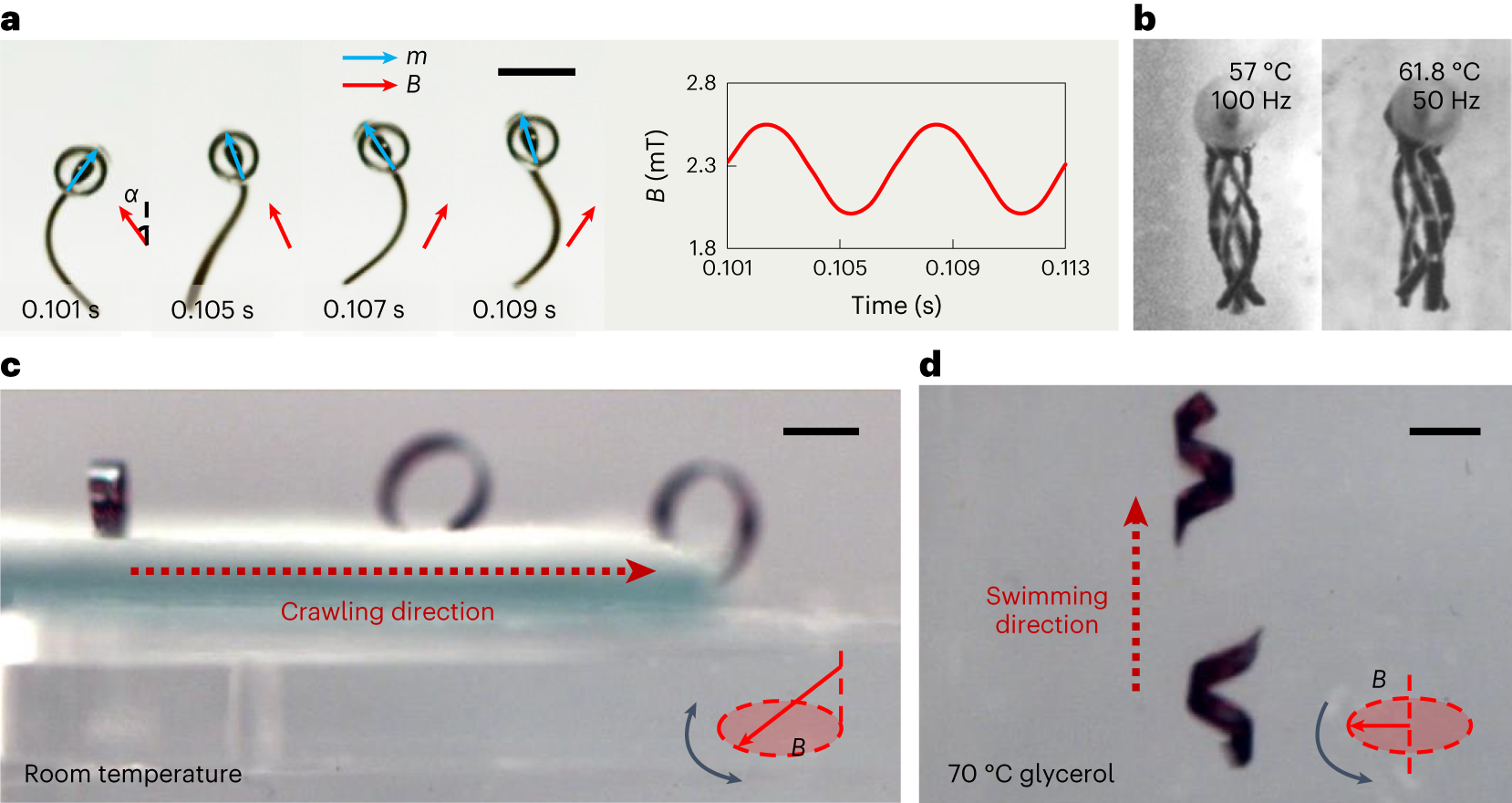

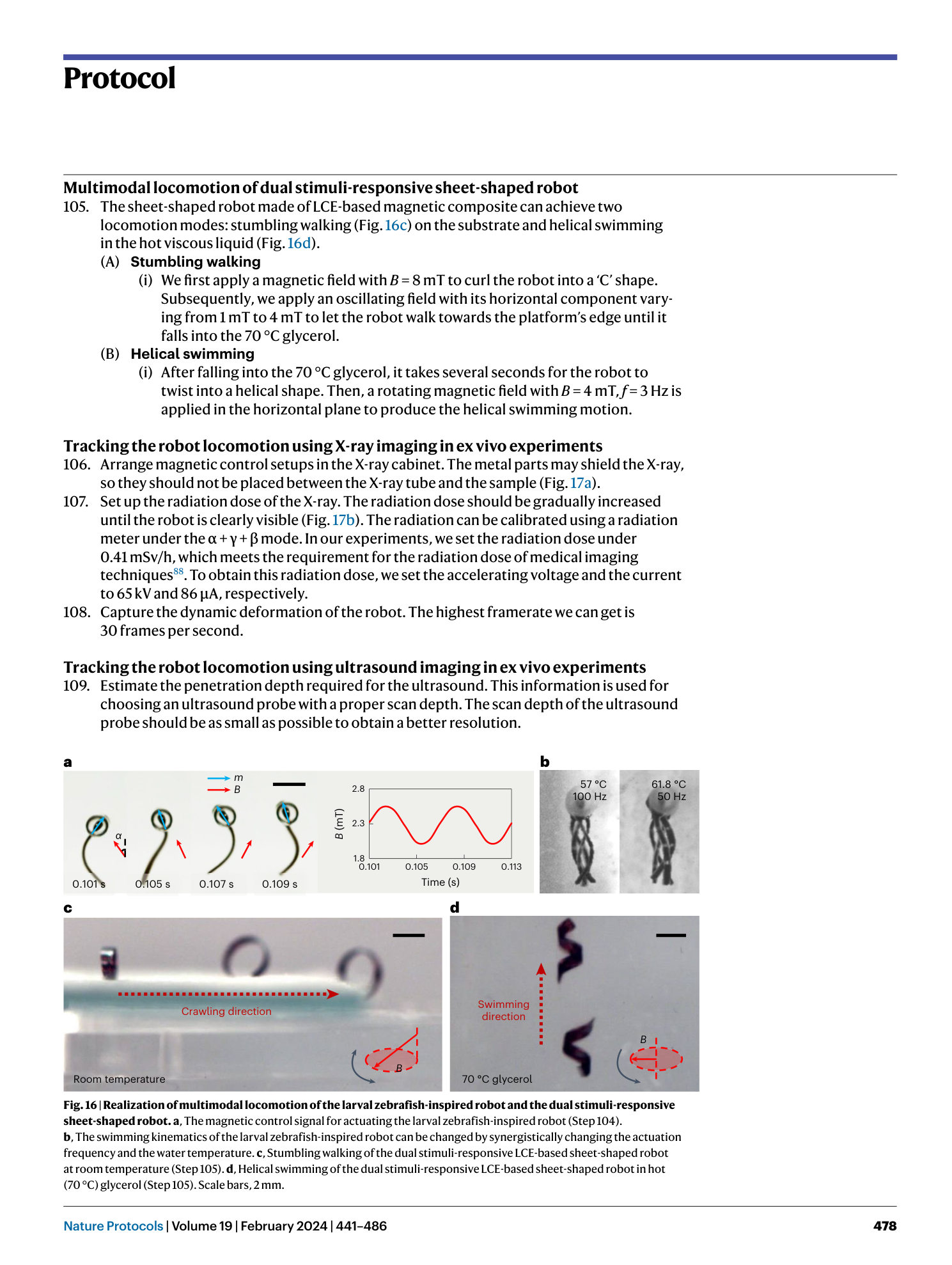

Fig. 16: Realization of multimodal locomotion of the larval zebrafish-inspired robot and the dual stimuli-responsive sheet-shaped robot.
Figure 26
Fig. 16: Realization of multimodal locomotion of the larval zebrafish-inspired robot and the dual stimuli-responsive sheet-shaped robot.
Figure 27

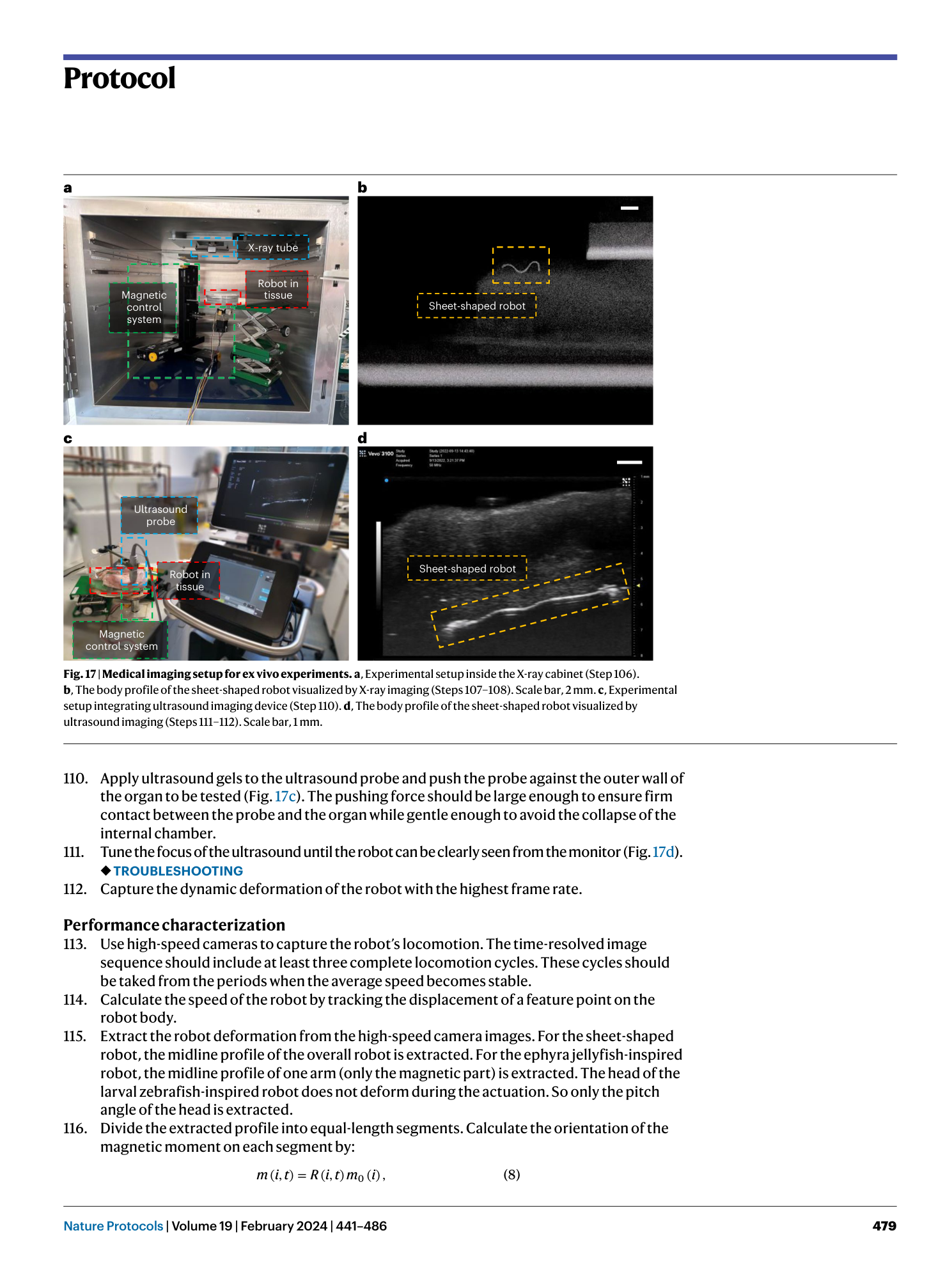

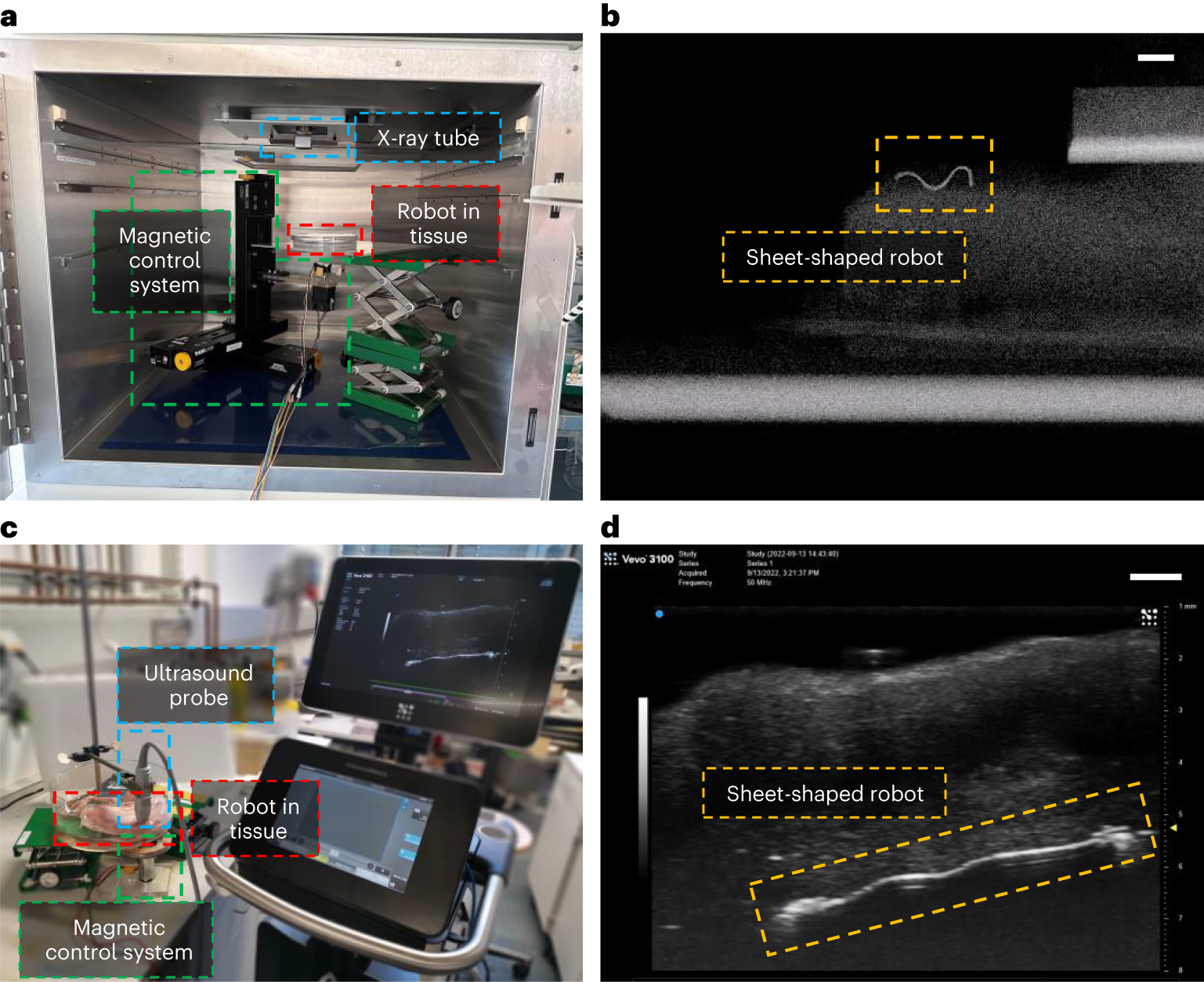

Fig. 17: Medical imaging setup for ex vivo experiments.
Figure 28
Fig. 17: Medical imaging setup for ex vivo experiments.
Figure 29

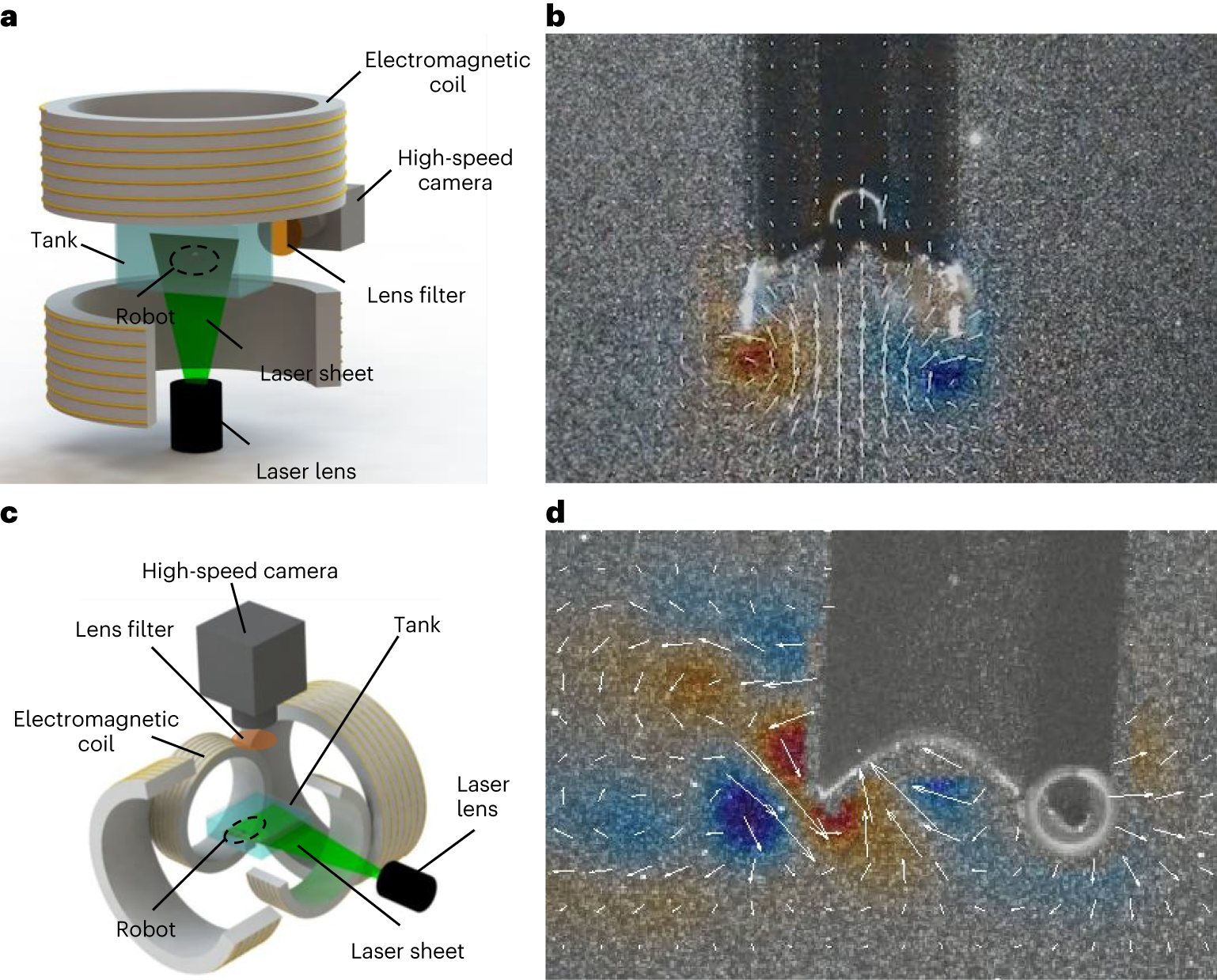

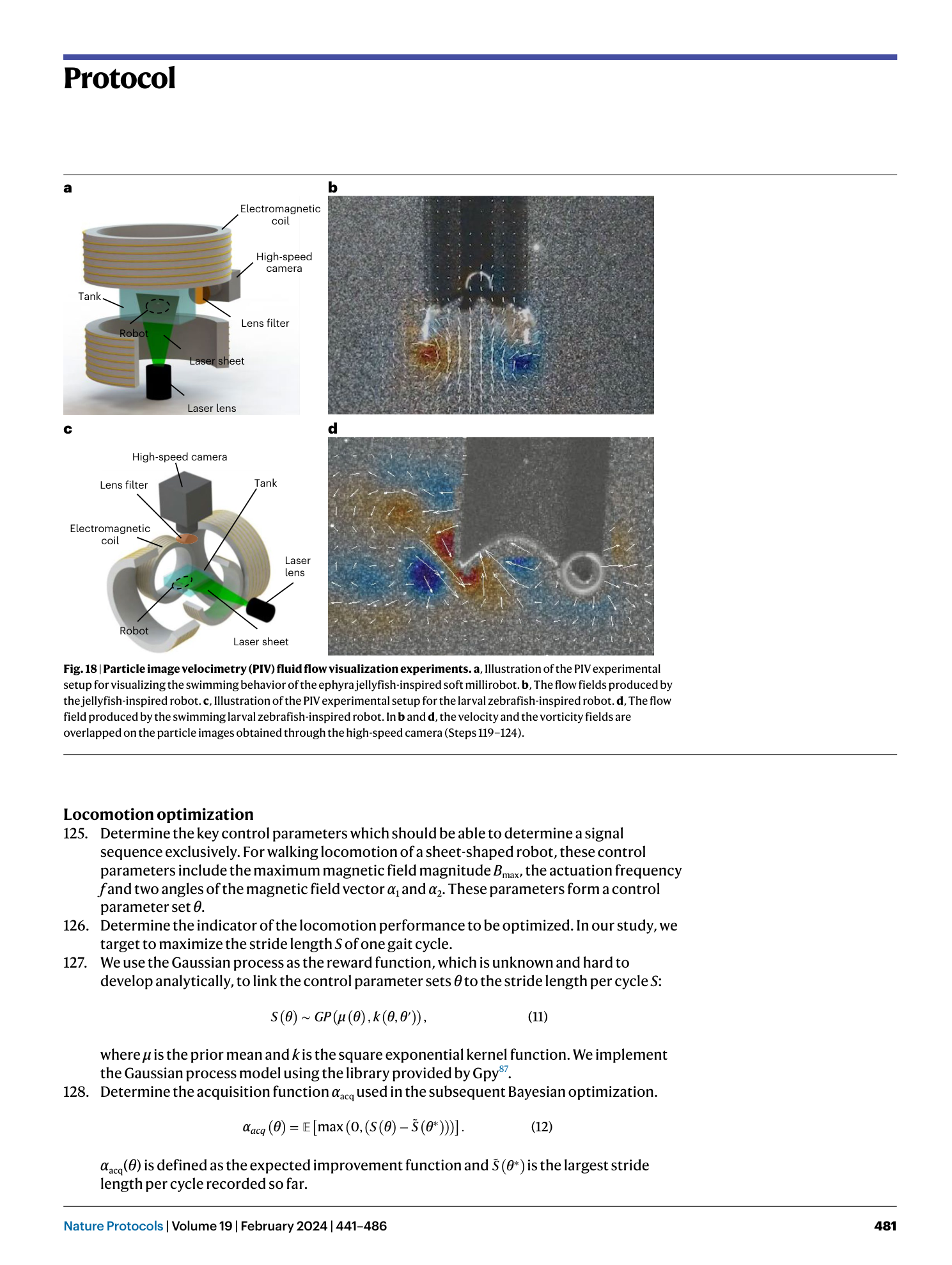

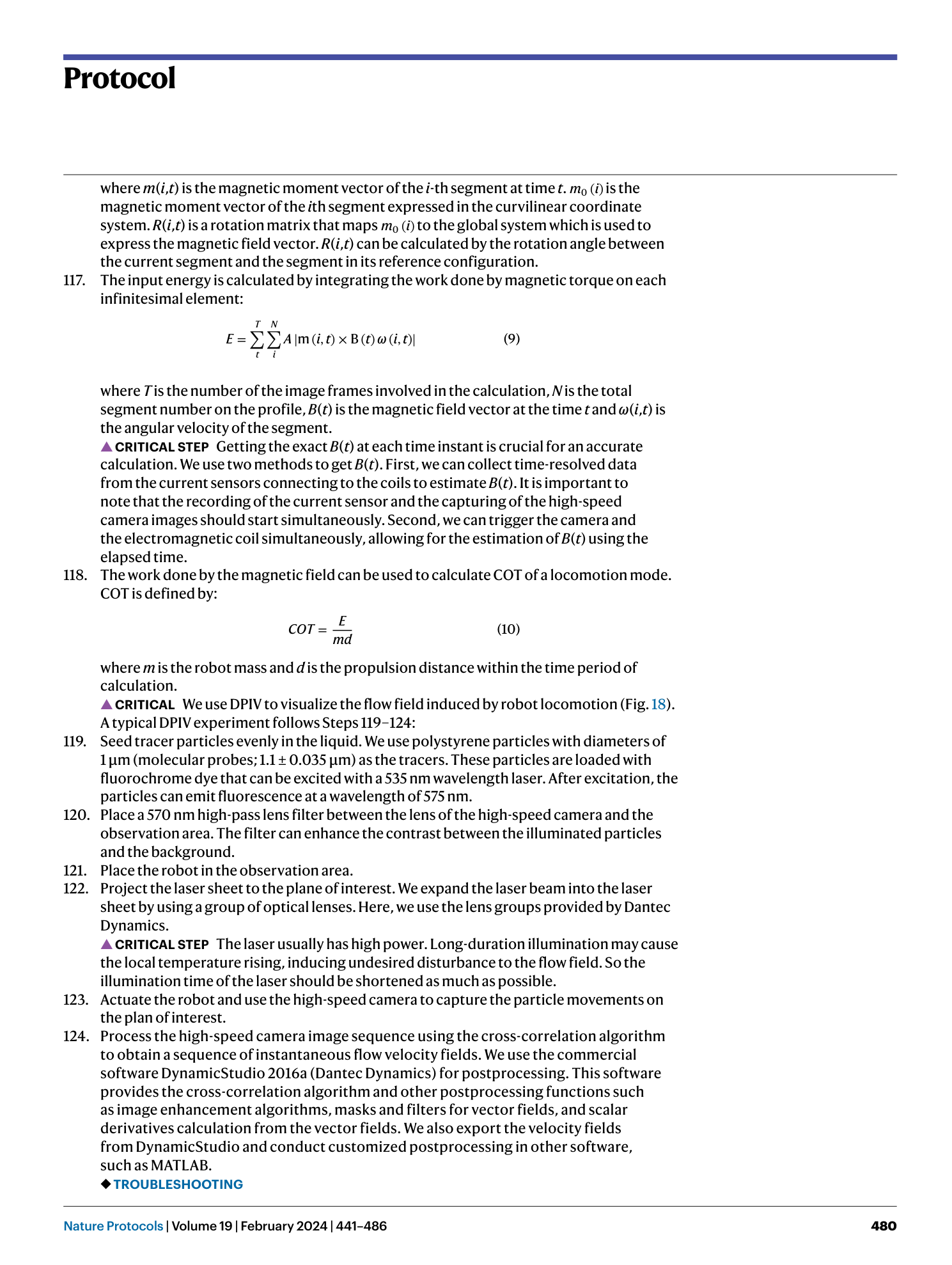

Fig. 18: Particle image velocimetry (PIV) fluid flow visualization experiments.
