Recombinant retroviral expression vectors based on pLXSN that encode EGFR, ERBB2, ERBB3, and ERBB4

Recombinant retroviruses are commonly used to direct the ectopic expression of genes in infected cells. There are two significant advantages to this approach. Following infection of the target cell, the recombinant retroviral genome is reverse-transcribed and subsequently integrated into the host cell genome, enabling stable ectopic gene expression. Recombinant retroviral expression vectors typically contain a drug-resistance gene, allowing the selection and maintenance of stably infected cells.

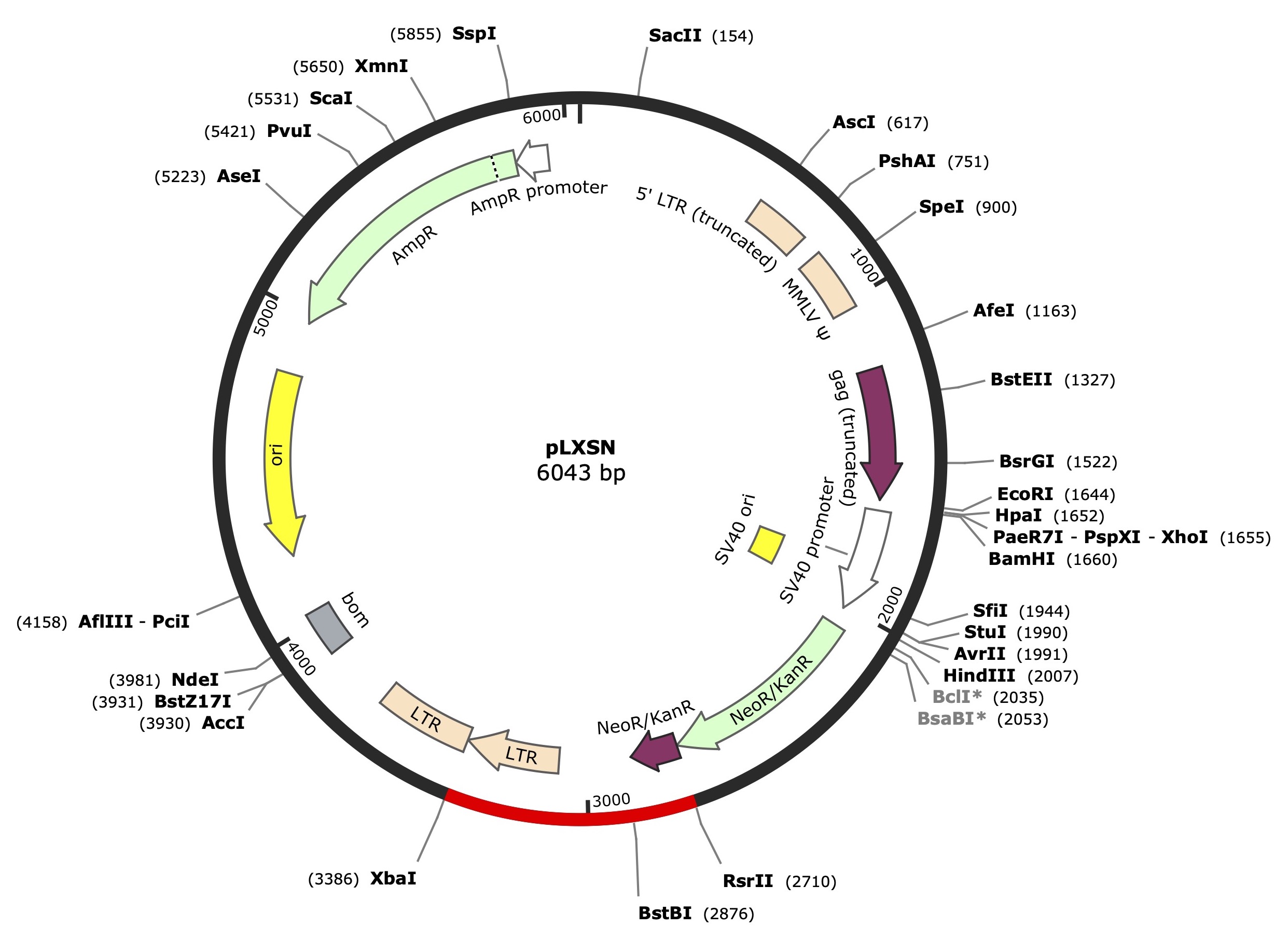

A popular recombinant retroviral expression vector is pLXSN ( Figure 1 ) [1] . This map is derived from the DNA sequence contained in pLXSN.dna.

This plasmid contains recombinant long-terminal repeat (LTR) sequences to permit the packaging of the RNA transcript into infectious rec ombinant retrovirus particles. The plasmid also includes a short poly-cloning region with unique EcoRI, HpaI, XhoI, and BamHI restriction enzyme sites. This region lies downstream of the 5’ LTR and truncated retroviral gag sequence, thereby enabling the expression of a gene cloned into the poly-cloning region. An SV40 promoter lies downstream of the poly-cloning region; this promoter drives constitutive expression of a neomycin resistance gene (NeoR). These elements enable selection for stable infection of the recombinant retroviruses using the antibiotic G418. Finally, the plasmid contains a bacterial origin of replication and an ampicillin resistance gene to permit plasmid propagation in standard laboratory strains of E. coli (DH5alpha, DH10B, and related strains).

Here we describe the construction of pLXSN derivatives that contain the human EGFR [2] , ERBB2 [3] , ERBB3 [4] , and ERBB4 [5] cDNAs. These cDNAs encode receptor tyrosine kinases (RTKs). The EGFR and ERBB2 RTKs are well-validated drivers of many types of human malignancies. However, the roles that the ERBB3 and ERBB4 RTKs play in human malignancies are more poorly defined. Thus, these recombinant retrovirus constructs permit us to study the function of these ERBB receptors, particularly ERBB3 and ERBB4, in various contexts.

Construction of pLXSN-EGFR

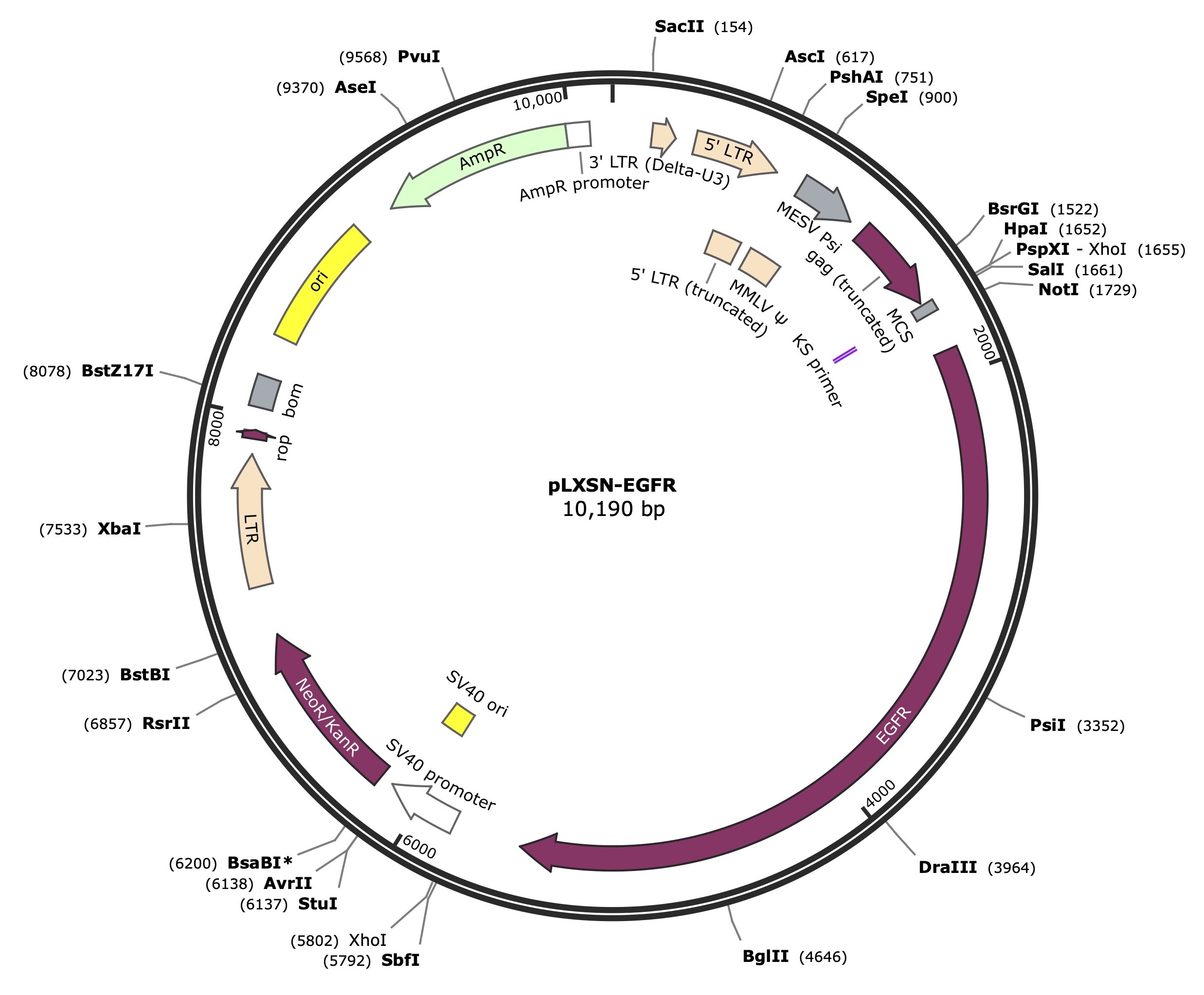

We have previously briefly described the construction of pLXSN-EGF [6] 6]. The plasmid pSKEGF [6] 6], which encodes the human EGFR cDN [2] 2], was generated (unpublished data) from pCO12EGF [7] 7] and is a generous gift from David F. Stern. This plasmid (pSKEGFR) contains XhoI sites that flank the EGFR coding region of the plasmid. Thus, this plasmid was digested with XhoI to yield the complet EGFR FR cDNA fragment. The recombinant retroviral vector pLXSN was linearized at the polycloning region by digestion with XhoI. The EGFR-XhoI fragment was ligated to the pLXSN-XhoI fragment, and the ligation product was electro-transformed into DH10 E. coli li. Ampicillin-resistant colonies o E. coli li were screened for th EGFR FR cDNA insert by colony hybridization using a radioactive probe. Positive colonies were expanded, and minipreps were screened for the correct orientation of th EGFR FR cDNA insert. NGS has validated this construct, and the map of the resulting sequencepLXSN-EGFR.dna( ) is shown i Figure 2 2. Note this strategy preserves the XhoI sites that flank th EGFR FR coding sequence.

Construction of pLXSN-ERBB2

We have previously briefly described the construction of pLXSN-ERBB2  [6] .  The plasmid pCDNEU  [8] , which encodes the complete human  ERBB2  cDNA, was a generous gift from Gregory D. Plowman.  This plasmid was digested with NruI and DraI, which cut the plasmid at sites that flank the coding region of the  ERBB2 cDNA and generate blunt ends.  The recombinant retroviral vector pLXSN was linearized at the poly-cloning region by digestion with HpaI, which yields blunt ends.  The ERBB2-blunt fragment was ligated to the pLXSN-HpaI fragment, and the ligation product was electrotransformed into DH10B E. coli .  Minipreps were generated from ampicillin-resistant colonies and were screened by restriction mapping for the correct orientation of the  ERBB2  cDNA insert.  This yielded the plasmid pLXSN-Long-ERBB2.

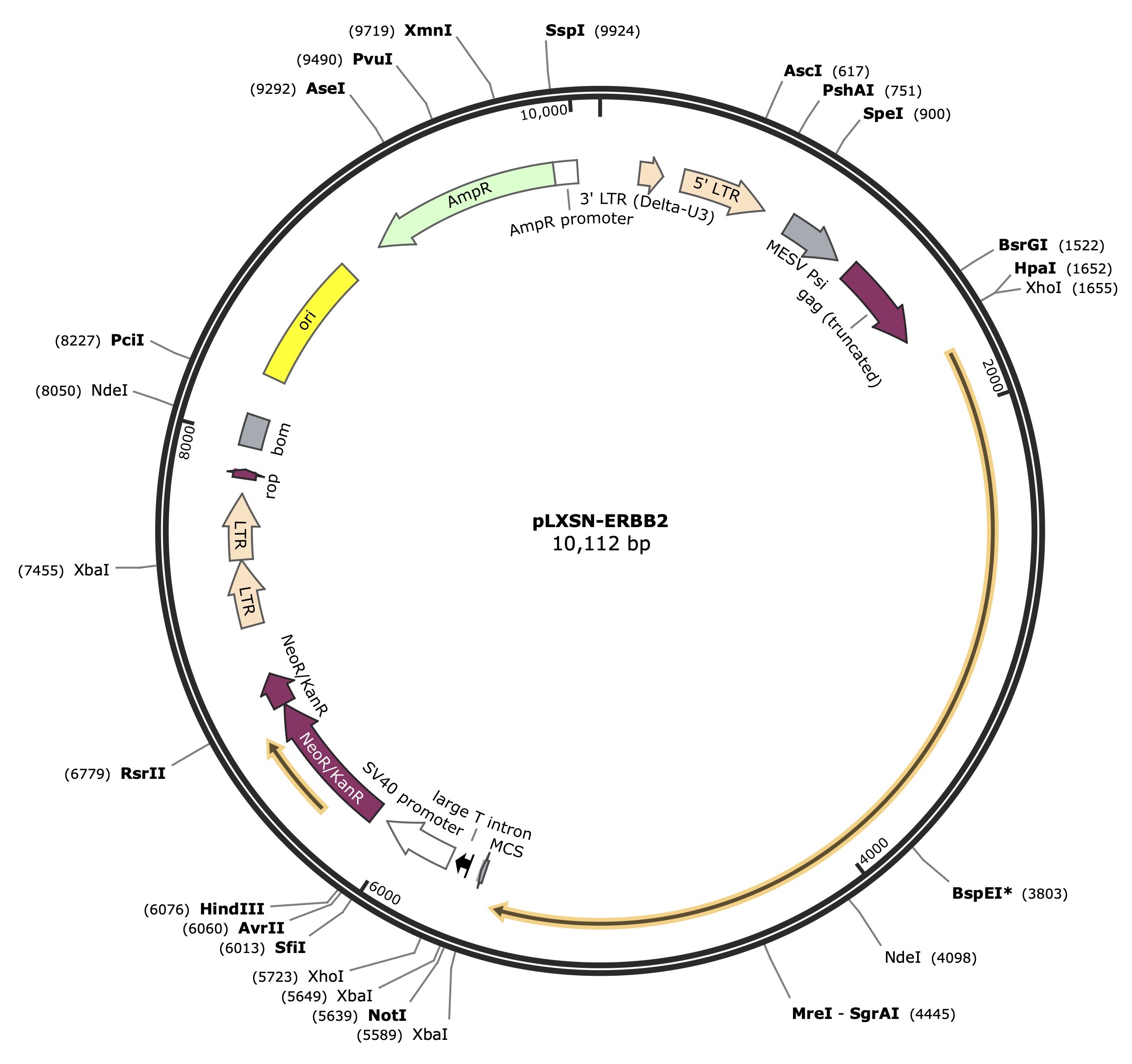

Unfortunately, pLXSN-Long-ERBB2 did not direct adequate ectopic expression of ERBB2 protein in eukaryotic cells that were transduced with this construct  [6] .  We postulate that the inadequate expression was due to excessive DNA (>800 bp) upstream of the  ERBB2  transcriptional start site.  Thus, we subcloned the XhoI fragment of pLXSN-Long-ERBB2 into the XhoI site of pLXSN, yielding the plasmid pLXSN-ERBB2.  NGS has validated this construct, and the map of the resulting sequence (pLXSN-ERBB2.dna) is shown in  Figure 3 .  Note this strategy preserves the XhoI sites that flank the  ERBB2  coding sequence.  This plasmid directs abundant ectopic expression of ERBB2 protein in eukaryotic cells that were transduced with this construct  [6] .

Construction of pLXSN-ERBB3

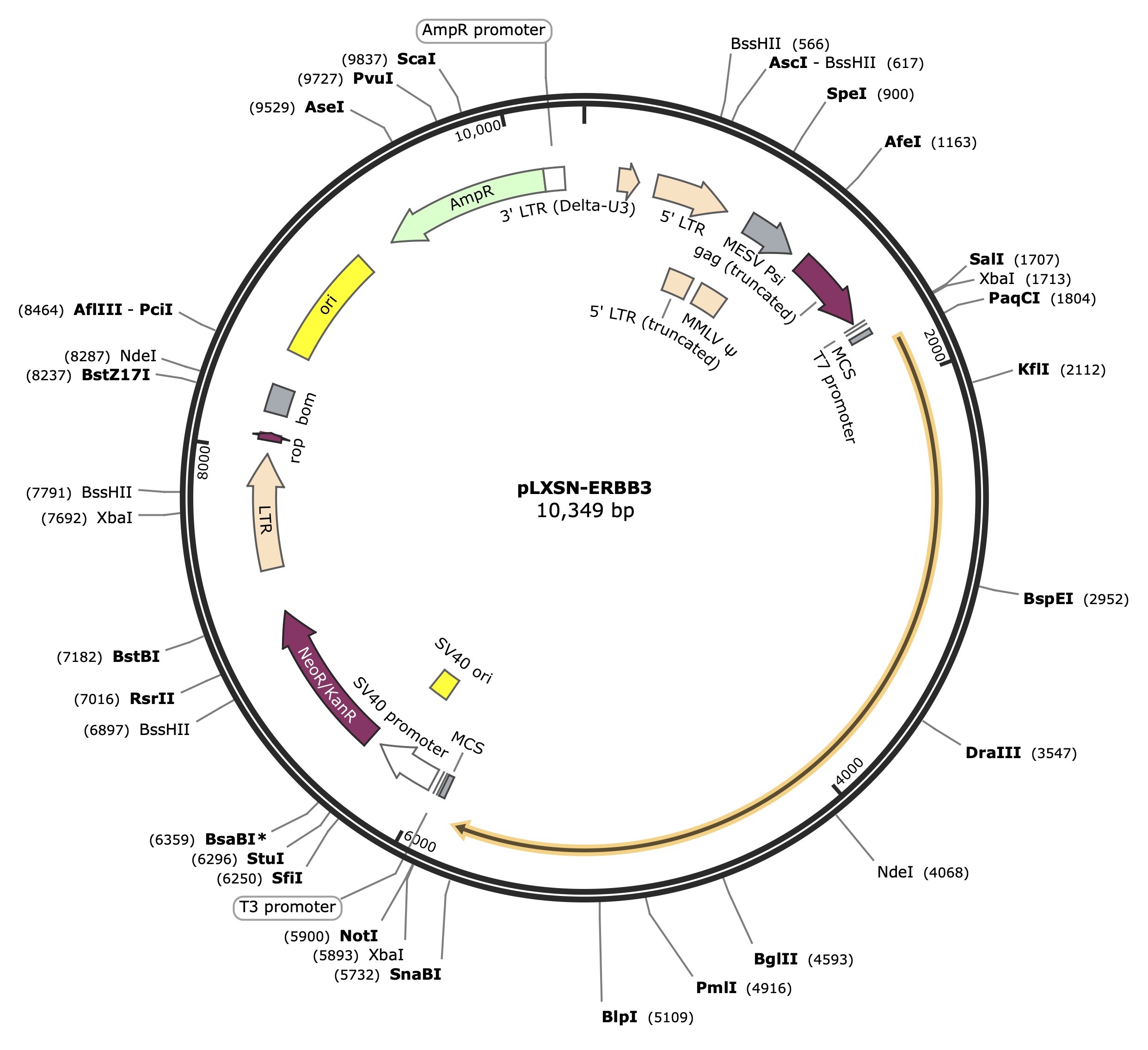

We have previously briefly described the construction of pLXSN-ERBB3  [6] .  The plasmid pBSHER3X  [6] , which encodes the human  ERBB3 cDNA  [9] , was a generous gift from Gregory D. Plowman.  This plasmid was digested with BssHII, which cuts the plasmid at sites that flank the coding region of the  ERBB3  cDNA.  The sticky ends were filled using the Klenow fragment of  E. coli  DNA polymerase I, yielding a fragment with blunt ends.  The recombinant retroviral vector pLXSN was linearized at the poly-cloning region by digestion with HpaI, which generates blunt ends.  The  ERBB3 -blunt fragment was ligated to the pLXSN-HpaI fragment, and the ligation product was electro-transformed into DH10B  E. coli .  Ampicillin-resistant colonies of  E. coli  were screened for the  ERBB3  cDNA insert by colony hybridization using a radioactive probe.  Positive colonies were expanded, and minipreps were screened for the correct orientation of the  ERBB3  cDNA insert.  NGS has validated this construct, and the map of the resulting sequence (pLXSN-ERBB3.dna) is shown in  Figure 4 .  Note that this subcloning strategy destroys the BssHII restriction enzyme sites of the ERBB3 cDNA fragment and the HpaI restriction enzyme site of pLXSN.

Construction of pLXSN-ERBB4

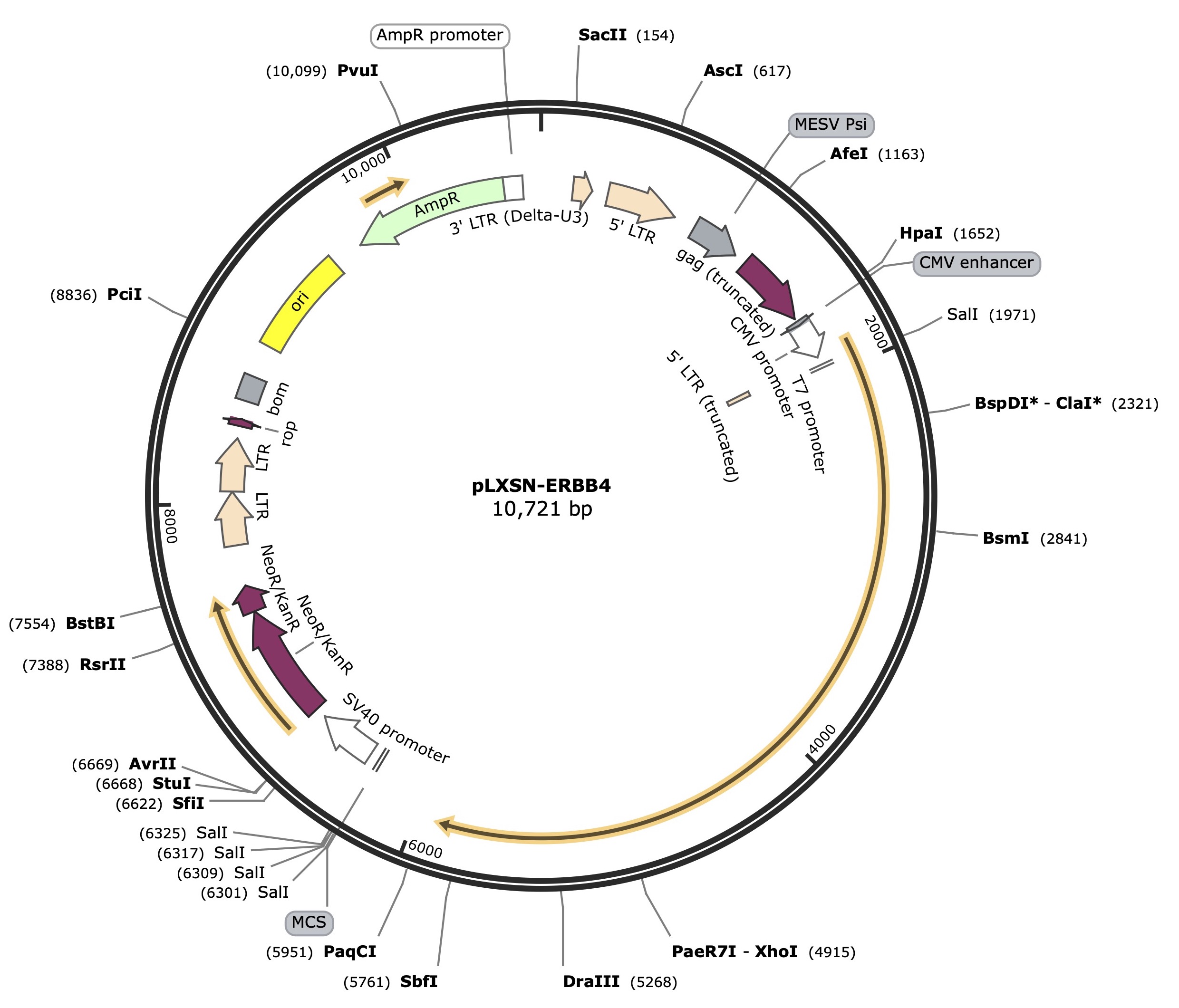

We have previously briefly described the construction of pLXSN-ERBB4  [6] .  The plasmid cH4M2  [6] , which encodes the human  ERBB4  cDNA  [8] , was a generous gift from Gregory D. Plowman.  This plasmid was digested with SnaBI and SmaI, each cutting the plasmid at a single site and yielding the complete  ERBB4 cDNA with blunt ends.  SalI linkers were added to this fragment.  The recombinant retroviral vector pLXSN was linearized at the poly-cloning region by digestion with XhoI.  The  ERBB4 -SalI fragment was ligated to the pLXSN-XhoI fragment, and the ligation product was electro-transformed into DH10B  E. coli .  Ampicillin-resistant colonies of  E. coli  were screened for the  ERBB4  cDNA insert by colony hybridization using a radioactive probe.  Positive colonies were expanded, and minipreps were screened for the correct orientation of the  ERBB4  cDNA insert.  NGS has validated this construct, and the map of the resulting sequence (pLXSN-ERBB4.dna) is shown in  Figure 5 .  Note that a SalI site is retained at the 5' end of the ERBB4 cDNA insert, and multiple SalI sites are retained at the 3' end of the ERBB4 cDNA insert.

Here we describe the construction of recombinant retroviral constructs based on pLXSN and carrying the human  EGFR ,  ERBB2 ,  ERBB3 , or  ERBB4  genes.  We have used these constructs to ectopically express these genes in various cell types, with the first example being the mouse BaF3 pro-B lymphocyte cell line  [6] .  In this example, we stably transduced the BaF3 cells with the recombinant retroviral constructs by electroporation.  In subsequent studies, we packaged the recombinant retroviral constructs into high-titer amphotropic retrovirus particles suitable for infection of both murine and human cell lines.  We will describe the procedure for packaging and titering these recombinant retroviruses in a subsequent protocols.io paper.

1. Miller, A.D. and G.J. Rosman,  Improved retroviral vectors for gene transfer and expression.   Biotechniques, 1989.  7 (9): p. 980-2, 984-6, 989-90.

2. Human EGFR cDNA - NM_005228.5 .  [Accessed August 18, 2023]; Available from: https://www.ncbi.nlm.nih.gov/nuccore/NM_005228.

3. Human ERBB2 cDNA - NM_004448.4 .  [Accessed August 18, 2023]; Available from: https://www.ncbi.nlm.nih.gov/nuccore/NM_004448.4.

4. Human ERBB3 cDNA - NM_001982.4 .  [Accessed August 18, 2023]; Available from: https://www.ncbi.nlm.nih.gov/nuccore/NM_001982.

5. Human ERBB4 cDNA - NM_005235.5 .  [Accessed August 18, 2023]; Available from: https://www.ncbi.nlm.nih.gov/nuccore/NM_005235.3.

6. Riese, D.J., 2nd, et al.,  The cellular response to neuregulins is governed by complex interactions of the erbB receptor family.   Mol Cell Biol, 1995.  15 (10): p. 5770-6.

7. Velu, T.J., et al.,  Epidermal-growth-factor-dependent transformation by a human EGF receptor proto-oncogene.   Science, 1987.  238 (4832): p. 1408-10.

8. Plowman, G.D., et al.,  Ligand-specific activation of HER4/p180erbB4, a fourth member of the epidermal growth factor receptor family.   Proc Natl Acad Sci U S A, 1993.  90 (5): p. 1746-50.

9. Plowman, G.D., et al.,  Molecular cloning and expression of an additional epidermal growth factor receptor-related gene.   Proc Natl Acad Sci U S A, 1990.  87 (13): p. 4905-9.

10. pLXSN - Addgene .  [Accessed August 18, 2023]; Available from: https://www.addgene.org/vector-database/3492/.

11. pLXSN - Genbank M28248.1 .  [Accessed August 18, 2023]; Available from: https://www.ncbi.nlm.nih.gov/nuccore/M28248.1.
