Polychromatic UV Fluence (Dose) Response Determination

Daniel Ma, NATALIE HULL

Published: 2024-04-10 DOI: 10.17504/protocols.io.n92ldzqoov5b/v4

Disclaimer

DISCLAIMER – FOR INFORMATIONAL PURPOSES ONLY; USE AT YOUR OWN RISK

The protocol content here is for informational purposes only and does not constitute legal, medical, clinical, or safety advice, or otherwise; content added to protocols.io is not peer reviewed and may not have undergone a formal approval of any kind. Information presented in this protocol should not substitute for independent professional judgment, advice, diagnosis, or treatment. Any action you take or refrain from taking using or relying upon the information presented here is strictly at your own risk. You agree that neither the Company nor any of the authors, contributors, administrators, or anyone else associated with protocols.io, can be held responsible for your use of the information contained in or linked to this protocol or any of our Sites/Apps and Services.

Abstract

The purpose of this protocol is to document the steps used for determination of UV doses for polychromatic UV sources such as UV LEDs, excimer lamps, medium pressure mercury lamps. The method is not limited to polychromatic light sources, but can also be used for monochromatic sources, such as low pressure mercury lamps. The method described in this protocol has been modified to account for polychromatic UV radiation sources (Linden and Darby, 1997) and is based on method is based on "Standardization of Methods for Fluence (UV Dose) Determination in Bench-Scale UV Experiments" (Bolton and Linden, 2003). If you cite your use of this protocol, you should also cite the relevant original literature. For further information on using UV LEDs and measuring UV intensity, refer to the following publications: Kheyrandish et al., (2018), Kheyrandish et al., (2017), Kheyrandish et al., (2018), Sholtes et al., (2019).

Before start

For microbial samples, sanitize bench top surfaces with 70% ethanol.

Steps

UV Dose Spreadsheet

UV Dose Spreadsheet: UV_Dose_Blank.xlsx

Here is an example spreadsheet filled out with radiometer factors, absorbance scan of sample, UV emission spectra of a low pressure mercury lamp, and sample geometry: UV_Dose_LP254.xlsx

This protocol will guide users through important parts of the UV Dose Spreadsheet.

Preparation of UV Light Source

Obtain UV Source Emission Spectra . Before your experiment, ensure that you have obtained the UV lamp emission spectra with a UV-VIS spectroradiometer (NIST-traceable is required ). Warm up the UV source. Typically, 15 minutes is sufficient for light emission to stabilize. UV source stabilization can be confirmed using a radiometer.

Note

Both spectroradiometer and radiometer must have received NIST-traceable calibration within one year of operation.

2.1.

Set up the UV-VIS spectroradiometer and the acquisition software. Load calibration data provided with the calibrated UV-VIS spectroradiometer.

2.2.

Measure the UV spectra by positioning the spectroradiometer below the UV source. Set scan parameters such as boxcar width, scans to average, and integration time. Obtain background scan (e.g., dark scan with no light exposure) before taking UV measurements.

Note

Remember to use personal protective equipment such as UV-rated goggles, lab coat, face shield, and nitrile gloves. It may be helpful to pull gloves over the sleeves of the lab coat to avoid exposing forearm to UV light during measurements.

Note

Certain spectroradiometers may exhibit noise at low wavelengths. Reducing noise can be achieved by increasing integration time and scans to average. Holding the spectroradiometer still will decrease fluctuations in measurements (e.g. use a clamp to hold it in place, be careful to not damage the instrument).

Note

Avoid saturating the spectroradiometer detector. Saturation will result in "clipped" peaks (e.g., observing a flattened peak near the nominal peak wavelength of the UV device indicates the spectroradiometer is saturated). To correct saturation, move the spectroradiometer detector away from the UV source until a peak is observed.

2.3.

Export the spectroradiometer measurements. If the spectroradiometer output does not provide irradiance measurements at integer value wavelengths, interpolation of the wavelengths and irradiance measurements is required to use the data in the UV Dose Spreadsheet.

Example spectroradiometer data showing non-integer wavelength values. Column A is Wavelength (nm) and Column B is Relative Intensity (a.u.). Data were obtained from Ocean Optics HDX UV-VIS Spectroradiometer.

2.4.

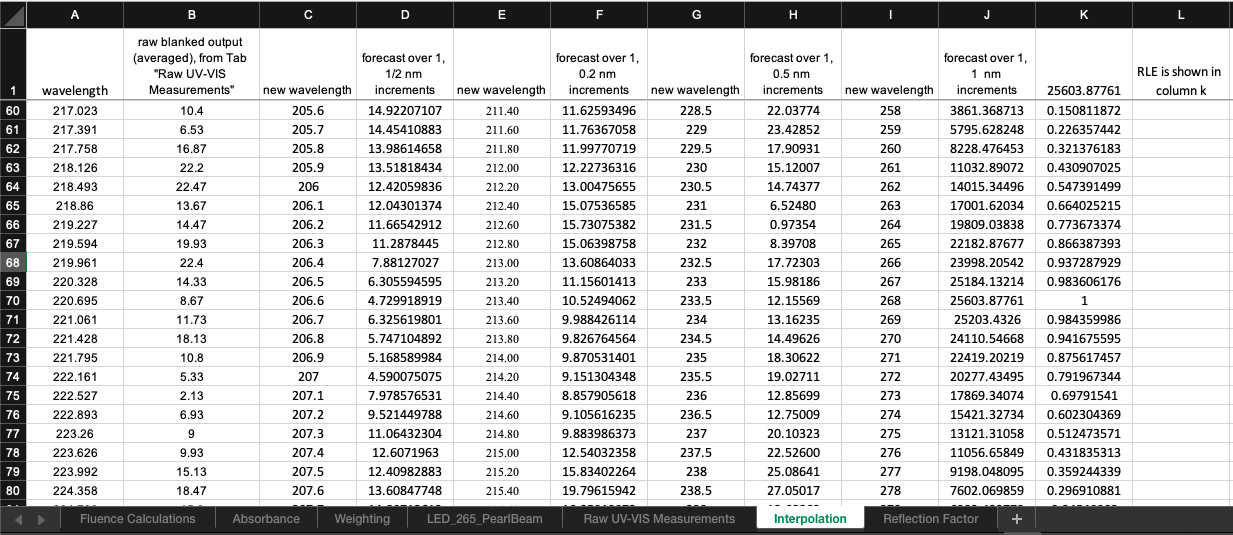

Interpolation can be performed on the emission spectra values to obtain integer wavelengths using the tab in the UV Dose Determination spreadsheet titled " Interpolation ". Interpolation can be also performed in Microsoft Excel or other computational software (e.g., in R Studio with the 'approx' function).

Interpolation results. Column A = paste raw wavelengths (non-integer). Column B = paste raw irradiance measurements (arbitrary units). Columns C through H = step-wise interpolation calculations. Column I = new integer value wavelengths. Column J = interpolated irradiance values at integer wavelengths. Cell K1 = maximum value from Column J. Column K = relative irradiance calculated by dividing values in each row of Column J by the value in Cell K1.

2.5.

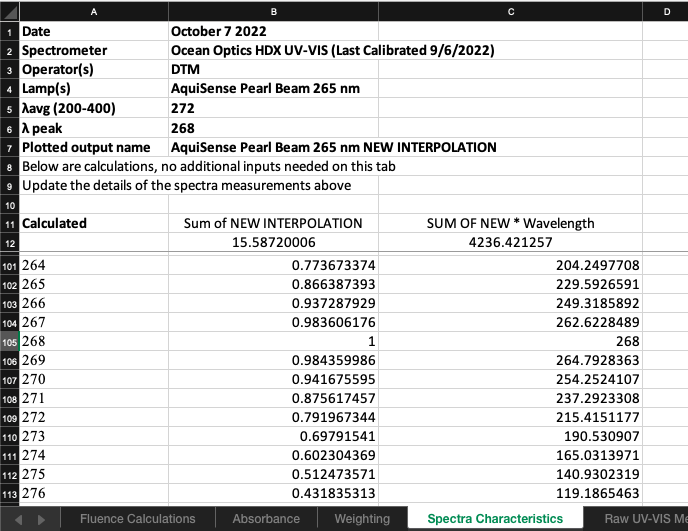

Check UV Spectra Characteristics . The peak and average wavelength can be obtained from the tab "Spectra Characteristics". The fp radiometer factor should be between 1–1.05. Values higher than this will adversely affect UV exposure times.

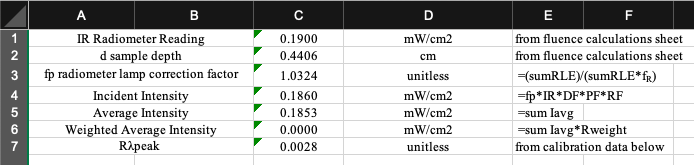

Spectra characteristics are calculated in the Spectra Characteristics tab. Cell B12 = sum of all relative irradiance values in Column B starting at row 37. Cell C12 = sum of the product of wavelengths in Column A starting at row 37 and the relative irradiance values in Column B starting at row 37. Cell B5 = average wavelength calculated by the ratio of Cell C12 / Cell B12. Cell B6 = peak wavelength (corresponds with the maximum irradiance value).

The fp radiometer factor (Cell C3) should be between 1 and 1.05. Obtain another spectra measurement using adjusted acquisition parameters on the spectroradiometer (e.g., integration time, scans to average) and repeat the steps above to interpolate the irradiance values.

Sample Preparation

Select Sample Matrix. The UV dose responses of different sample matrices may be characterized using this protocol.

Sample types may include, but are not limited to, the following:

Bio-molecular samples (e.g. bacteria, viruses, fungal spores, etc.)
Environmental samples (e.g. wastewater, surface water, groundwater, etc.)
Chemicals

Determine Volume of Working Solution Needed. To determine the minimum total volume of working solution () needed:

* = Number of UV doses you want to include in your experiment (include no dose, i.e. no UV exposure)

= Sample volume needed per UV dose

Note

When deciding on

, consider the following: the amount of sample needed for each downstream analyses, size of the sample container available.

Note

In addition to

, prepare additional working solution for determining concentration of target analyte in non-irradiated samples. Sufficient additional volume is also needed for sample absorbance scans. The volume needed for sample absorbance scans will depend on the cuvette size. Plan to prepareSufficient extra volume to rinse the cuvettes between scans of different sample matricesSufficient volume for at least duplicate absorbance scans per sample

Note

For example, a UV dose response for MS2 bacteriophage might have 7 doses ($$N): 0, 10, 20, 30, 40, 50, and 60 mJ/cm². If 35 mm Petri dishes are used, 4 mL would be an appropriate sample volume (

(7 doses) x (4 mL/dose) = 28 mLSince the minimum volume required for the UV exposures is 28 mL, a suitable volume to prepare would be 100 mL, which would provide sufficient volume to rinse the cuvette between absorbance scans, duplicate absorbance scan, and extra solution to repeat UV exposures (if needed).

Choose working stock concentration . The concentration should be chosen to quantify observable reductions for the highest UV dose. Consider personnel safety when choosing a stock concentration. Avoid risk of exposure to high concentrations of hazardous chemicals.

Prepare working solution for the chosen sample matrix. After calculating the volume needed and the target concentration, prepare the working solution of your sample by using the appropriate diluent, if necessary. Common diluents of samples include: DI water and phosphate buffered saline (PBS).

Note

Avoid using DI water for bio-molecular samples such as bacteria and viruses. For bio-molecular samples, use sterilized PBS (e.g., filter sterilized, autoclaved) as the diluent.The typical PBS concentration is 0.01 M (e.g., 1X).

6.1.

Preparing bio-molecular samples. If using bio-molecular samples, prepare microorganisms according to your laboratory protocols. Use best practices and aseptic technique. Biological triplicates are recommended for bio-molecular studies.

Note

Handling BSL2 organisms . Consider setting up your UV experiment in a BSL2 biosafety cabinet for BSL2 microorganisms. If that is not feasible, exercise proper safety and precautions when handling microorganisms outside the BSL2 cabinet. Minimize time BSL2 samples are outside the cabinet. Exercise extreme caution and only perform UV exposures on BSL3+ organisms in BSL3 certified facilities.

Note

Cell aggregation issues . Previous research suggests that cell aggregation can cause tailing in disinfection kinetics (i.e. leveling off inactivation with increasing UV doses). Tailing can be minimized using several techniques: Sonicating aliquots of cells immediately before UV exposure (e.g., 30 seconds) (Sholtes and Linden, 2019)Using lower centrifuge speeds to pellet and wash cells to reduce clumpingReducing the number of cell washes to reduce clumping (e.g. reduce from 3 washes to 1 wash)Add a surfactant to microorganism working stock (e.g. Tween)

Note

Risk of photorepair . Photorepair can influence quantification of microorganisms' UV dose response. When working with microorganisms with the potential to photorepair (e.g. bacteria, fungi), it is recommended to work in a dark environment with minimal exposure to light between 300-500 nm. A red light emitting > 700 nm may be used for visibility when performing UV exposures and sample handling. If a red light is not available, it is recommended to dilute and plate irradiated samples as soon as possible.To quantify photorepair kinetics, the following protocol can be used:

6.2.

Prepare environmental samples . If using environmental samples, obtain environmental samples and store in appropriate containers and temperatures. Environmental samples may be used to reflect environmental water quality (e.g., wastewater, river water, groundwater). Microorganisms may be spiked into environmental samples. Store chemicals in appropriate storage conditions (e.g., container, temperature, light) before UV exposures.

6.3.

Prepare chemical samples . If using chemical samples, prepare stock solutions and working stock solutions using best practices for handling and preparing chemicals. Perform dilutions using an appropriate diluent. Store chemicals in appropriate storage conditions (e.g., container, temperature, light) before UV exposures.

Measure sample absorbance. Use a UV-VIS spectrophotometer to obtain an absorbance spectra of working stock solution. Sample absorbance is required for determining the UV dose by accounting for the UV light absorbance at different wavelengths and for determining the Water Factor, one of the UV irradiance adjustment factors.

Note

Quartz cuvettes are required for obtaining absorbance spectra for UV dose calculations. Follow all best practices for handling and using quartz cuvettes. Cuvettes with various path lengths (e.g., 1 cm, 5 cm, 10 cm) are available. Important : When using cuvettes that do not have 1 cm path lengths, you must convert absorbance measurements to 1 cm path length (e.g. adjust absorbance values from 10 cm cuvette to 1 cm by dividing by 10). When changing cuvettes, repeat the cuvette zero and baseline measurements for the new cuvette.

7.1.

Prepare sample and dilutions for absorbance scan. Samples of high concentration may need to be diluted for UV-VIS measurements. Dilute samples using the appropriate diluent. Record the dilution factor, which will be used to correct absorbance scan data for the original solution.

7.2.

Turn on UV-VIS spectrophotometer . Warm up at least 10 minutes. Longer warm up time for the lamps will increase performance. Adjust the default instrument settings if desired (e.g., scan speed, slit height, wavelength range, etc.).

7.3.

Obtain absorbance measurements :

Load a blank sample (e.g. cuvette with DI water).
Zero the instrument. This zeroes the reading at the highest wavelength.
Baseline the instrument. This zeroes the readings at all wavelengths. A baseline scan is shown in Figure A below.
Optional : Obtain absorbance scan of distilled water immediately after the baseline (the absorbance scan values should be near 0 for all wavelengths). If the instrument was properly zeroed and a baseline acquired.
Obtain sample absorbance scan(s).
Empty cuvette. Dispose of sample in proper containers.
Rinse cuvette at least once with working stock solution.
Obtain at least duplicate absorbance scan per sample.
Export tabulated absorbance scan data. Correct for any dilution factor, if necessary.
Calculate the average absorbance from the replicate measurements.
Paste the average absorbance at each wavelength in the Absorbance tab in the UV Dose Spreadsheet.

Note

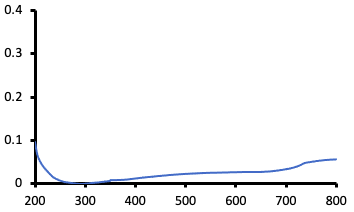

Figure A. Example baseline scan with DI water in 1 cm path length quartz cuvette after zeroing.

Note

When measuring absorbance scan of multiple samples, it is recommended to measure samples from low to high concentrations to avoid contaminating the cuvette.

Note

If the absorbance spectra measurements fall outside the dynamic range of the spectrophotometer, consider diluting the sample and re-measuring or using a larger cuvette (e.g.., 10 cm cuvette). Correct the absorbance by the dilution factor. For example, multiply absorbance values by 10 if the measured sample was diluted 1:10 from the original working solution.

Measuring UV irradiance

Set up UV source and radiometer (must be NIST-calibrated). Select the distance between UV source and sample surface. Record this value in the UV Dose Spreadsheet.

To obtain UV irradiance measurements, set up the radiometer so that the radiometer detector plane is at the same level as the sample surface during UV exposures (Figure A). Use an adjustable lab jack to achieve the same sample surface plane during sample exposure and radiometer measurements. Check the location of the reference plane of the radiometer, as shown in Figure B.

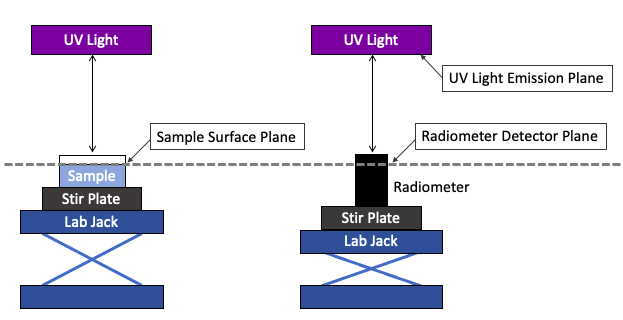

Figure A. Example UV source set up with lab jacks to adjust the elevation of the sample and radiometer. Figure not to scale.

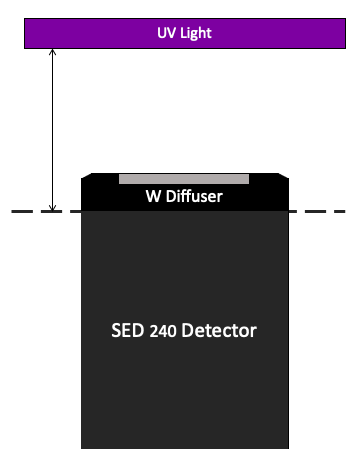

Figure B. Identify the reference plane of the the detector. For the example detector shown, the reference plane is the dashed line and should be at the same plane as the sample surface plane. Contact the manufacturer or consult the instrument manual if needed.

Obtain Petri Factor . The UV dose calculation requires the Petri Factor to account for the spatial non-uniformity of the UV source emission over the surface of the water sample in the container (e.g., Petri dish). The Petri Factor is obtained by measuring the UV irradiance at the sample surface plane at 0.5 cm intervals in the x- and y-direction starting from the center of the sample dish.

9.1.

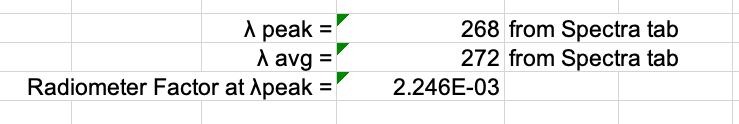

Ensure the radiometer factor is set to the calibration value for the peak wavelength. The peak wavelength and its corresponding radiometer factor can be found in the Fluence Calculation tab.

Note

The radiometer factor should be provided by the radiometer manufacturer and must be manually updated in the Weighting tab (column with R header). The factors should be updated each time the radiometer is re-calibrated.

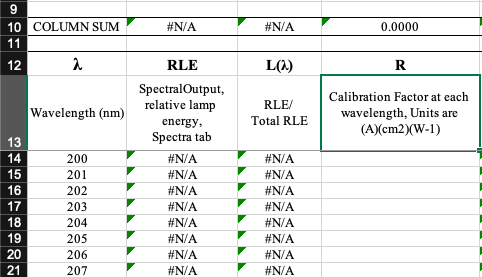

If the calibration factors are not provided for each wavelength, it will be necessary to interpolate (e.g., take the average of factors at 250 nm and 252 nm to obtain the factor at 251 nm).

9.2.

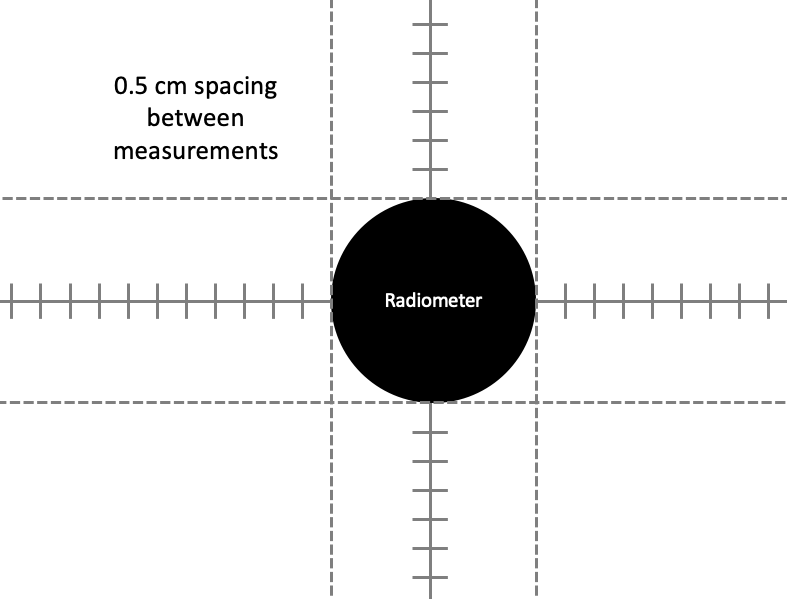

Create a grid for measuring UV irradiance at 0.5 cm intervals in the x- and y-direction from the center of the sample dish.

9.3.

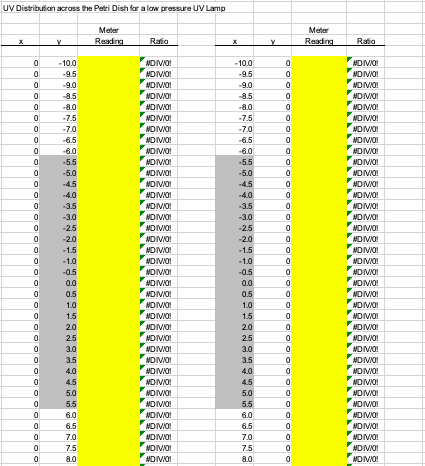

Depending on the size of the dish, the UV Dose Spreadsheet will indicate the minimum number of measurements to take in each direction.

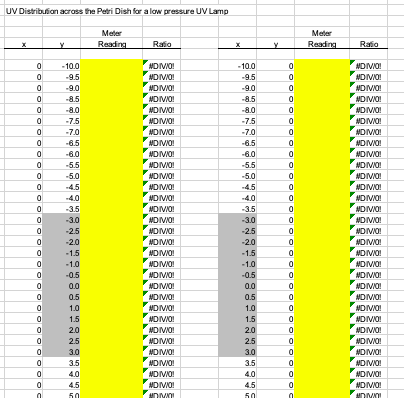

Gray shaded boxes in Fluence Calculation tab indicate the number of measurements required in each direction. The indicated gray boxes are for a dish with diameter of 5 cm (example). Note that the measurements extend from -3.0 cm to +3.0 cm in both x- and y- directions.

9.4.

Measure the center of dish irradiance. Input the irradiance in the Fluence Calculations tab.

Note

Use the correct units (e.g., W/cm²vs. mW/cm²) when recording UV irradiance.

9.5.

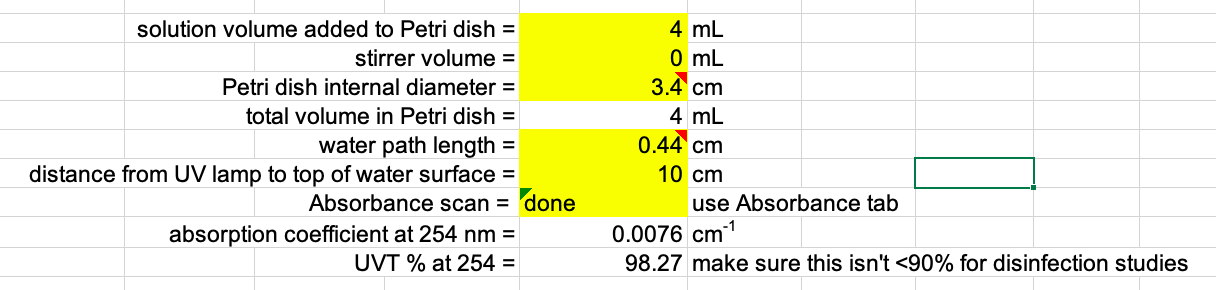

Input values for sample geometry in the Fluence Calculations tab: solution volume added to Petri dish, Petri dish internal diameter, distance from UV lamp to top of water surface. The spreadsheet will automatically calculate the water path length.

9.6.

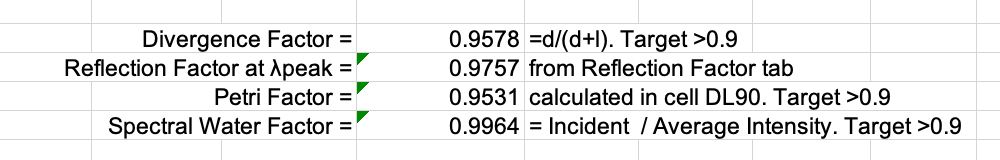

Check that the UV irradiance adjustment factors in the Fluence Calculations tab are within the recommended range of values:

Divergence Factor = DF; Reflection Factor = RF; Petri Factor = PF; Water Factor = WF

The center of dish irradiance () is corrected by the adjustment factors to obtain the average irradiance (_avg):

$$$I=I_0 \times DF\times RF\times PF \times WF$

9.7.

Weighting factors . Weighting factors to account for microorganism or biomolecule action spectra can be applied to UV dose calculations. In general, no weighting factor is applied (NA). If weighting is applied, record the weighting type.

9.8.

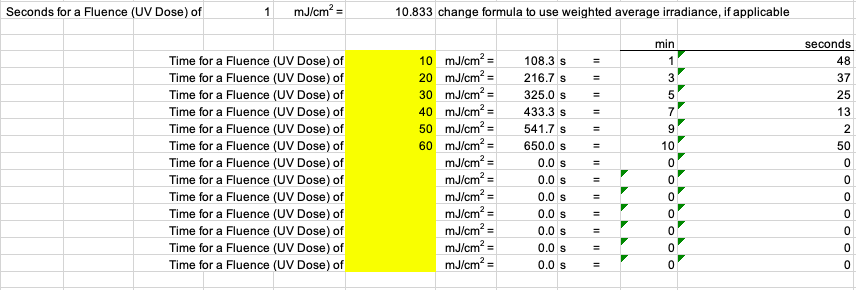

Calculate exposure times for pre-determined UV doses. The zero (0; unexposed) dose sample is very important must be taken. Consider taking the zero dose sample multiple times during the experiment (e.g., beginning, middle, end). Dose responses should have at least 3-5 points in addition to the zero dose. Check the literature for expected dose responses for the specific microorganism.

Performing UV exposures

10.

Perform UV exposures by transferring working solution of sample to sample container (sterile container for microbial samples), adding a stir bar (sterile for microbial samples), and placing on the magnetic stir plate. Expose the sample to UV irradiation for the calculated exposure times. Expose samples in random order (e.g., not ascending or descending order of UV dose values).

Note

The rotational speed of the magnetic stirrer must be set so the stir bar does not create a vortex in the sample, which would disrupt the sample surface plane.

Note

If available, an automated shutter can be used to control the duration of UV exposure time. If not automated shutter is available, construct the necessary structure(s) to allow a manual shutter (e.g., opaque material like cardboard) to be manually moved to completely block off UV irradiation from the sample.

Note

The shortest exposure time must be at least 30 seconds to minimize effect of timing uncertainty and errors on UV dose delivered when using hand-operated shutters.

11.

After the exposure time is complete, replace the shutter to block off UV irradiation. Transfer irradiated samples to appropriate containers. For microbial samples, use sterile technique and equipment (e.g., pipetting) to transfer sample to sterile containers (e.g., test tubes). Save samples for downstream analysis and quantification.

Acknowledgements

12.

We acknowledge the past and present Hull Lab members who contributed to the development and review of this protocol. The UV dose spreadsheet provided in this protocol has undergone iterative changes. It has been modified from UV dose spreadsheets from the Linden Lab and changes have been made based on personal communications from Dr. Jim Bolton.
