Microplastics in marine environments: protocol for isolating natural biofilms from seawater-incubated particles

MICROPLASTIC PARTICLES CONDITIONING

Microplastics are enclosed in nylon mesh bags with a mesh size inferior to microparticule size to ensure their entrapment. Each bag will contain one type of plastic polymer. Three replicates per polymer and per site should be conducted.

MICROPLASTICS CONTAINER PREPARATION 1/2

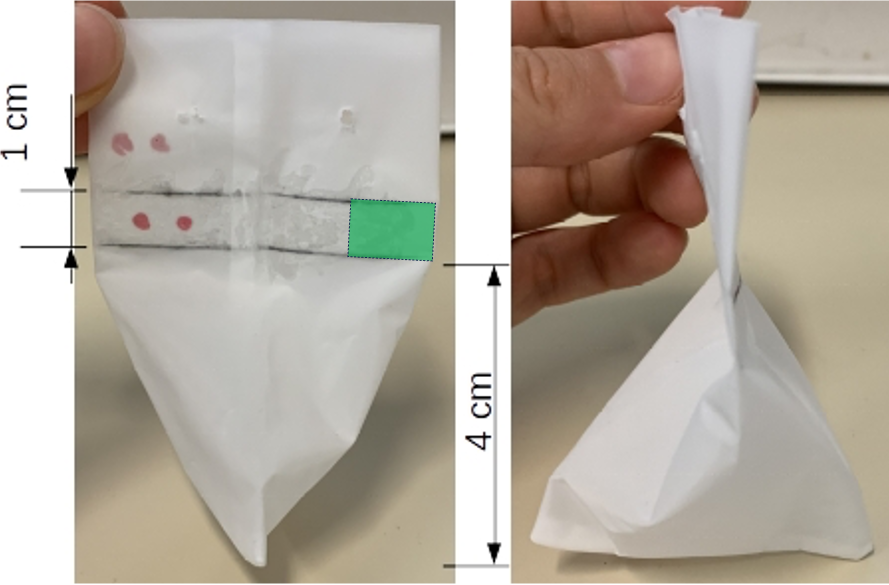

• Fold a 25 µm mesh-nylon bag in the opposite direction of the stitching to achieve a pyramidal shape Pyramidal shape avoids any collapsing of the bag in order to provide sufficient space for microorganisms to colonize the surface of microplastics

• Glue a horizontal line, 1 cm in height, onto 75% of the total bag width. Position the sealed line at a height of 4 cm from the bottom Use waterproof superglue designed for plastic materials. Exercise caution to avoid complete sealing until the addition of microplastics.

• Apply glue to the stitches beneath the horizontal line to prevent any unintended dispersal of microplastics

MICROPLASTIC ADDITION

Consider color-coding the bags to facilitate polymer identification (as shown in the picture above)

ANHYDROUS FORM

• weigh 50mg of microplastics using an analytical balance
• Transfer the microplastics into the respective bags, through the unsealed part.

SOLUTION

• For microplastics in a solution, pipet 500µL and transfer directly into the respective bag

MICROPLASTICS CONTAINER PREPARATION 2/2

• Finish to glue the 1 cm-height line in order to seal the fourth side of the bag
• Verify that the fourth side sealed with glue is hermetically closed by applying pressure with a pipet tip
• Fold the bag above the glued section and staple it
• Punch two holes above the glued section in order to insert ty-rap later
• Immerse the bags in sterile milliQ water for 0h 5m 0s to allow particles with a diameter under 25 µm to pass through the mesh, preventing any site contamination.
• Expose the bags to UV light treatment for 0h 30m 0s to achieve sterilization

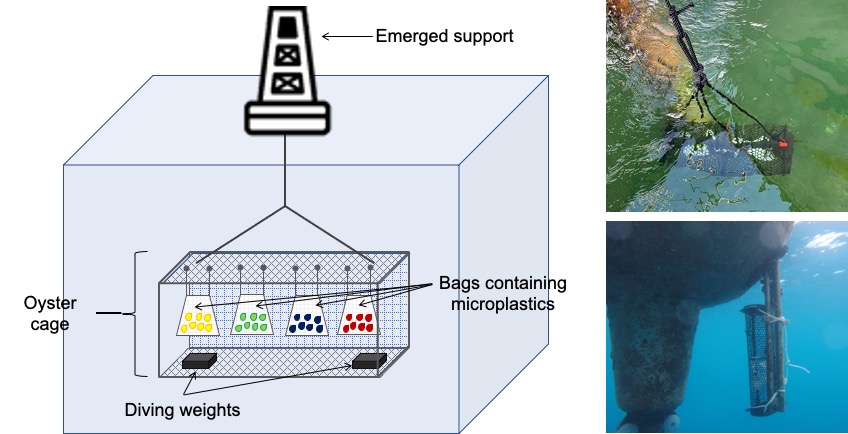

INCUBATION DEVICE PREPARATION

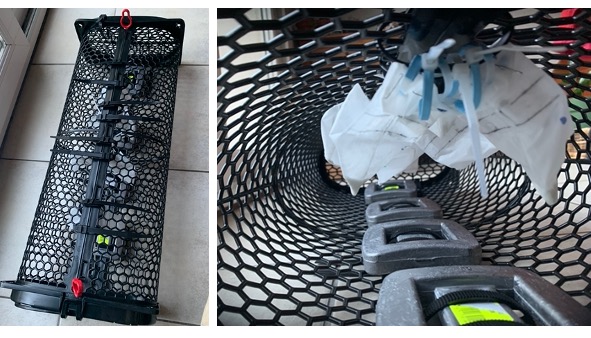

• Prepare the oyster cage following the manufacturer's instructions

• Attach diving weights to the bottom of the cage using Ty-raps or ropes The quantity of weights should be adjusted based on the strength of marine currents at each incubation site. The weights should enable the cage to minimize its movements

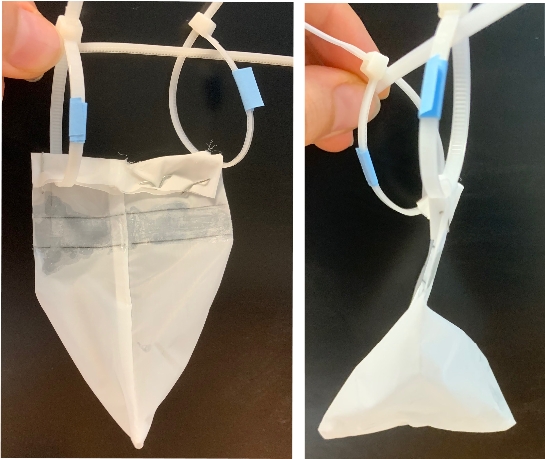

• Attach two Ty-raps to each bag containing microplastics

• Add an additional Ty-rap around all the Ty-raps within a sample group (e.g., all bags containing the same plastic type for a specific site) It makes the samples easier to manipulate on-site

• Attach groups of bags on the upper grid of the oyster cage using Ty-raps

INCUBATION

• Securely fasten the oyster cage to an exposed surface, ensuring that the bottom of the bags reaches the appropriate depth
• Allow the microplastics to incubate for the appropriate amount of time

MICROPLASTICS AND SURROUNDING SEAWATER COLLECTION

• Remove the oyster cage from water

• Collect the bags in sterile boxes along with surrounding water Avoid removing bags from water to minimize stress on microorganims

• Collect three separate 1-liter samples of the surrounding water using sterile glass bottles

• Transport the samples to the lab in a cooler with ice packs

• Store the samples at 4°C until further processing

EXTERIOR BAG WASHING

Objective: to prevent planktonic material introduction in collected samples

• Scrap the external surface of the bag using a sterile blade
• Rinse the bag thoroughly with 50 mL of reconstituted Instant Ocean, using a 50 mL syringe to eliminate all external debris

PLANKTONIC PARTICLE RELEASING

Objective: Separate all particles smaller than 25 µm from the bag and reduce the number of microorganisms not associated with microplastics.

• Pour 250 mL of Instant Ocean into the bottom of a sterile pipette tip box

• Immerse the bag in the bath

• Move the bag in the bath with 10 back-and-forth movements.

• Transfer the bag to a second 250 mL bath and repeat the back-and-forth movements

• Transfer the bag to a third 250 mL bath and repeat the back-and-forth movements

• Use a 50 mL syringe filled with Instant Ocean to rinse the external surface of the bag, concentrating the microplastics at the bottom. At each step, avoid placing the bag on a contaminated surface

BAG CONTENT RESUSPENSION

• Above a sterile 50 mL Falcon tube, make a cut in the bag below the sealed line, approximately 3 cm from the bottom
• Transfer the liquid content of the bag into sterile 50 ml Falcon tube
• Cut the bag vertically down the middle
• Rince each cut segment above the tube using 10 mL of Instant Ocean

RESUSPENSION OF MICROPLASTICS IN STERILE SEAWATER

• Discard the nylon bags

• Plug a Connector Ring on a new 50 mL falcon tube and add a PluriStrainer Mini cell strainer - Mesh Size 20 µm on it

• Pour the microplastic suspension onto the PluriStrainer Mini cell strainer The microplastics and their associated biofilms are kept on the strainer while planktonic bacteria are eliminated through the mesh

• Invert the PluriStrainer Mini cell strainer and attach it to a new sterile 50 mL Falcon tube. The microplastics are retained beneath the mesh, inside the Falcon tube

• Rinse the mesh with 6 mL of Instant Ocean to resuspend the microplastics

• Collected microplastics and their associated biofilms are ready for downstream analysis

ESTIMATION OF MICROPLASTIC CONCENTRATION & VISUAL CHECKING FOR COLONIZATION

Objective: Quantify a potential leakage of microplastics and obtain an accurate estimate of microplastics concentration for subsequent experiments. Ensure homogenous distribution of microplastics on and around the Malassez grid before commencing the counting process.

• Thoroughly shake the Falcon tube to homogeneize the microplastics resuspension
• Pipet 10 µL of the resuspended microplastics and dispense it onto a Malassez cell. Place a coverslip onto the slide
• Count the total number of microplastics in 10 squares of the Malassez cell at the appropriate objective
• Multiply the count by 10,000 to obtain an estimate of the microplastic concentration per milliliter
• Calculate the mean and standard deviation over 3 independant estimations to obtain the total number of microplastics recovered per milliliter

Objective: Characterize planktonic bacterial communities composition at incubation site

• Connect a filter funnel to a vacuum source. If available, employ a multi-branch filtration system to simultaneously filter water samples

• Place a 0.2 µm polycarbonate filter membrane on the filter funnel using sterile tweezers

• Filter 1 liter of seawater collected at incubation site If the membrane becomes clogged, consider filtering 2 x 500 mL of seawater using different membranes.

• With sterile tweezers, transfer the membrane and place it in a 2 mL Eppendorf tube or bead-beating tube for subsequent DNA extraction

• Label the tube and store it at -20°C for later DNA extraction

• Discard the filtered water down the sink
