IRIS Software Protocol

Make sure that the IRIS dump is present in the work directory.

Download the iris dump and place it in a 'data/' folder in your work directory. It is not required to unzip the archive.

This step will create a version of the OpenCitations Meta dump that is transformed and filtered according to the elements in the IRIS dump. This new dataset is stored in a parquet format that makes it lean and fast to query.

If you want to skip the creation of the dataset, you can download the final dataset here

Download the meta dump and place it in the 'data/' folder in your work directory.

The purpose of this step is to read each CSV file in the Meta dump and process it by applying the following operations:

1. Select the [' id ', ' title ', ' type '] columns

2. Extract from the ' id ' column the omid , and the doi, isbn and pmid if present through a regex pattern search. These 4 different elements are inserted into a new column created for each.

3. Create a new ' id ' column by combining the ' doi ', ' isbn ', and ' pmid ' columns, preferring the first non-null value.

4. Get rid of the ' doi ', ' isbn ', and ' pmid ' columns

5. Remove null values from the new 'id ' column

6. Perform an inner join with the dois_isbns_pmids dataframe

   Note

   The dois_isbns_pmids dataframe is created before the manipulation of the first Meta dump file. It contains all valid DOI, ISBN and PMID present in the IRIS dump, along with their iris_id identifier.

7. Write the resulting dataframe to a .parquet file.

You can perform this step by using the following command:

python3 create_datasets.py -meta <path_to_meta_zip> -iris <path_to_iris_zip> --iris_in_meta

Citation

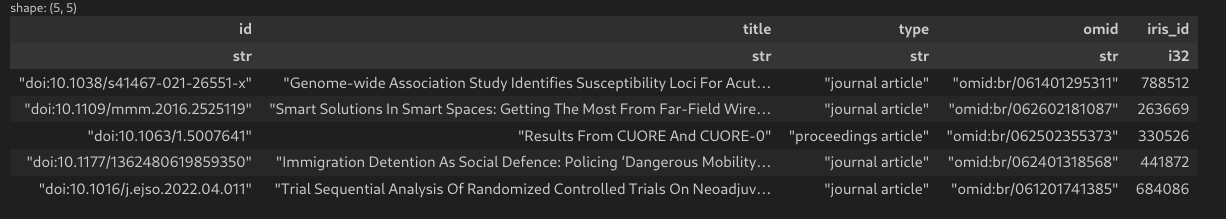

After the program has finished processing all the files, a 'iris_in_meta' folder should have appeared in 'data/'. The dataset should have the following shape:

It is also possible to attempt to retrieve and enrich the Iris in Meta dataset with the identifiers of the elements in the IRIS dump that do not have any DOI, ISBN, or PMID. This is done by querying the OpenCitations Meta SPARQL endpoint to search for each entitity by their title.

From our tests this optional step was able to retrieve 150 additional entities.

This is an optional step. This step has not been performed in the presented state of our research as its result can vary and it could lead to reproducibility incongruences.

We decided to report this only for completeness' sake.

python3 create_datasets.py -meta <path_to_meta_zip> -iris <path_to_iris_zip> --search_for_titles

This step will create a version of the OpenCitations Index dump that is transformed and filtered according to the elements in the Iris in Meta dataset. This new dataset is also stored in a parquet format.

If you want to skip the creation of the dataset, you can download the final dataset here

Download the index dump and place it in the 'data/' folder in your work directory.

The purpose of this step is to read all archives containing the CSV files of the Index dump and process it by applying the following operations:

1. Select the [' id ', ' citing ', ' cited '] columns

2. Filter the Dataframe to keep all rows that have, either in the 'cited' or ' citing ' an id that is present in the omids_list Dataframe.

   Note

   The omids_list Dataframe contains a list of all the omid identifiers present in the Iris in Meta dataset.

3. Write each dataframe to a .parquet file.

You can perform this step by using the following command:

python3 create_datasets.py -meta <path_to_meta_zip> -iris <path_to_iris_zip> -index <path_to_index> --iris_in_index

Citation

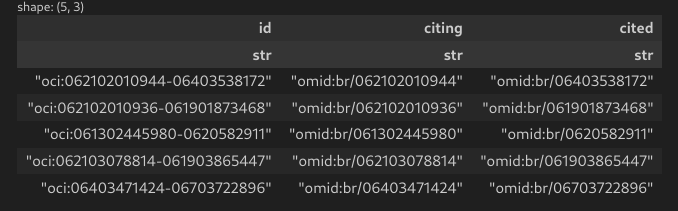

After the program has finished processing all the files, a 'iris_in_index' folder should have appeared in 'data/'. The dataset should have the following shape:

Each substep in this step will explain the answering process of each of the research questions mentioned in the abstract of this protocol.

You can decide to run the code for answering to a specific RQ by specifying it in the command used to run the script. It is also possible to answer all research questions at once by not specifying a specific one to the script, like so:

python3 answer_research_questions.py

RQ1: What is the coverage of the publications available in IRIS, that strictly concern research conducted within the University of Bologna, in OpenCitations Meta?

This research question is answered by simply computing the length of the Iris in Meta dataframe.

You can run the code to answer to this research question using the following command:

python3 answer_research_questions.py -rq 1

RQ2: What are the types of publications that are better covered in the portion of OpenCitations Meta covered by IRIS?

This research question is answered by grouping the Iris in Meta dataframe by the ' type' column and then counting the length of the resulting dataframe.

You can run the code to answer to this research question using the following command:

python3 answer_research_questions.py -rq 2

RQ3: What is the amount of citations (according to OpenCitations Index) the IRIS publications included in OpenCitations Meta are involved in (as citing entity and as cited entity)?

This research question is answered by simply computing the length of the Iris in Index dataframe.

You can run the code to answer to this research question using the following command:

python3 answer_research_questions.py -rq 3

RQ4: How many of these citations come from and go to publications that are not included in IRIS?

This research question is answered by filtering each ' citing ' and ' cited ' column of the Iris in Index dataset to remove all rows in which elements from the aforementioned omids_list are present. The length of each of the two resulting dataframes are then computed to get the final answer.

You can run the code to answer to this research question using the following command:

python3 answer_research_questions.py -rq 4

RQ5: How many of these citations involve publications in IRIS as both citing and cited entities?

This research question is answered by filtering the Iris in Index dataset to keep only the rows in which elements from the aforementioned omids_list are present in either the ' citing ' or in the ' cited ' columns. The length of the resulting dataframe is then computed to get the final answer.

You can run the code to answer to this research question using the following command:

python3 answer_research_questions.py -rq 5
